Three Enchi/3nh HG268 Three-angle Glossmeter Measurement angle is 20 °/60 °/85 °

SE
20 °/60 °/85 ° three angles; large color screen 3.5 inches, can display 5 sets of Gloss measurement data at the same time; Automatic calibration; suitable for leather, Hardware, Automotive, Plastic, Plastic, Jade, Stone and other industries.
Model：
Certificate
Contact
Details SPEC Con VIDEO CAT OI
Similar products

3NH HG268 GlossmeterSPEC

3NH HG268 GlossmeterDetails

3NH HG268 GlossmeterPacking list

SKU
NB001323
Geometry
20°/60°/85°
Measuring range
0~2000GU (20 °); 600~1000GU (60 °); 0~160GU (85 °)
Repeatability
±0.1GU；±0.2GU；±0.2%
Reproducibility
0.2GU|0.5GU|0.5%
Measuring Areas
9*15mm
Error of indication
±1.5,±1.5%
Division Value
0.1GU
Standards
ISO 2813、GB/T 9754、ASTM D 523、ASTM D 2457
Data Interface
USB interface, RS-232
data storage
Basic mode 1000 items
Display
TFT true color 3.5inch display
Operating language
Simplified Chinese, English
Dimensions
160*75*90mm
Weight
About 350g
Power
3200mAh lithium battery, more than 10,000 times in 8 hours
software
GQC6 quality management software (some models of instruments do not come with PC software)
Accuracy
Meet the requirements of JJG 696 secondary working glossiness instrument
Chromaticity Response
Under CIE C light source, CIE 1931 (2 °) luminosity corresponds
Measurement time
0.5s
Operating Temperature
0~40℃
Storage temperature
-20~50℃
Relative Humidity
< 85% RH, no condensation
Standard accessories
Power adapter, data cable, CD-ROM, manual, wipe cloth, calibration standard board
Optional accessories
Micro printer
HG268
Glossmeter
20 °/60 °/85 ° three angles; large color screen 3.5 inches, can display 5 sets of Gloss measurement data at the same time; Automatic calibration; suitable for leather, Hardware, Automotive, Plastic, Plastic, Jade, Stone and other industries.
Three Enchi/3nh HG268 Three-angle Glossmeter Measurement angle is 20 °/60 °/85 ° Picture

Introduction

3nh/3nh HG268 three-angle gloss meter is a gloss meter with three measurement angles of 20°, 60°, and 85°. It has a large color display screen and can choose a variety of angles for measurement to meet different gloss measurements. The needs of the occasion. HG268 three-angle gloss meter is operated by buttons, adopts Chinese and English bilingual operating languages, and has a menu-based operation interface, which is easy and convenient to operate. In addition, HG268 three-angle gloss meter is equipped with computer software to operate and manage the data.

Features and advantages

1. HG268 three-angle gloss meter is a gloss meter with a 3.5-inch super large screen display.

2. There are three measuring angles: 20°60°85°.

3. HG268 three-angle gloss meter has a built-in rechargeable battery, which is environmentally friendly and has a long service life.

4. Automatic shutdown function to save power consumption.

5. Comply with standards ISO 2813, ASTM D 523, GB/T 9754, ASTM D 2457.

6. The simple and elegant appearance design is well combined with the ergonomic structure design.

7. Five groups of measurement data are displayed at the same time for easy comparison.

8. Flexible selection of auto-calibration at startup, easy and convenient operation.

9. The PC-side quality management software of HG268 three-angle gloss meter has powerful extension functions.

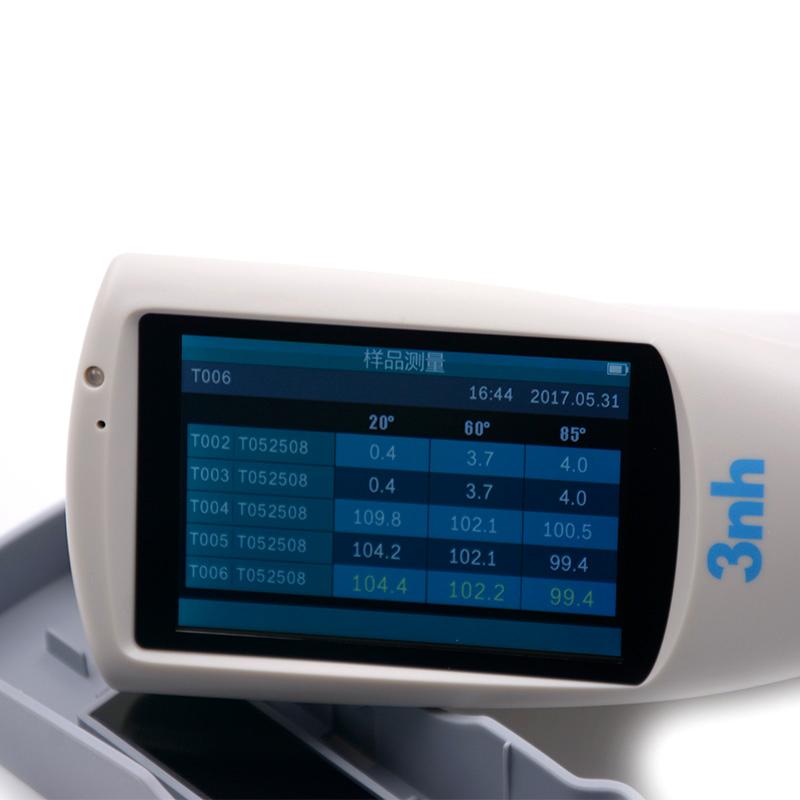

Product Measurement Interface

Measuring interface of HG268 three-angle gloss meter

Application

HG268 three-angle gloss meter is suitable for leather, hardware, automobile, plastic, plastic, jade, stone and other industries.

GQC66 upper computer software function

GQC66 is the host computer software matched with the HG268 three-angle gloss meter , which is used to connect and measure with the PC. After connecting the HG268 three-angle gloss meter to the host computer software, the operation functions of the host computer for the gloss meter include: modify calibration Value; measurement; calibration; query status; data management (view records, delete records, export records, print reports) set time and date; angle selection; set language; set measurement to automatically save records or not.

Pictures

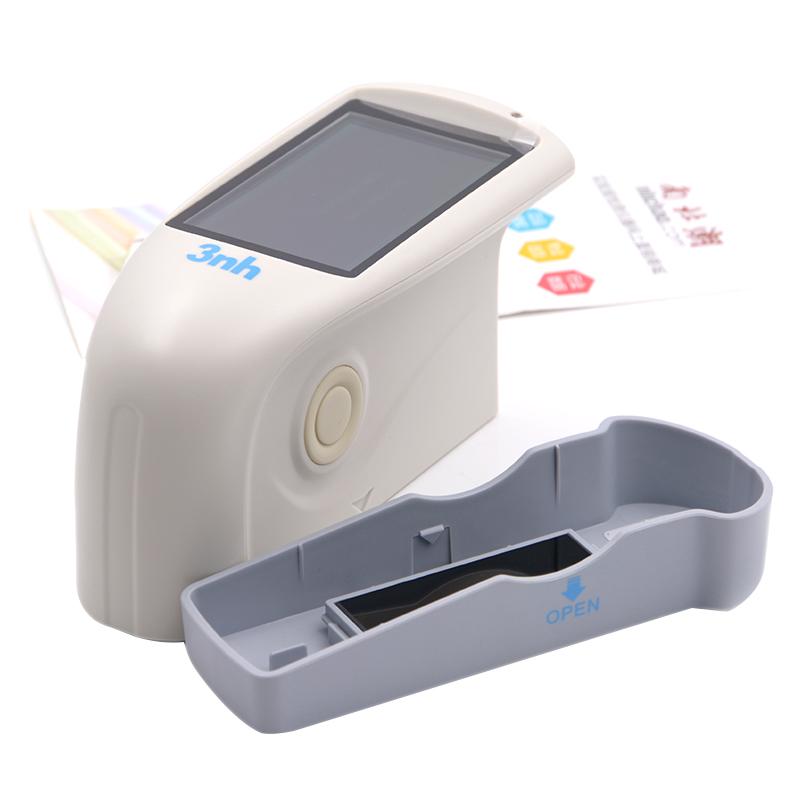

Appearance of 3nh/3nh HG268 three-angle gloss meter

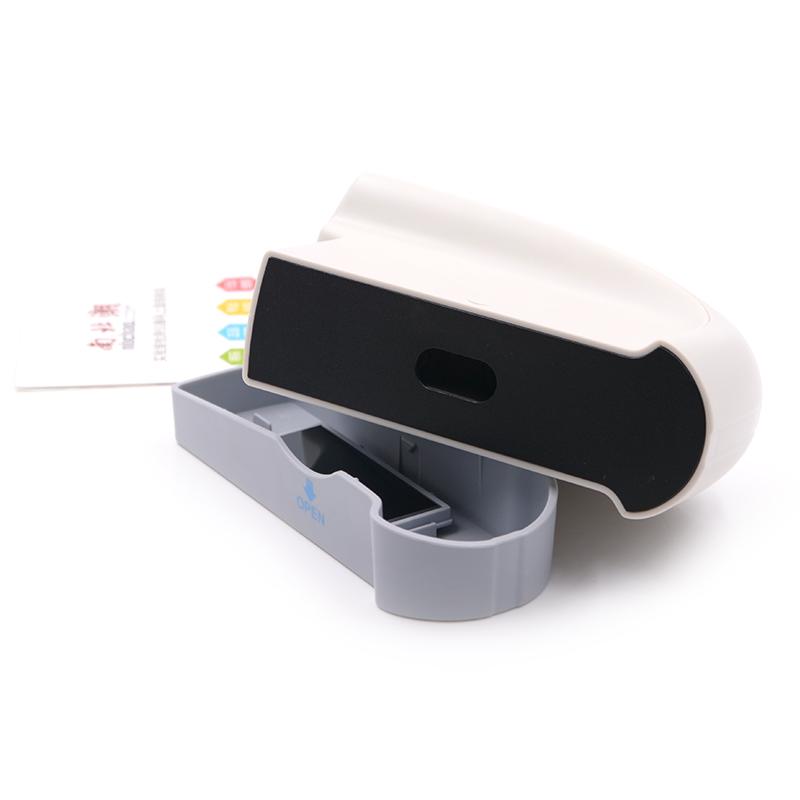

Attentions at the bottom of 3nh/3nh HG268 three-angle gloss meter

Side view of 3nh/3nh HG268 three-angle gloss meter

3nh/3nh HG268 three-angle gloss meter packing list


FAQ
QWhat is the difference between YG60S and HG268?
A YG60S single angle, generally Stone factory, furniture factory measured Stone floor; and HG268 is three angles, lithium battery charging, large color screen, accuracy is also very high.
QCan I use this one to measure the brightness value of the metal surface?
A Yes, this one is three-angle, suitable for medium and high Gloss environment.
QIs there a better Gloss meter suggestion? Wood paint test?
A Hello, this one is suitable.
QWhat are the specific functions of GQC66 Gloss meter software?
A Support to modify calibrated values; measurement; make corrections; query status; data management (view records, delete records, export records, print reports) Set time and date; angle selection; set language; set measurement Automatically save records or not save.
QWhat is the minimum measurement area of this gloss meter? How big is the measurement hole?
A Hello, HG268 is a three-angle Gloss meter, Measuring Area 20 °: 10x10mm, 60 °: 9x15mm, 85 °: 5x36mm.
QIs the HG268 triangle gloss calibrated manually or auto calibrated?
A Hello, this gloss instrument is turned on for auto calibration, and the operation is relatively simple.
QIs this glossmeter compliant with the ASTMD3928 standard?
A This glossmeter is suitable for ASTMD3928. Please consult customer service for detailed application definition.
QResin film surface Gloss, is this Gloss meter suitable?
A Yes, this is a 3-angle gloss meter, which is suitable for medium and high Gloss.
