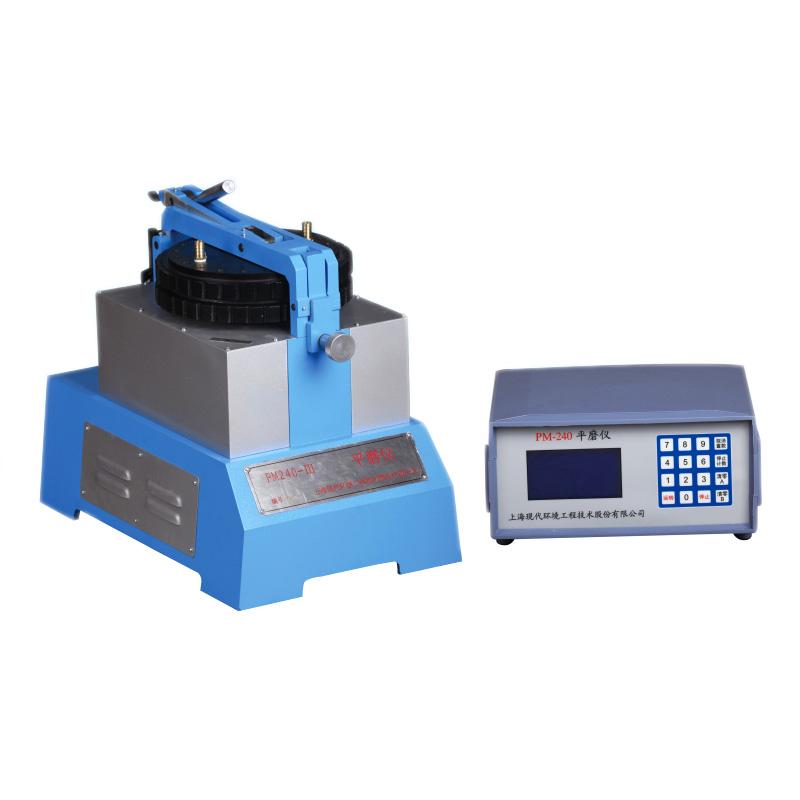

MODERNER PM240-ⅲ (240V) plane grinding machine Disc diameter: 240mm

MODERNER PM240-ⅲ (240V) plane grinding machine is designed according to GB5211.19 standard Coating inks wear performance testing instrument, PM240-ⅲ has 43kg, 46kg, 100kg three different loads, using 240V Voltage.
Certificate
Contact
Details SPEC OI

Moderner PM240-Ⅲ(240V) Plane grinding machineSPEC

Moderner PM240-Ⅲ(240V) Plane grinding machineDetails

Moderner PM240-Ⅲ(240V) Plane grinding machinePacking list

SKU
NB013254
Rotation speed
75±5rpm
Power
240V 50 Hz (220V can be customized)
Dimensions
580*360*480mm
Weight
Approx. 80kg
Grinding disc diameter
240mm
load pressure
43/65/100kg
Count range
0~9999
Count range
0~9999
PM240-Ⅲ(240V)
Plane grinding machine
MODERNER PM240-ⅲ (240V) plane grinding machine Disc diameter: 240mm Picture

Introduction

MODERNER PM240-Ⅲ (240V) flat Grinder is the required instrument in the national standard GB5211.19 "Visual Comparison Method for Determination of Relative Tinting Power and Diluted Color of Colored Pigments".

PM240-Ⅲ can be used as a special physical performance testing instrument for the pigment, coating, and ink industries. The whole machine has a compact structure, simple appearance, convenient rotation and load changes, and easy assembly and disassembly of the glass plate. It adopts microcomputer control, LCD display, and convenient parameter setting. When the input parameters are incorrect, the controller will automatically display "invalid input", achieving the purpose of reliable control and simple operation.

application standards

1. GB/T5211-16, GB/T5211-19, GB/T21867.1, GB/T21868.5

2. ISO 787-16, ISO 787-17 , ISO 8780-5 , ISO 8781-1

plan

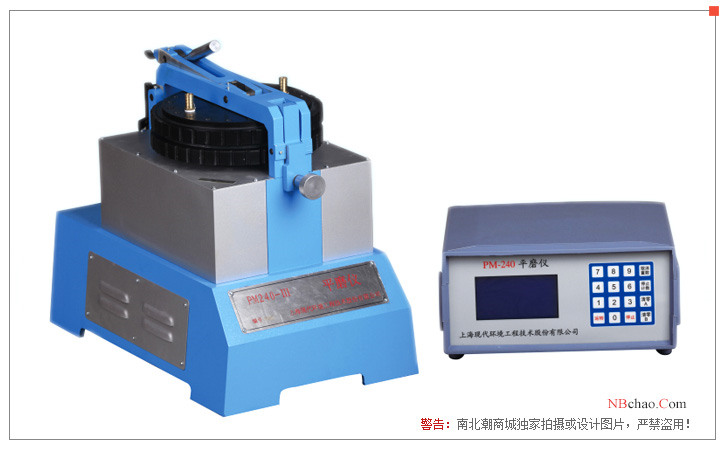

MODERNER PM240-Ⅲ (240V) flat Grinder display diagram

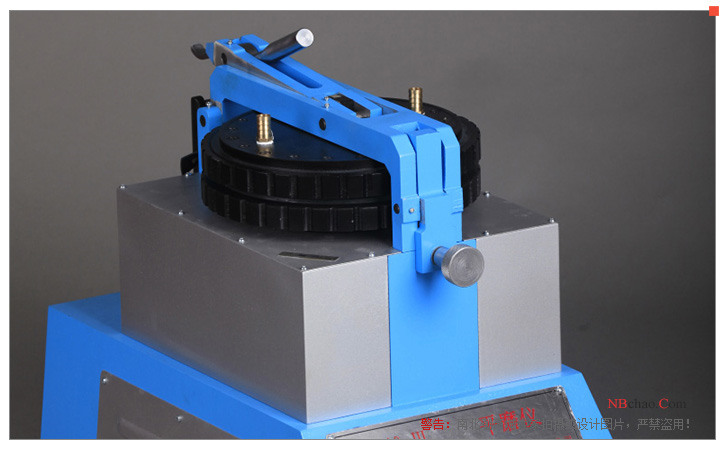

Detailed view of MODERNER PM240-Ⅲ(240V) flat Grinder

FAQ
QIs there an abrasion measuring instrument to detect the abrasion of pigments? Can it measure pigments?
A This one is ok.
QCan this MODERNER plane grinding machine correspond to GB/T21868.5?
A Yes, please refer to the NBchao standards page for specific standards.
