3NH NHG60M gloss Measurement Instrument 60 degree microporous precision gloss Measurement Instrument

NHG60M

Glossmeter

60 degree microporous precision gloss measurement; TFT true color 3.5inch display, capacitive touch screen, while displaying 5 sets of measurement data; GQC6 quality management software; in line with international first-class standards.

NHG60M Introduction

Sannchi/3nh NHG60M Gloss Meter is a precision gloss measuring instrument with a relatively small measuring aperture. The size of the measuring spot is about 1.5x2mm. It is a gloss meter with a full touch menu operation interface for measuring Paint The surface gloss of the paint film layer. NHG60M Gloss Meter has three Operating Modes to meet the different needs of different users in measuring coating gloss. It is a high-quality gloss meter that meets national and international standards.

NHG60M features and advantages

1. The appearance design of NHG60M gloss meter is fashionable and beautiful, which is well combined with ergonomics.

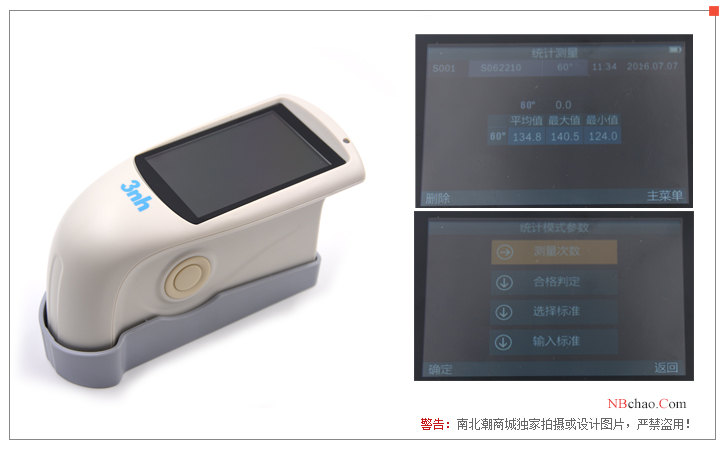

2. The gloss measuring instrument has four measurement modes: basic measurement, statistical measurement, continuous measurement, and quality control measurement, which can meet various application occasions.

3. NHG60M is equipped with a large color display, which can display 5 sets of test data at the same time, and the gloss value can be input manually.

4. The hardware configuration is of high quality and incorporates a number of innovative technologies.

5. NHG60M Gloss Meter has an automatic shutdown function to save power.

6. The instrument conforms to the standards ISO2813, ASTMD523, GB/T9754, ASTMD2457.

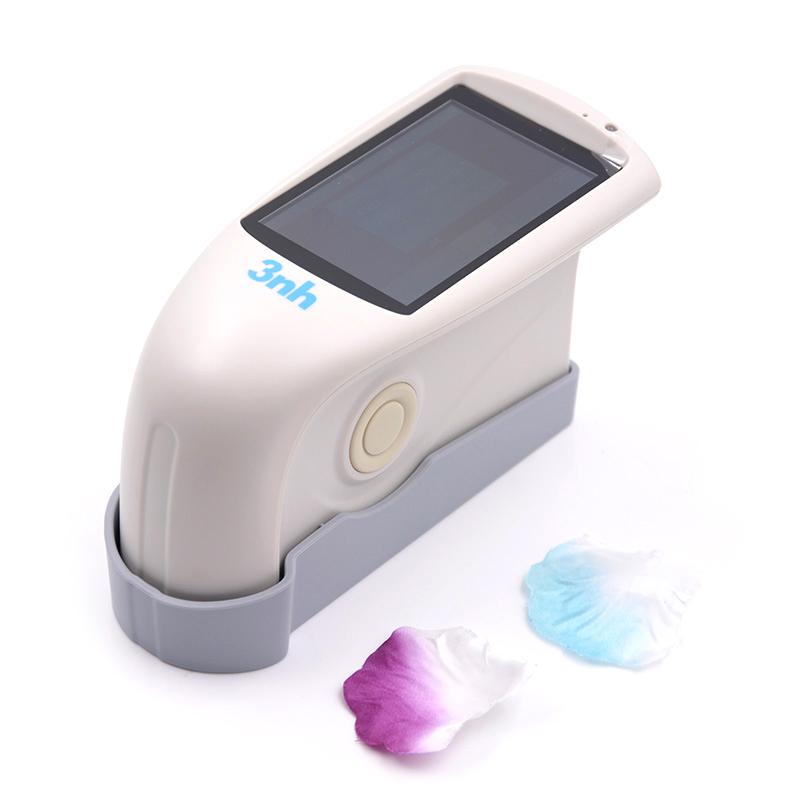

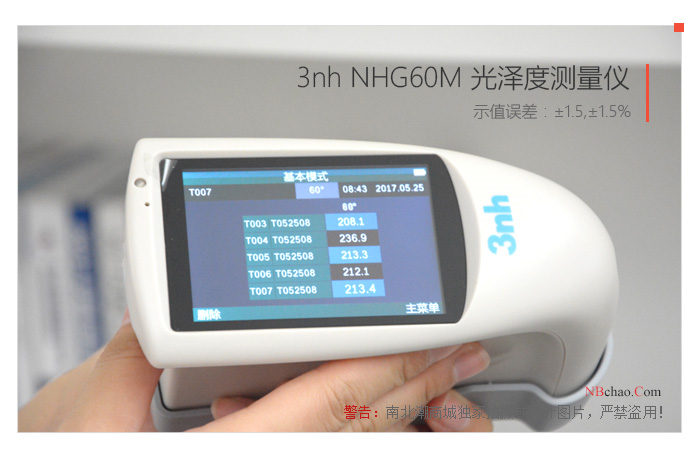

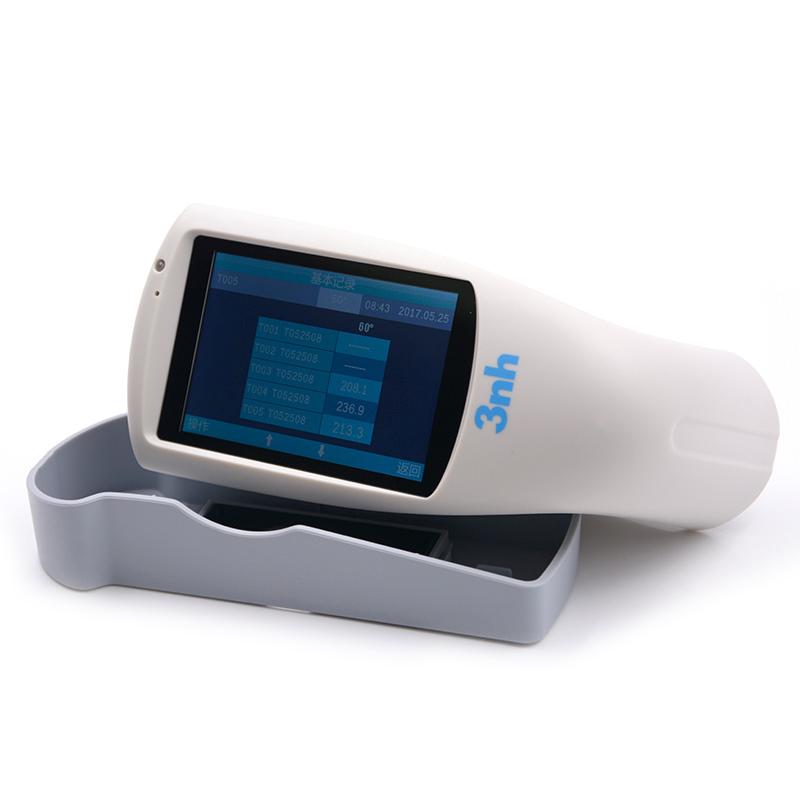

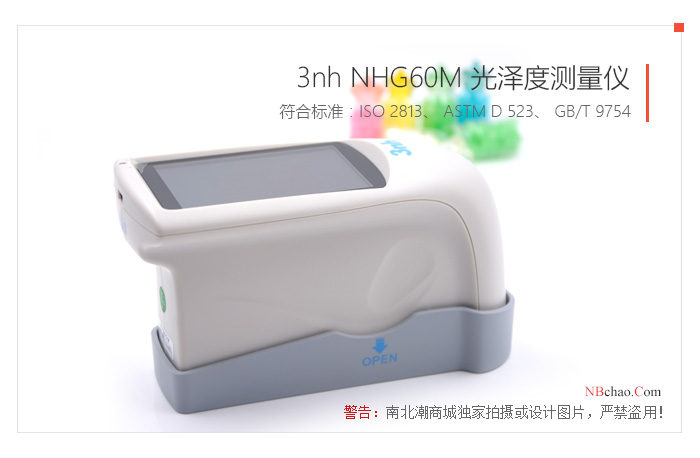

NHG60M product real shot

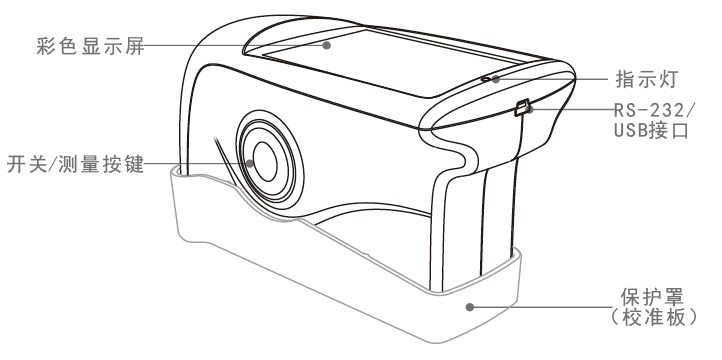

NHG60M product structure

Switch/measurement button: long press for 3 seconds to power on or off; short press for measurement.

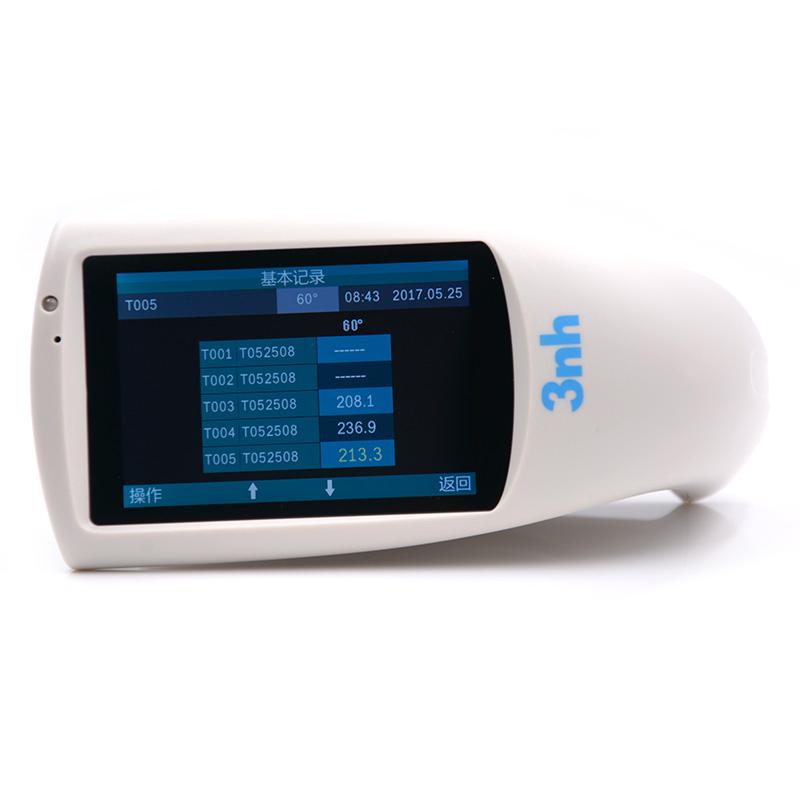

Color display: Display measurement data, NHG60M gloss meter operation navigation.

Indicator light: The green light is on when the machine is powered on, and the light is off when the power is completed; the red light is on for warning when the battery is insufficient; the red light is always on during charging, and the green light is always on when fully charged.

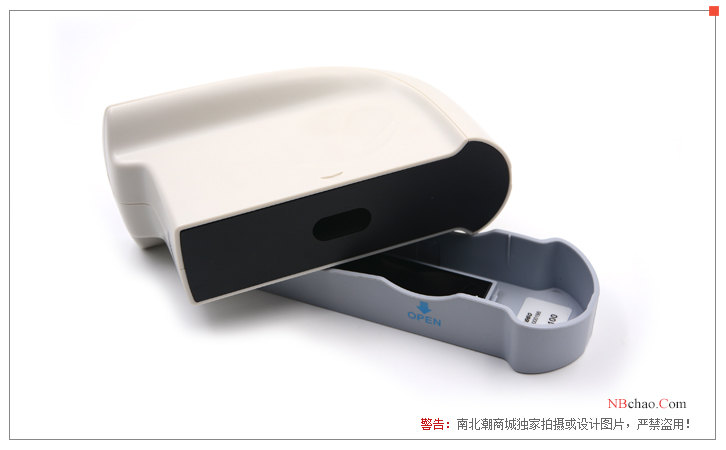

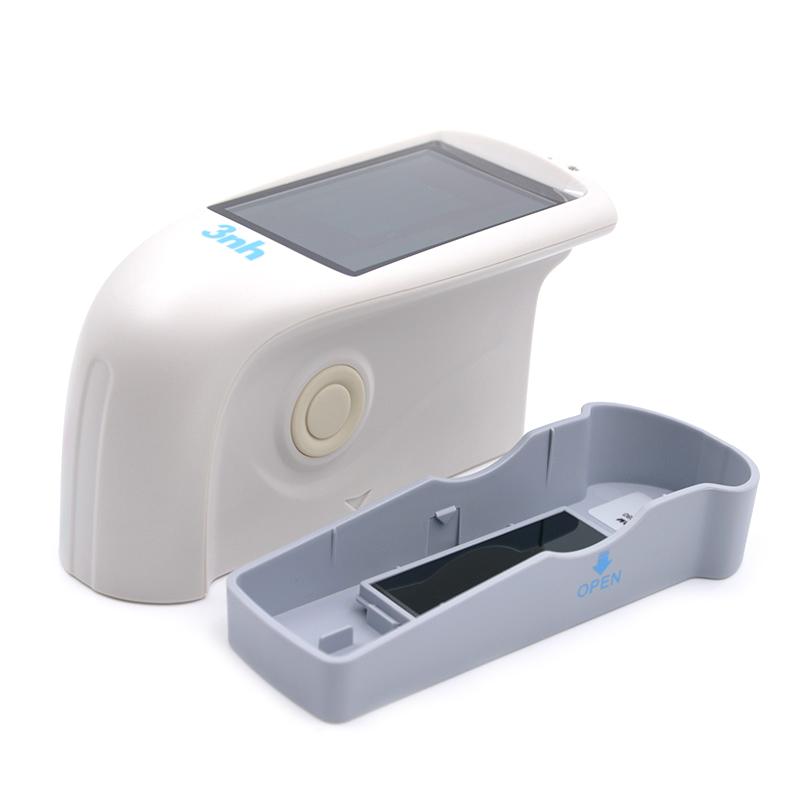

Protective cover (calibration plate): the protective cover of the measuring caliber; the built-in calibration plate is used for the calibration of the NHG60M gloss meter .

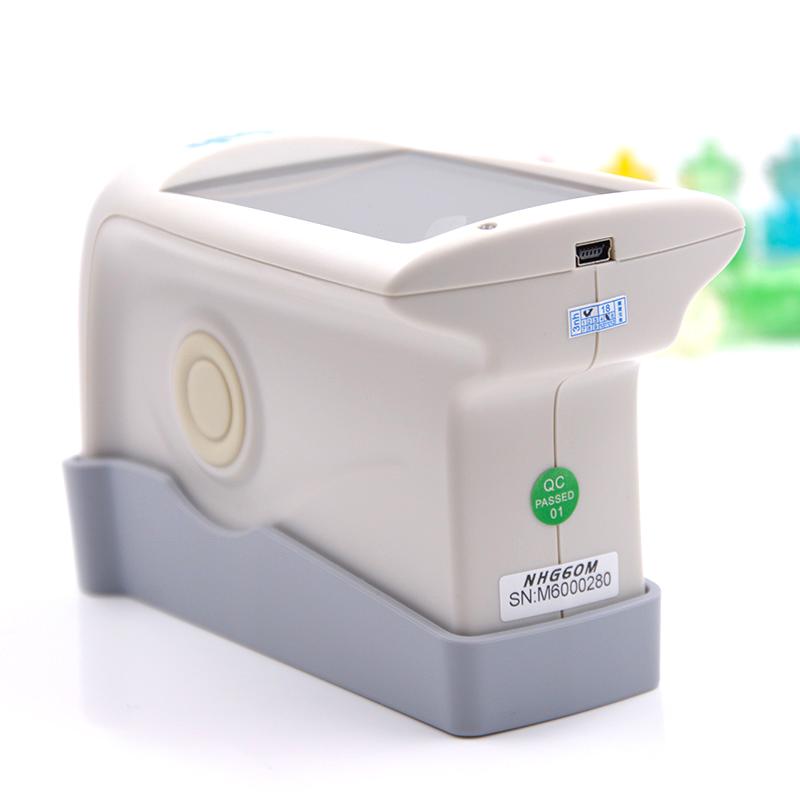

RS-232/USB interface: This interface is a common interface, and the NHG60M gloss measuring instrument automatically judges the connection. The USB interface is used to communicate with the PC, and the RS-232 interface is used to connect the printer; the USB cable is connected to the power adapter and PC, and the NHG60M gloss meter can be plugged into the NHG60M gloss meter to charge the NHG60M gloss meter (the specification of the external power adapter is 5V2A ).

NHG60M maintenance method

1. The NHG60M Gloss Meter is a precision instrument, so it should be used and stored in an environment with high humidity, strong electromagnetic interference, dust, and strong light.

2. It is recommended that the environment for storing the gloss measuring instrument is a standard laboratory environment (temperature 20 degrees Celsius, 1 standard atmospheric pressure, humidity 50~70%RH).

3. The standard plate is a precision optical component, so avoid bumping, dirtying the working surface, and avoiding exposure to strong light.

4. The standard board should be wiped clean regularly with a soft cloth dipped in alcohol.

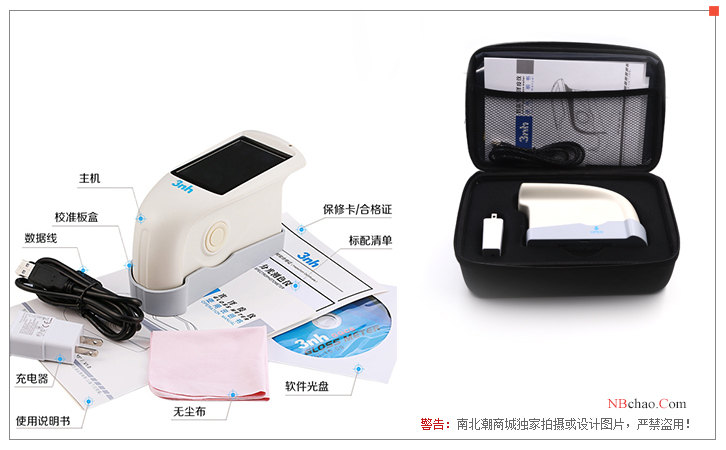

Packing list：host x1, charger x1, USB data cable x1, dust-free cloth x1, manual x1, warranty card x1, CD x1, correction standard box x1.

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
