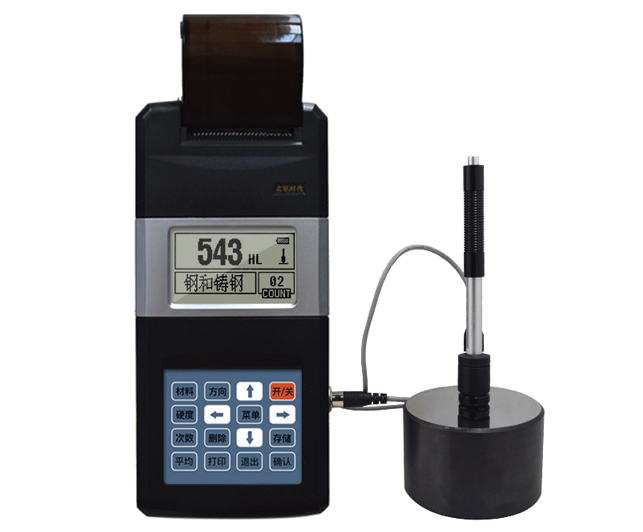

TIMES TH120 Portable Leeb Hardness Tester high-precision military grade original dot matrix printer

TH120

Leeb Hardness Tester

Introduction

●Installed mechanical or permanently assembled components.

● Mold cavity.

● Heavy-duty workpieces.

●Failure analysis of pressure vessels, steam turbine generator sets and their equipment.

●Workpieces with a tight measurement space.

●Bearings and other parts.

●Material division of metal material warehouse.

●Rapid inspection of multiple measuring parts in a large range of large workpieces.

Features

● Effective dot matrix printer handwriting does not disappear.

●The repetition rate of measurement data in the military-grade data integration system is very high.

●The high-brightness LED display is still clear in strong light.

●The integrated die-cast plug and socket for industrial use are sturdy and durable.

●Effective lithium-ion battery has no memory and can be charged at any time, with long life.

●Conversion between 6 hardness (HL, HRB, HRC, HB, HV, HS) and tensile strength can be realized.

●The main machine can be equipped with 7 kinds of impact devices, which do not need to be recalibrated when replaced, and the type of impact device can be automatically identified.

●Information such as measured value, average value, date, impact direction, number of measurements, test material, hardness value and so on can be displayed.

●It has the function of charging indication and low Voltage alarm.

●It has the function of soft calibration of indication value.

Pictures

Packing list：Host (including printer) X1, D-type Impact device X1, small support ring X1, nylon brush X1, random Richter Hardness block (HLD value) X1, charger X1, password Encasement box X1, manual X1, certificate X1, warranty card X1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
