JFL QXD 0-25 double-channel Grindometer 10 μm Graduation

The QXD 0~25μm Grindometer produced by JFL has 2 grooves, the maximum fineness range is 25μm, and the sub-scale is 5μm. The QXD Grindometer is made of cemented carbide steel, which is resistant to abrasion. It is a special tool for colorants, paints, raw materials, granules, and nano-fineness detection.
Model：
Certificate
Contact
Details SPEC VIDEO CAT
Similar products

JFL QXD 0-25 Grindometer (double-channel)SPEC

JFL QXD 0-25 Grindometer (double-channel)Details

JFL QXD 0-25 Grindometer (double-channel)Packing list

SKU
NB001329
Scraper type
double-channel
Number of grooves
2
range
0~25μm
Scale unit
μm
scraper material
Carbide steel
Scraper size
155*50*13mm
Groove size
13*120mm
Drawdown blade size
68*40*6.5mm
Applicable standards
GB/T 1724-93、GB/T 13217.3-91
Net Weight
0.9kg
Graduation
2.5μm
QXD 0-25
Grindometer (double-channel)

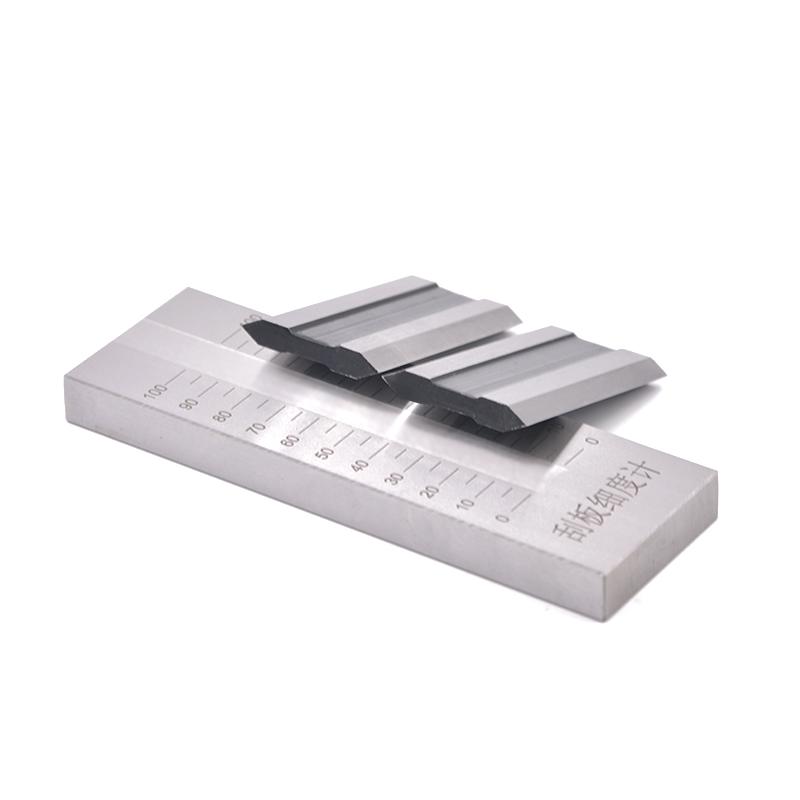

JFL QXD 0-25 double-channel Grindometer 10 μm Graduation Picture

Introduction

Jinfulun QXD 0-25/50/100/150 Fineness Meter is a QXD double-slot fineness scraper meter for detecting particle fineness . It uses hard alloy steel with good wear resistance and hardness, which is not easy to wear. The QXD Fineness Meter is produced in strict accordance with the requirements of the "Scraper Fineness Meter" of the Ministry of Chemical Industry's special measuring instrument calibration regulations, and meets the standards of GB/T1724-93, GB/T13217.3-91.

The measuring ranges of the QXD 0-25/50/100/150 double-slot fineness scraper gauge are 0-25μm, 0-50μm, 0-100μm, and 0-150μm respectively.

Applications

QXD 0-25/50/100/150 double-slot fineness scraper meter is used to measure the fineness of pigments and impurities in paints and paint slurries. It is used to measure the fineness of dispersed products during production, storage and application. Test and control product quality.

product material

QXD 0-25/50/100/150 double groove fineness scraper gauge is made of carbide steel.

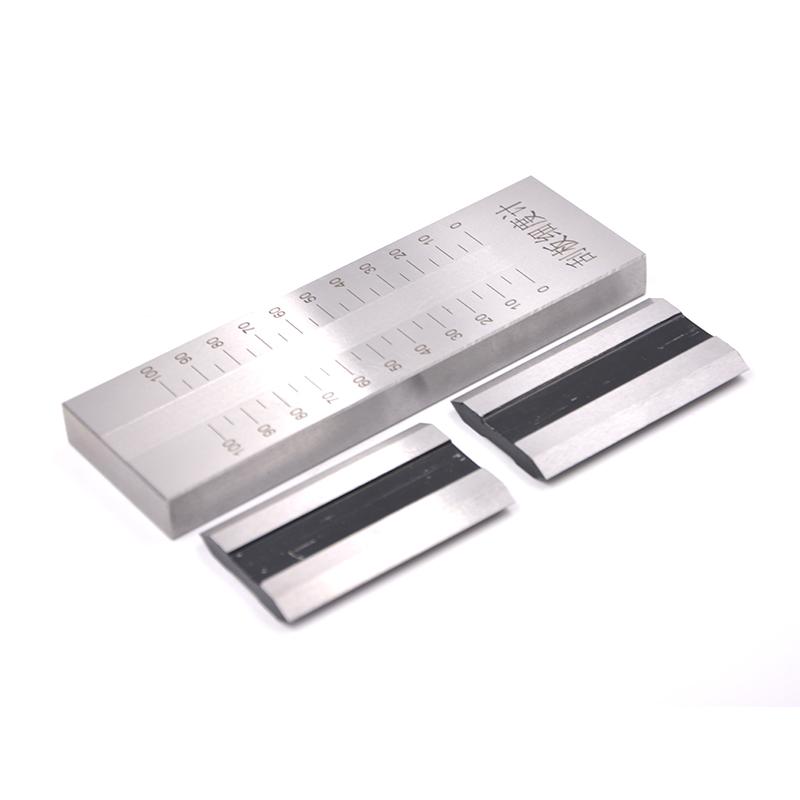

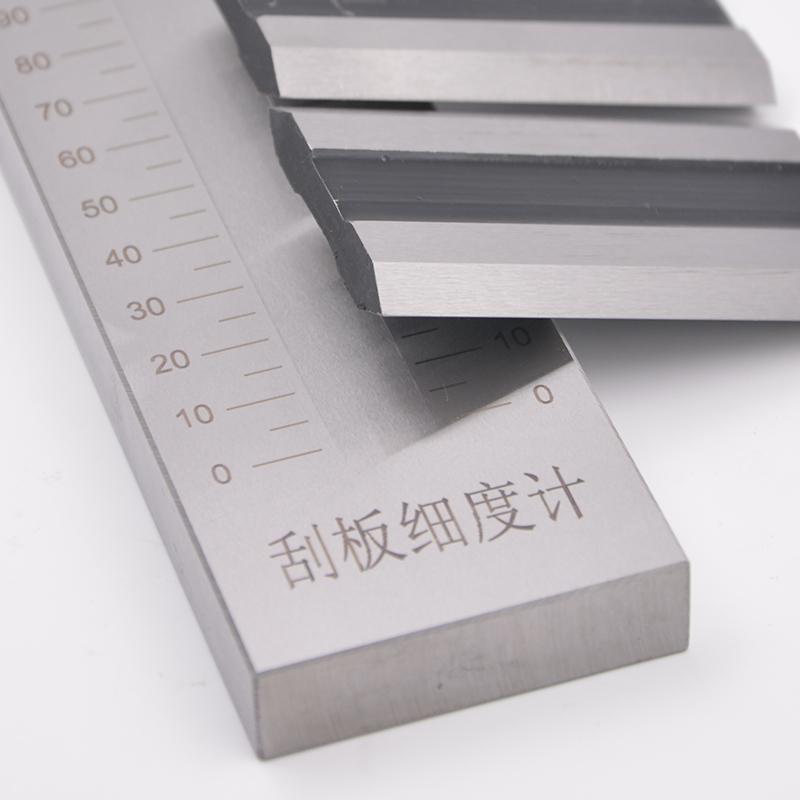

Product actual pictures

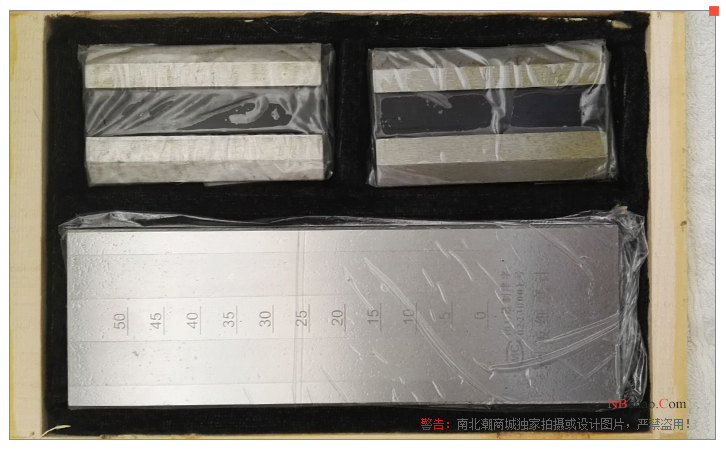

Appearance of Jinfulun QXD 0-25/50/100/150 Fineness Meter

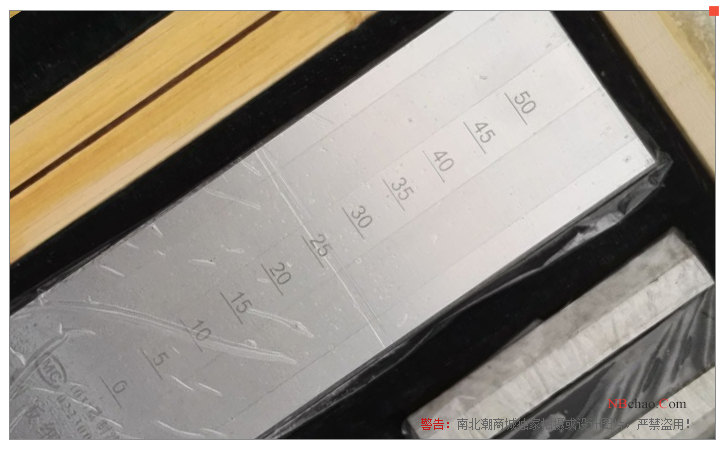

Jinfulun QXD 0-25/50/100/150 Fineness Meter details

FAQ
QQXD stainless steel scraper Fineness meter, 2 paths 0-25um, which model is it?
A Hello, it is the QXD 0-25 model.
QDo you have the Fineness gauge required in the JT/T821.2 standard?
A This QXD 0-25 Fineness gauge will do.
QFineness Measurement of Thermosetting Printing ink Slurry, What Specifications of Scraper Should Be Used?
A Printing ink needs to have a small Fineness, and you need to use the Grinder to grind the coarse material to a reasonable level. If it is to measure the Fineness at this time, it is recommended to buy a 0-25μm or even a smaller Fineness gauge.
