Ultrasonic Thickness Gauge DC-1000C Ultrasonic measurement Film thickness

DC-1000C

Thickness Gauge

Introduction

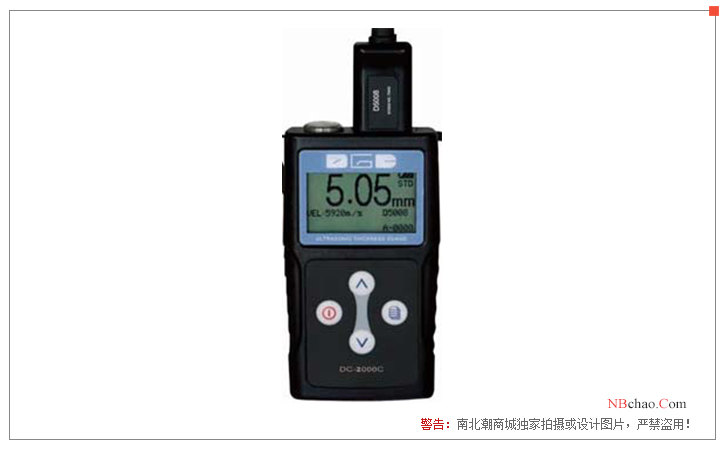

Deguang Electronics DC-1000C Ultrasonic Thickness Gauge is a simple and economical ultrasonic Thickness Gauge. Through the principle of ultrasonic measurement and the Thickness Gauge adopts microprocessor technology, the DC-1000C Ultrasonic Thickness Gauge can be applied to many Thickness measurement of a good ultrasonic conductor material, such as thickness measurement and sound velocity measurement of metal, steel and other materials.

DC-1000C Ultrasonic Thickness Gauge has a measurement range of 0.7mm~400.0mm, has an automatic shutdown function, and can display four-digit measurement data.

product structure

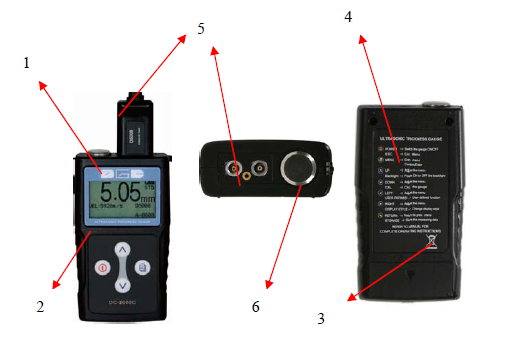

1. The structure of DC-1000C ultrasonic Thickness Gauge includes: LCD panel, keyboard, battery compartment, instrument label, probe socket, identification pin, and calibration test block.

①LCD panel; ②Keyboard; ③Battery compartment (back)

④ Ultrasonic Thickness Gauge label (back); ⑤ Probe socket, identification pin; ⑥ Calibration test block

2. Display digital description

① Measurement symbol

② Battery full/low Voltage display

③ Current speed of sound

④ Current probe model

⑤ Current measurement value and measurement mode

3. Description of the keyboard

The keyboard keys of DC-1000C Ultrasonic Thickness Gauge are as follows from left to right and from top to bottom:

① Power key, return to the measurement interface key

② Instrument menu key

③ Instrument backlight key (under the measurement interface), up key

④ Zero calibration key (under the measurement interface), down key

Probe selection

DC-1000C Ultrasonic Thickness Gauge can be equipped with five different probes (except standard probes, others need to be purchased separately), including: D5008 probe, D5113 probe, D7006 probe, D7004 probe, D2012 probe.

Pictures

Packing list：Host x1, probe (D5008) x1, coupling agent x1, AA battery x2, user manual x1, instrument case x1.

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
