TIMES N1 Coating Thickness Gauge, thickness: 0-1250 (chrome 0-40um on copper)

Model：

Certificate

TIMES

Contact

Details SPEC CAT

TIMES N1 probeSPEC

TIMES N1 probeDetails

TIMES N1 probePacking list

SKU: NB013330

Measurement principle: eddy Current

Measurement range: 0~1250μm

margin of error: One point calibrated (μm ) ： +/- [ 3% H + 1.5], two point calibrated (μm )： +/- [( 1~ 3) % H + 1.5]

resolution: 0.1μm

Minimum measurement surface: Φ5mm

Minimum radius of curvature: 3mm

thinnest substrate: 0.3mm

probe: N1

probe

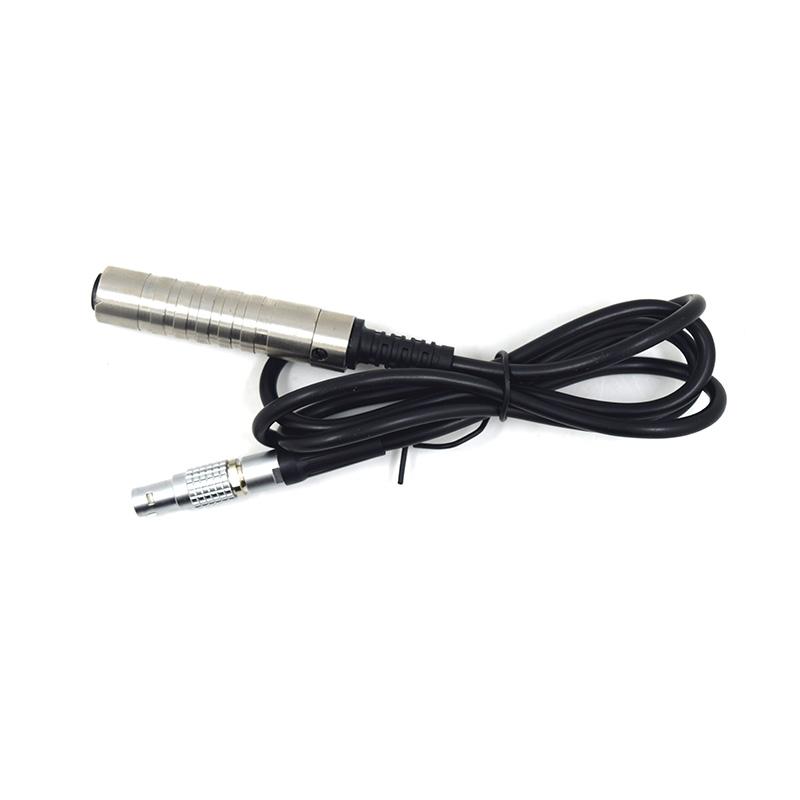

TIMES N1 Coating Thickness Gauge, thickness: 0-1250 (chrome 0-40um on copper) Picture

Times Aerospace N1 Coating Thickness Gauge Probe is an optional probe for TT260 Coating Thickness Gauge, with a thickness measurement range of 0-1250 (0-40um chromium plating on copper) microns, a resolution of 0.1 microns, and a minimum critical thickness of 0.5mm, which is a magnetic probe.

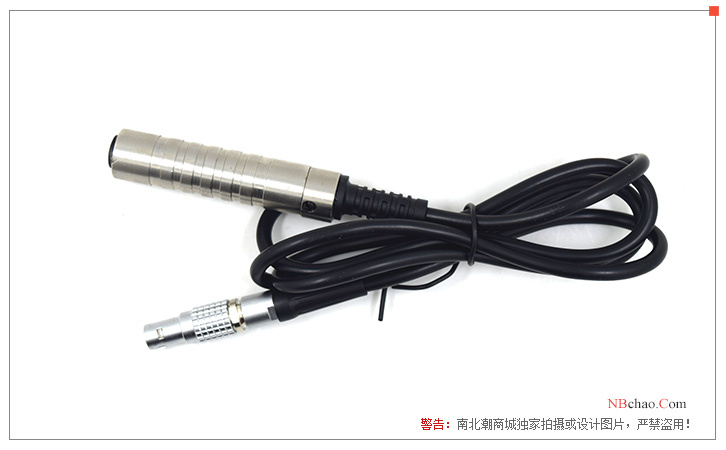

Times Aerospace N1 coating Thickness Gauge probe display diagram

Probe parameter table

Probe model		F400		F1	F1/90	F10	N1		CN02
Operating Principle		magnetic induction					Eddy current
Measuring range (um)		0-400		0-1250		0-10000	0-1250 (0-40um chrome plating on copper)	10-200
Low Resolution (um)		0.1		0.1		10	0.1	1
Indication error	One Point Calibration (um)	±[3%H+1]				±[3%H+10]	±[3%H+1.5]	±[3%H+1]
	Two-point calibration (um)	±[(1～3)%H+0.7]	±[(1～3)%H+1]			±[(1～3)%H+10]	±[(1～3)%H+1.5]	-
Measurement conditions	Minimum radius of curvature (mm)	Convex 1	Convex 1.5		Straight	10	3	Straight
	Diameter of the minimum area of the substrate (mm)	ф3	ф7		ф7	ф40	ф5	ф7
	Minimum Critical Thickness (mm)	0.2	0.5		0.5	2	0.3	Unlimited

FAQ

QIs the price listed on the website the final cost for overseas purchases?

ANo, it isn't. This is the ex-factory price of the product in the Chinese Mainland. In addition to this price, buyers from different countries need to account for additional costs such as shipping fees, tariffs, and others. For specific regional quotes, please consult our customer service or fill out a quotation form.

QWhat is the specific process for purchasing the product?

AFirst, please click on the quotation form on the website and fill in detailed information. Our customer service personnel will then send you a quotation based on your specific country and region, confirming payment and delivery methods. Following this, we proceed with contract signing, payment, and shipment. You can then await delivery.

QWhat should I do if the instrument I purchase needs repair?

AAfter-sales repair for overseas instruments is an unavoidable issue. Our repair terms stipulate that the sender is responsible for the shipping and insurance costs incurred for the repair. Repairs within the warranty period are free, while repair costs beyond the warranty period are determined based on the actual situation.
