TIMES F10 Coating Thickness Gauge: 0~10000um

Model：

Certificate

TIMES

Contact

Details SPEC CAT

TIMES F10 probeSPEC

TIMES F10 probeDetails

TIMES F10 probePacking list

SKU: NB013331

Measurement principle: magnetic Induction

Measurement range: 0~10000μm

margin of error: One point calibrated (μm ) ： +/- [ 3% H + 10], two point calibrated (μm )： +/- [( 1~ 3) % H + 10]

resolution: 10μm

Minimum measurement surface: Φ40mm

Minimum radius of curvature: 10mm

thinnest substrate: 2mm

probe: F10

F10

probe

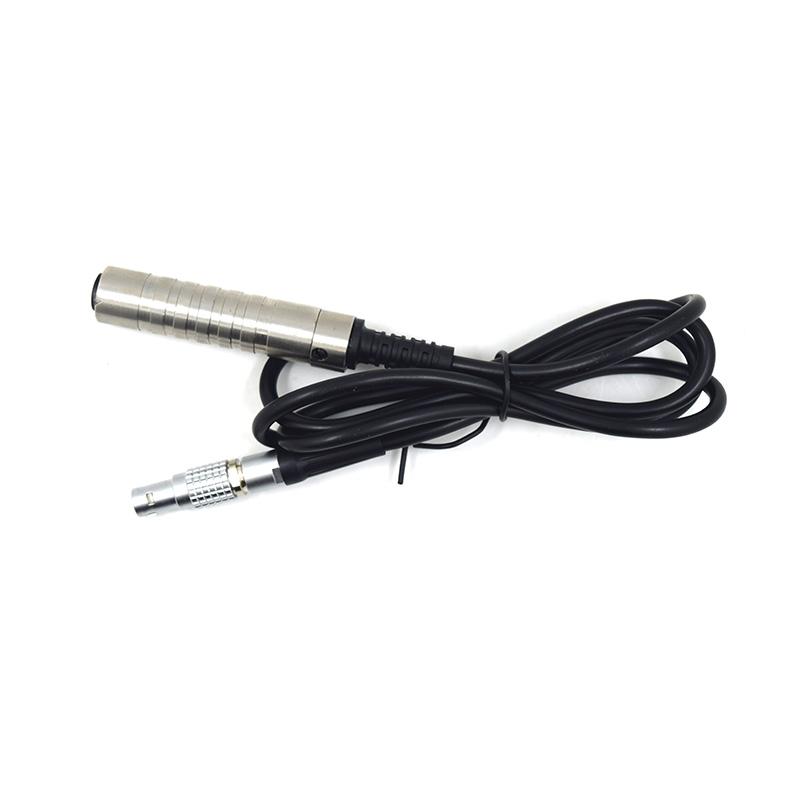

TIMES F10 Coating Thickness Gauge: 0~10000um Picture

Times Aerospace F10 Coating Thickness Gauge Probe is an optional probe for TT260 Coating Thickness Gauge, with a thickness measurement range of 0~10000 microns, a resolution of 10 microns, and a minimum critical thickness of 2mm, which is a magnetic probe.

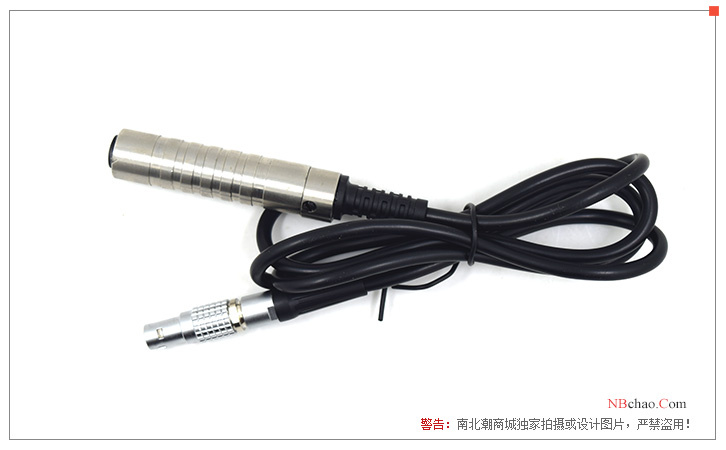

Times Aerospace F10 coating Thickness Gauge probe display diagram

Probe parameter table

Probe model		F400		F1	F1/90	F10	N1		CN02
Operating Principle		magnetic induction					Eddy current
Measuring range (um)		0-400		0-1250		0-10000	0-1250 (0-40um chrome plating on copper)	10-200
Low Resolution (um)		0.1		0.1		10	0.1	1
Indication error	One Point Calibration (um)	±[3%H+1]				±[3%H+10]	±[3%H+1.5]	±[3%H+1]
	Two-point calibration (um)	±[(1～3)%H+0.7]	±[(1～3)%H+1]			±[(1～3)%H+10]	±[(1～3)%H+1.5]	-
Measurement conditions	Minimum radius of curvature (mm)	Convex 1	Convex 1.5		Straight	10	3	Straight
	Diameter of the minimum area of the substrate (mm)	ф3	ф7		ф7	ф40	ф5	ф7
	Minimum Critical Thickness (mm)	0.2	0.5		0.5	2	0.3	Unlimited
