Non-destructive Thickness Gauge DC-2000C Deguang electronic measurement of metal materials and other Film thickness

SE
The DC-2000C non-destructive Thickness Gauge is an Ultrasonic Thickness Gauge with a measuring range of 0.65mm~ 400.0mm. The DC-2000C non-destructive Thickness Gauge has an automatic shutdown function, which is convenient to use and easy to operate.
$680.00/set
PromotionLoading...
Coupon
Model：
Certificate
Contact
Details SPEC Con CAT OI
Similar products

DGC DC-2000C Thickness GaugeSPEC

DGC DC-2000C Thickness GaugeDetails

DGC DC-2000C Thickness GaugePacking list

SKU
NB001334
Measuring range
0.8~300mm
Probe frequency
5MHz
Probe style
Split probe (D5008)
Probe contact temperature
<60℃
Measurement error
Low precision: 0.65mm~ 99.9mm ± 0.1mm; 100.0mm~ 400.0mm ≤ 0.3% Hmm High precision: 0.8mm~ 9.99mm ± 0.04mm 10.00mm~ 99.99mm ± (0.1% + 0.04) mm 100.0mm~ 400.0mm ≤ 0.3% Hmm Note: H is the measurement of Film thickness value
Display resolution
0.1/0.01mm
unit system
mm/inch
Sound speed range
1000~9999m/s
Display
128X64 LCD four-bit dot matrix liquid crystal display (with LED backlight)
Operating language
Chinese
Application software
Yes.
Operating Temperature
-20~50℃
Storage temperature
-20~50℃
Power
2 * 7 AAA battery
Operating Time
48h
Host size
116*64*27mm
Weight
220G (including battery)
Measurement speed
Ordinary measurement 2 times/second; high-speed measurement 10 times/second
Shutdown method
1 minute, 3 minutes, 5 minutes automatic shutdown optional
DC-2000C
Thickness Gauge
Non-destructive Thickness Gauge DC-2000C Deguang electronic measurement of metal materials and other Film thickness Picture

Introduction

Deguang Electronics DC-2000C non-destructive Thickness Gauge is a black plastic shell with an external probe. It is an ultrasonic Thickness Gauge used to measure metals and other ultrasonic good conductor materials. It has a variety of measurement accuracy. DC-2000C Non-destructive Thickness Gauge has powerful functions. It integrates all the functions operated by four buttons and is powered by battery. DC-2000C non-destructive Thickness Gauge is different from the general Thickness Gauge with automatic shutdown function. This Thickness Gauge can automatically shut down at different times according to its own needs.

Note: DC-2000B non-destructive Thickness Gauge is an old version, the manufacturer has discontinued production, and only a small part of the stock is on sale. Currently, DC-2000C is used as a new version instead.

Principle of thickness measurement

The thickness measurement principle of DC-2000C non-destructive Thickness Gauge is to pass the ultrasonic pulse through the coupling agent to the object to be measured through the probe, a part of the ultrasonic pulse will be reflected by the surface of the object, and the probe will receive the echo reflected by the ground of the measured object to This is to accurately measure the round-trip time of the ultrasonic wave. By calculating the thickness and displaying it digitally, the thickness of the ultrasonic Thickness Gauge can be obtained at this time.

boot method

1. After inserting the probe, press the button to start up the DC-2000C non-destructive Thickness Gauge of Deguang Electronics . The displayed content: Thickness Gauge number, software version number, and then enter the measurement interface.

Note: When the probe is not inserted, the screen will prompt "Please insert the probe". At this time, just insert the probe and it will automatically enter the measurement state.

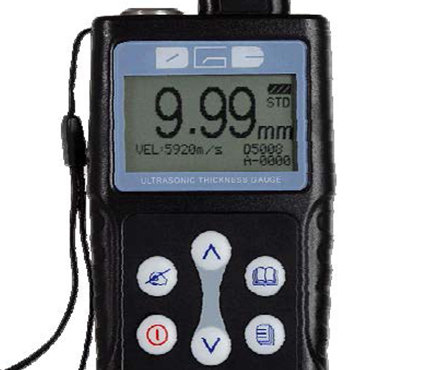

2. The DC-2000C Thickness Gauge enters the measurement state, displaying: 0.0mm or 0.00mm (0.00in or 0.000in depends on user settings), sound velocity value, selected probe, current measurement mode and other information.

backlight function

In the state of measurement, press the button to turn on or off the backlight of the DC-2000C non-destructive Thickness Gauge .

Note: Using the backlight will greatly increase the power consumption of the instrument, please pay attention to the battery power indicator of the DC-2000C non-destructive Thickness Gauge .

Pictures

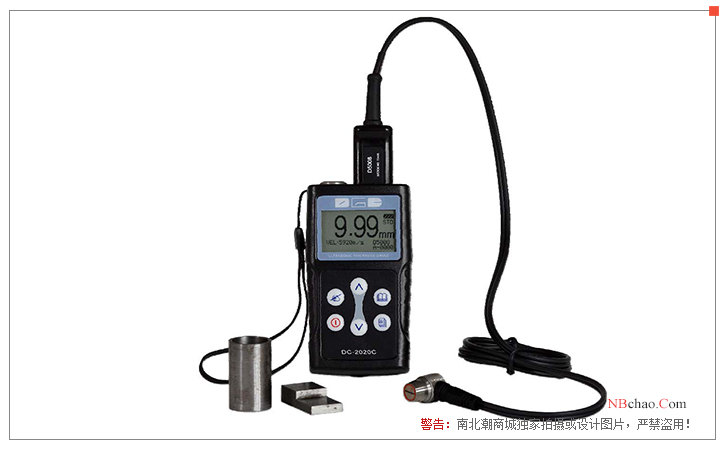

Deguang Electronics DC-2000C Non-destructive Thickness Gauge Appearance

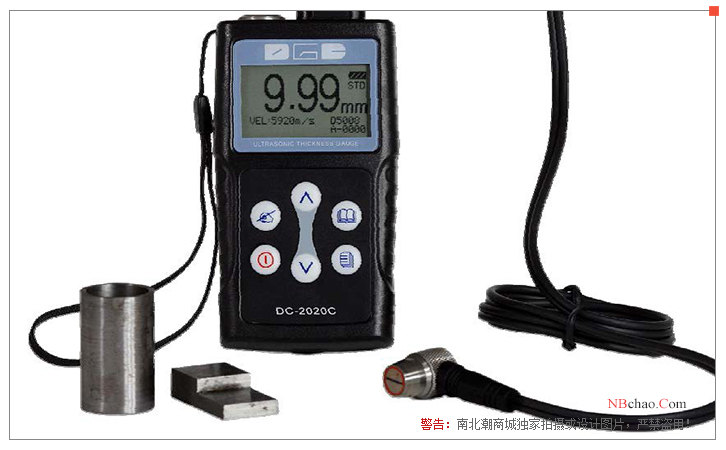

Deguang Electronics DC-2000C Non-destructive Thickness Gauge Button Diagram

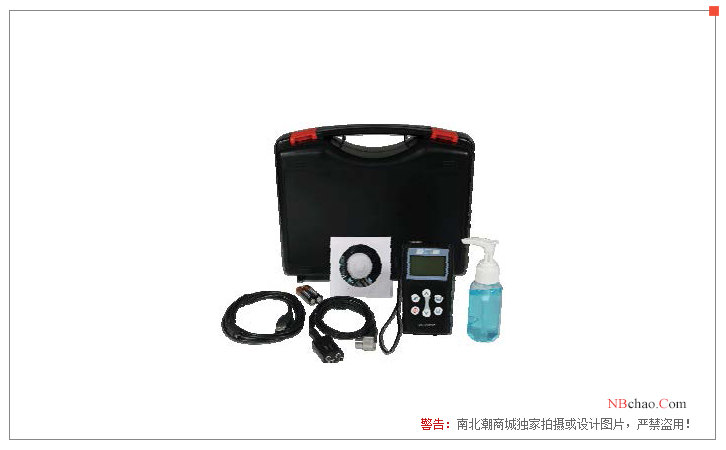

Deguang Electronics DC-2000C non-destructive Thickness Gauge packing list diagram

Note: The picture shown on the details page is the new version of DC-2000C ultrasonic non-destructive Thickness Gauge.

FAQ
QI want to measure the thickness of metal materials. Is the DC-2000C thickness gauge suitable?
A Suitable! DC-2000C is designed to measure metal and other ultrasonic conductors, with a split probe with an accuracy of up to 0.04mm. On-site testing of metal equipment such as pipes and boilers, it is portable and anti-drop, and can also set an automatic shutdown time. It is especially worry-free to use in the field.
QChoose high-precision or normal accuracy mode?
A Look at the demand! Choose high-precision (error 0.04mm) for thin parts within 10mm, such as precision parts; measure thick steel plates faster in normal mode (error 0.1mm), which can be measured 10 times per second. The instrument will automatically prompt the accuracy mode, which is super easy to get started.
QHow thin can this DC-2000C thickness gauge be?
A The thinnest DC-2000C thickness gauge can measure the measured thickness of 0.8mm.
QHow to calibrate DC-2000C non-destructive thickness gauge?
A Hello, Deguang DC2000C Coating thickness gauge calibration method: Press the menu button to enter the menu, select the probe calibrate, enter the calibrate mode, and adjust the measurement value to the standard value by pressing the up and down buttons. Press Confirm.
QDo you have the thickness gauge required by the JJF1126 standard?
A This DC-2000C thickness gauge will do.
