QNix4500P dual-use Coating Thickness Gauge 3mm range

SE
QNix4500 dual-use Coating Thickness Gauge with magnetic Induction and eddy Current two Measurement modes, this machine is a split strip line probe, measurement range of 3000 μm, +/- 3% Measurement accuracy, widely used in Coating and automotive painting field.
Model：
Contact
Details SPEC VIDEO CAT
Similar products

Qnix QNix4500P Coating Thickness GaugeSPEC

Qnix QNix4500P Coating Thickness GaugeDetails

Qnix QNix4500P Coating Thickness GaugePacking list

SKU
NB013346
Measurement principle
Magnetic Induction + eddy Current
Measurement range
Fe：0~3000μm； NFe：0~3000μm
margin of error
±3%
Resolution
0.1μm|1μm
Minimum measurement surface
Φ25mm
Minimum radius of curvature
Convex 5mm; Concave 25mm
thinnest substrate
0.2mm(F)；0.05mm(N)
probe
Split probe
Probe line length
1m
Unit display
μm/mils
Power Supply
2 × 1.5V AA battery
Standards
DIN EN ISO 2808, ISO 2178, ASTM B 499, ASTM D 7091,SO 2360
Display screen
liquid crystal display
Operating temperature
0~50℃
Machine Weight
147g
QNix4500P
Coating Thickness Gauge

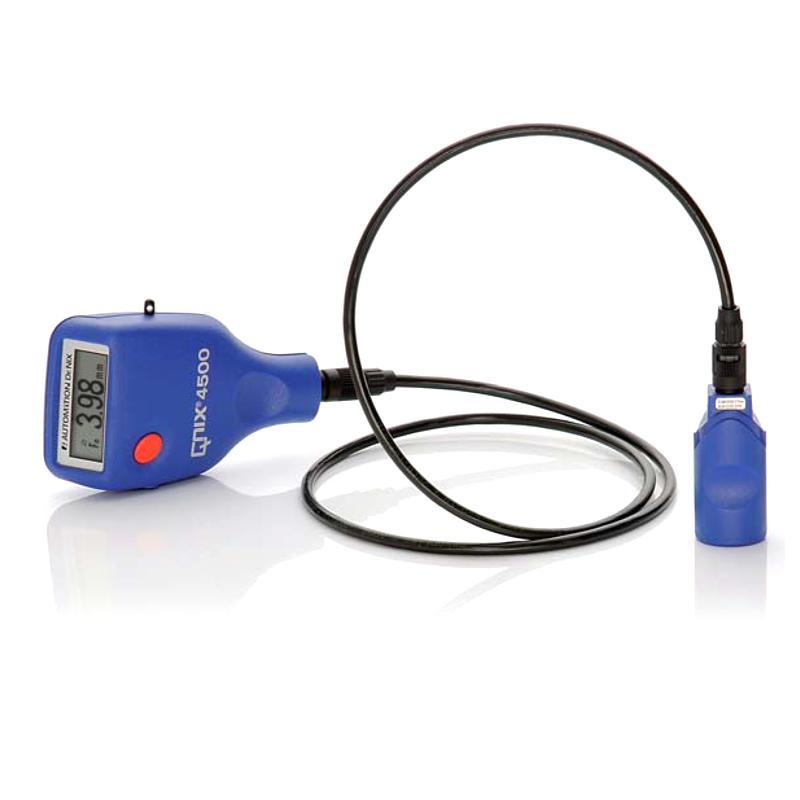

QNix4500P dual-use Coating Thickness Gauge 3mm range Picture

QNix@4500 coating Thickness Gauge is widely used in the fields of coatings and automotive coatings. QNix@4500 is a dual-purpose coating Thickness Gauge for magnetic induction and eddy current. This model is a standard version of the integrated probe, which can be used not only for It can measure magnetic substrates such as steel, and can also be used to measure coatings, oxide films, phosphating films and other coatings on the surfaces of non-magnetic metals such as aluminum, copper and stainless steel. These two models are simple to operate, easy to carry, and highly accurate, and are loved by the majority of users.


product advantages

　• Just zero, no calibration required

　• Compact size and easy to operate

　• Dual-purpose machine, automatically recognizes the substrate

　• High precision

　• cheap price


FAQ
QCan the Nix thickness gauge probe be replaced with a Miscellaneous range probe for testing?
A Sure.
QNickel-chromium-titanium alloy wire is sprayed onto steel after hot melting, and then measured Coating thickness 0.35-0
QDo you have the Coating thickness gauge required by ISO2178?
A This QNix4500P Coating thickness gauge will do.
QCoating thickness gauge QNix4500 is charged or battery installed?
A Hello, it uses 1.5V AA battery.
QCan QNix4500 Coating thickness gauge test phosphating film thickness on iron base?
A Hello, yes, the thickness measurement range of this QNix4500 is 0~ 3000μm.
QWhat is the test area of the QNix4500?
A Hello, the minimum measurement diameter is 25mm.
QWhat is the thickness measurement range of this Knicks 4500 film instrument? Does the price include tax?
A Hello, this QNix4500 Coating thickness gauge has a thickness measurement range of 0~ 3000mm, and the price includes tax and transportation of 5700 yuan.
