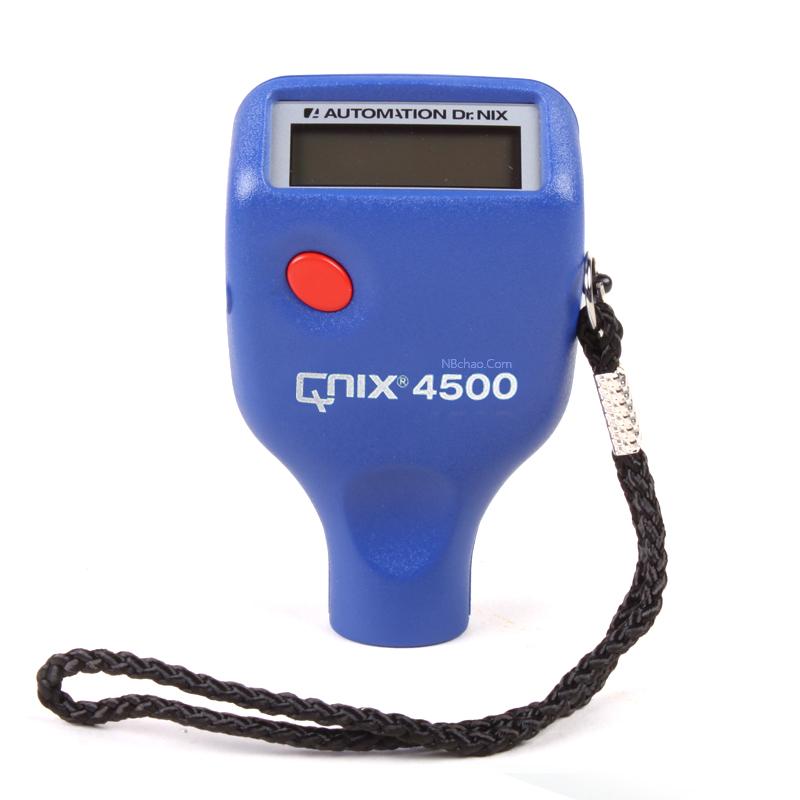

QNix4500 dual-use Coating Thickness Gauge integrated probe Fe: 5mm; NFe: 3mm range
QNix4500 (integrated 5/3mm)
Qnix QNix4500 (integrated 5/3mm) Coating Thickness GaugeSPEC

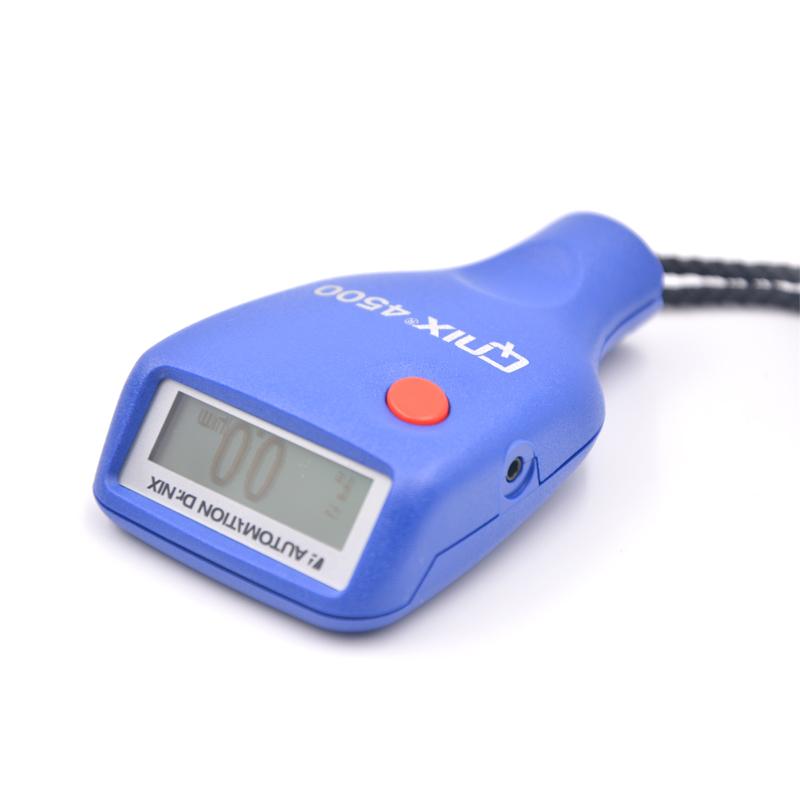

Qnix QNix4500 (integrated 5/3mm) Coating Thickness GaugeDetails

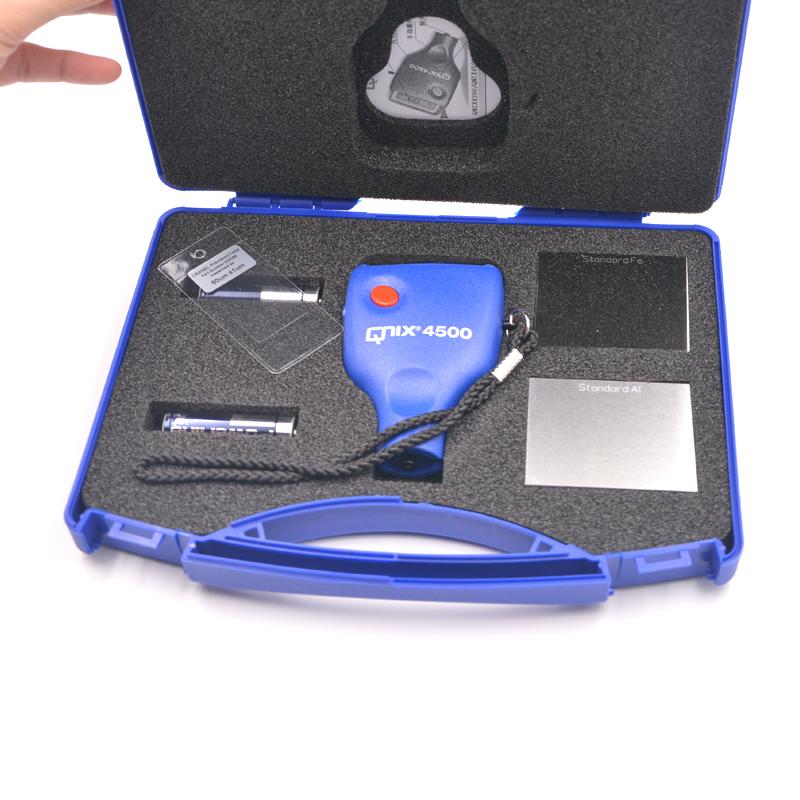

Qnix QNix4500 (integrated 5/3mm) Coating Thickness GaugePacking list
- SKU
- NB013348
- Measurement principle
- Magnetic Induction + eddy Current
- Measurement range
- Fe：0~5000μm；NFe：0~3000μm
- margin of error
- ±3~5%
- resolution
- 0.1μm|1μm
- Minimum measurement surface
- Φ25mm
- Minimum radius of curvature
- Convex 5mm; Concave 25mm
- thinnest substrate
- 0.2mm(F)；0.05mm(N)
- probe
- Integrated probe
- Unit display
- μm/mils
- Power Supply
- 2 × 1.5V AA battery
- Standards
- DIN EN ISO 2808, ISO 2178, ASTM B 499, ASTM D 7091,SO 2360
- Weight
- 105g
- Dimension
- 100*60*27mm
QNix@4500 coating Thickness Gauge is widely used in the field of coatings and automotive coatings, QNix@4500 is a magnetic induction and eddy current dual-purpose coating Thickness Gauge, this model is a standard version of the integrated probe (special range Fe: 5000μm), can not only be used to measure magnetic substrates such as steel, but also can be used to measure aluminum, copper, stainless steel and other non-magnetic metal surface coatings, oxide film, phosphate film and other coatings. These two models are simple to operate, easy to carry, and have high precision, which are loved by the majority of users.
Benefits:
• Zero-only only, no calibration required
• Compact size and easy to operate
• One machine for dual use, automatic identification of the substrate
• High precision
• Inexpensive
