Ultrasonic steel plate Thickness Gauge DC-2010C Deguang electronic measurement of steel plate material itself Film thickness

DC-2010C

Thickness Gauge

Introduction

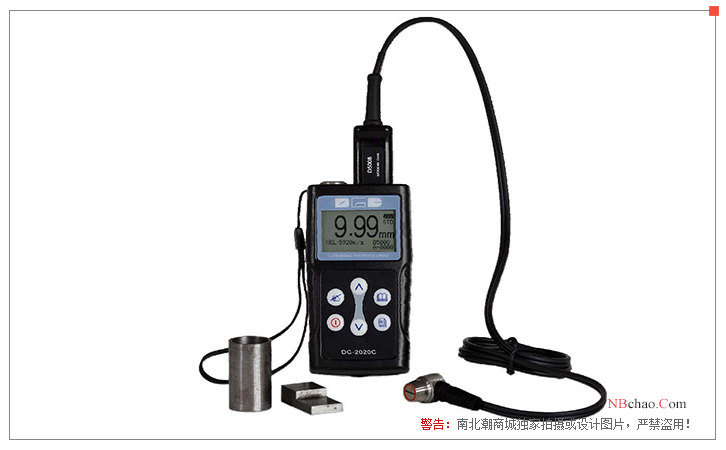

Deguang Electronics DC-2010C Ultrasonic Steel Plate Thickness Gauge is a storage type ultrasonic Thickness Gauge of Deguang Electronics Ultrasonic Thickness Gauge series. It is an ultrasonic steel plate Thickness Gauge used to measure the thickness of steel plates, metals and other materials. DC-2010C Ultrasonic Steel Plate Thickness Gauge is a non-penetrating coating Thickness Gauge. When the surface of the measured material is coated, DC-2010C Ultrasonic Steel Plate Thickness Gauge cannot penetrate the coating to obtain the thickness of the material.

DC-2010C Ultrasonic Steel Plate Thickness Gauge has a measuring range of 0.65mm~400.0mm, has data storage function, can store 3000 sets of measurement data, and has a large storage capacity,

product structure

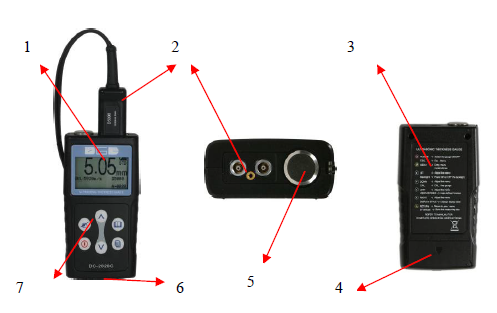

1. Appearance structure

The structure of DC-2010C Ultrasonic Steel Plate Thickness Gauge includes: ①LCD panel;②Probe socket, identification pin;③Instrument label (back);④Battery compartment(back); The details are as follows:

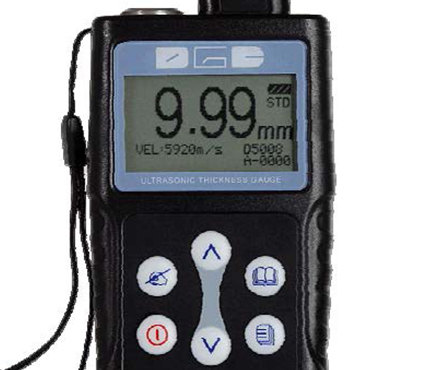

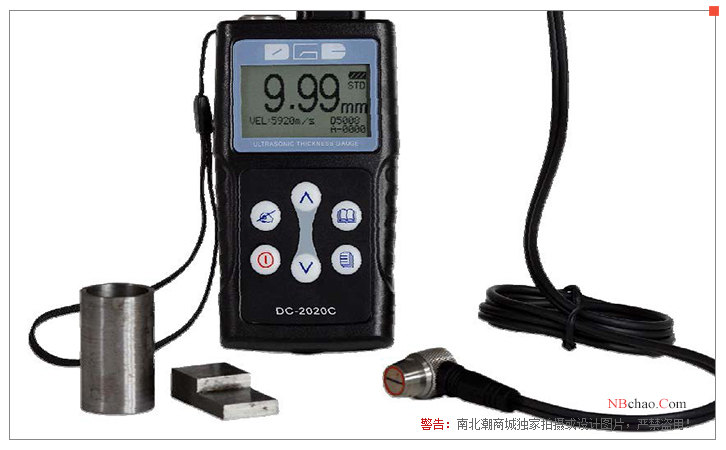

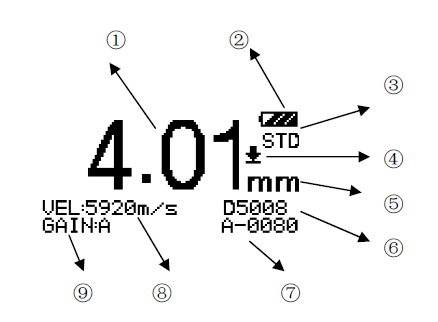

2. Display data description

① Measured value

② Display of full battery and low Voltage

③ Measurement mode

STD: standard measurement mode

MIN: Minimum value measurement mode

SCA: Quick Measure

④ Measurement symbol

⑤ Measurement system

⑥ Selected probe

⑦The ultrasonic steel plate Thickness Gauge stores the current file and address

⑧ The currently selected sound velocity

⑨ Gain of the ultrasonic steel plate Thickness Gauge currently selected

3. Description of the keyboard

The keyboard of DC-2010C Ultrasonic Steel Plate Thickness Gauge is from left to right and from top to bottom:

①Storage key

②Power key \ return key or exit key (in the menu)

③Read key

④ DC-2010C ultrasonic steel plate Thickness Gauge menu key \ confirmation key (in the menu)

⑤  DC-2010C ultrasonic steel plate Thickness Gauge backlight key \ up key (in the menu)

⑥Zero  calibration key \ down key (in the menu)

Measurement methods

There are 4 measurement methods of Deguang Electronic DC-2010C Ultrasonic Steel Plate Thickness Gauge, as follows:

1) Single-point measurement method, use the probe to measure any point on the object to be measured, and the displayed value is the thickness value of the material.

2) Two-point measurement method, use the probe to perform secondary measurement at the same point of the measured object. In the two measurement, the split plane of the probe is 90 degrees, and the smaller value is the thickness value.

3) Multi-point measurement method, in a circle with a diameter of about 30 mm, use the DC-2010C ultrasonic steel plate Thickness Gauge to perform multiple measurements, and take the minimum value as the thickness value.

4) Continuous measurement method, using single-point measurement method, continuous measurement along the specified line, the interval is not less than 5 mm, and the minimum value is the thickness value of the measured body.

Pictures

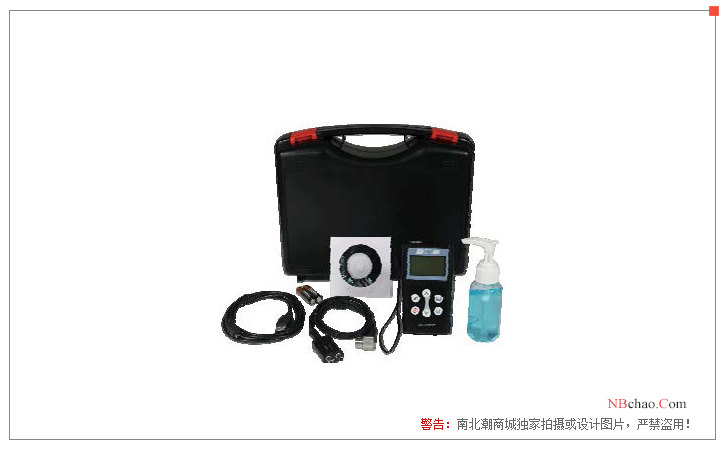

Packing list：Host x1, probe (D5008) x1, coupling agent x1, AA battery x2, user manual x1, instrument case x1, USB data cable x1, data disc x1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
