TQC VF2105 single-channe grinding Fineness of Grinding Gauge 0~25μm with calibrated certificate

SE
Grindometer 0-25µm, single-channe DIN/ISO
$1044.00/set
PromotionLoading...
Coupon
Model：
Certificate
Contact
Details SPEC Con VIDEO OI
Similar products

TQC sheen VF2105 Single-channe Fineness gaugeSPEC

TQC sheen VF2105 Single-channe Fineness gaugeDetails

TQC sheen VF2105 Single-channe Fineness gaugePacking list

SKU
NB013354
Scraper type
Single-channe
Number of grooves
1
range
0~25μm
Scale unit
μm
Accuracy
±2μm
scraper material
ASAB Stavax tool steel, Sub Zero vacuum hardening (+ 1756 ℃~ -70 ℃)
Scraper size
175*60*12mm
Groove width
12mm
Drawdown blade size
75*38*8mm
Applicable standards
ASTM D 1210、ASTM D 1316、JIS K 5600-2-5、ISO 1524、DIN EN 21524、BS 3900-C6
Graduation
2.5μm
Calibrated Certificate
With Certificate
VF2105
Single-channe Fineness gauge
Grindometer 0-25µm, single-channe DIN/ISO

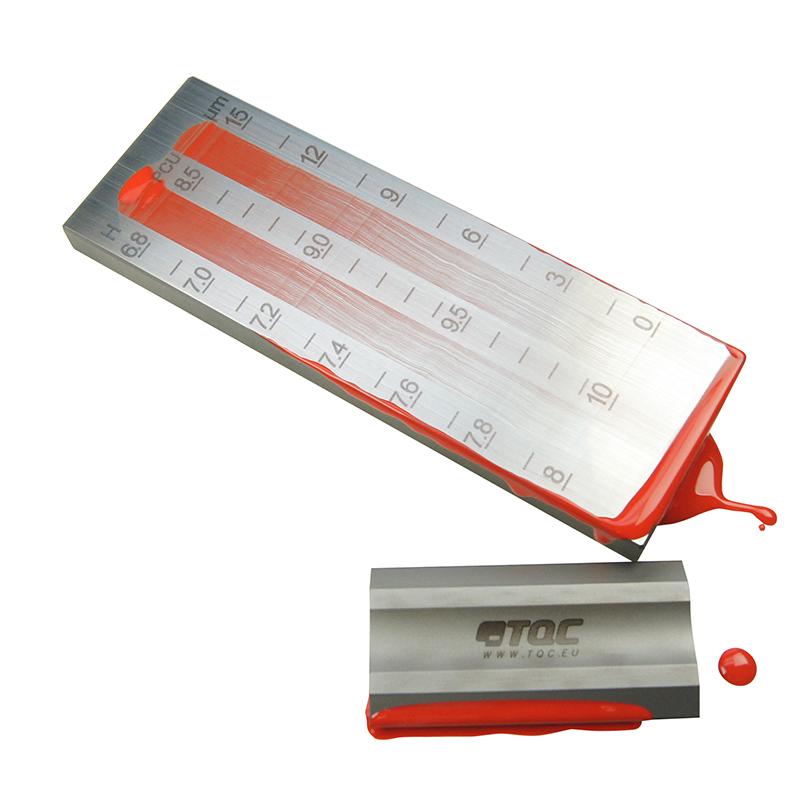

TQC VF2105 single-channe grinding Fineness of Grinding Gauge 0~25μm with calibrated certificate Picture

TQC VF2105 single-groove scraper grinding fineness measurement range of 0-25μm, using tool steel hardening and polishing treatment, accuracy ±2μm, widely used in paint paste, paint varnish, pigment filler and other particle size and grinding fineness detection.

TQC VF2105 Single-channe Fineness Plate Detail Figure 1

TQC VF2105 Single channel Fineness gauge Detail Figure 2

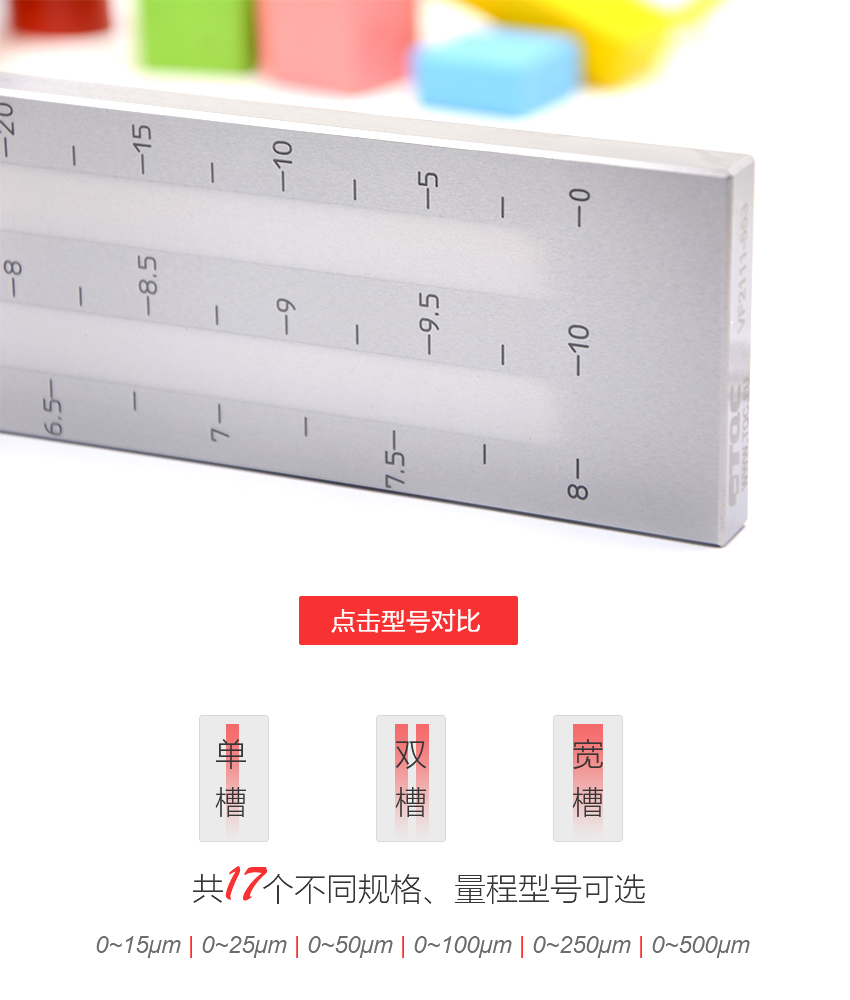

TQC VF2105 Single channel Fineness gauge Details Figure 3

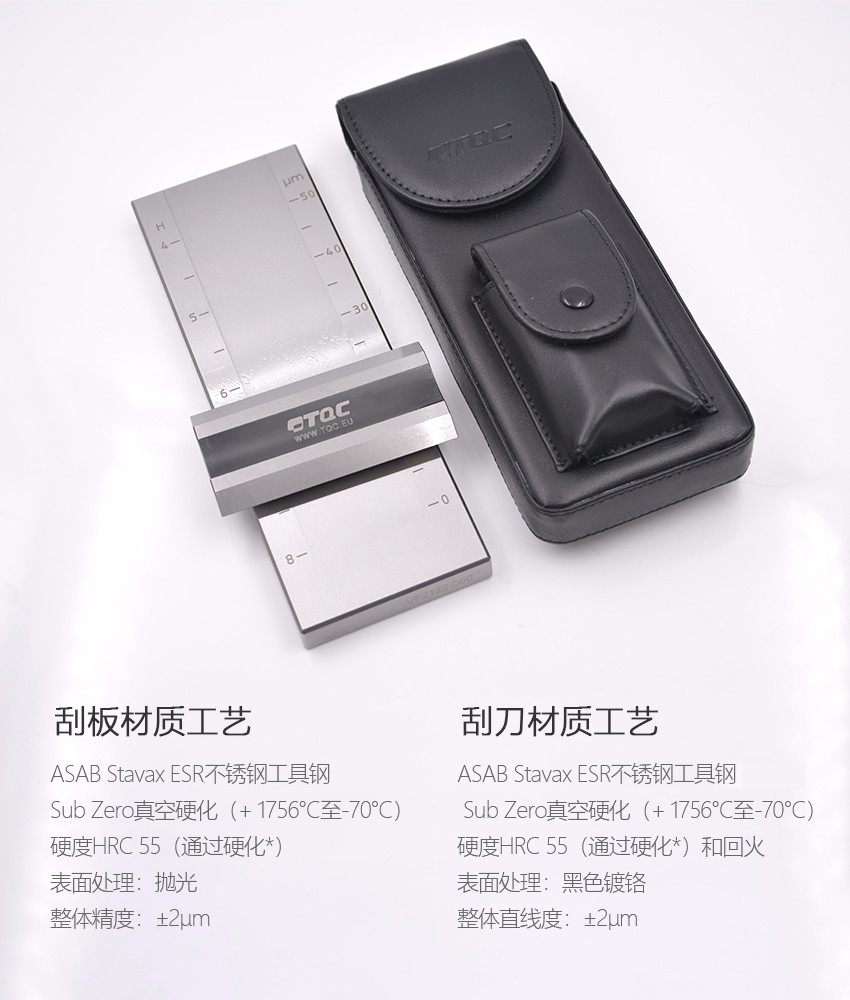

TQC VF2105 Single Groove Fineness Gauge Detail Figure 4

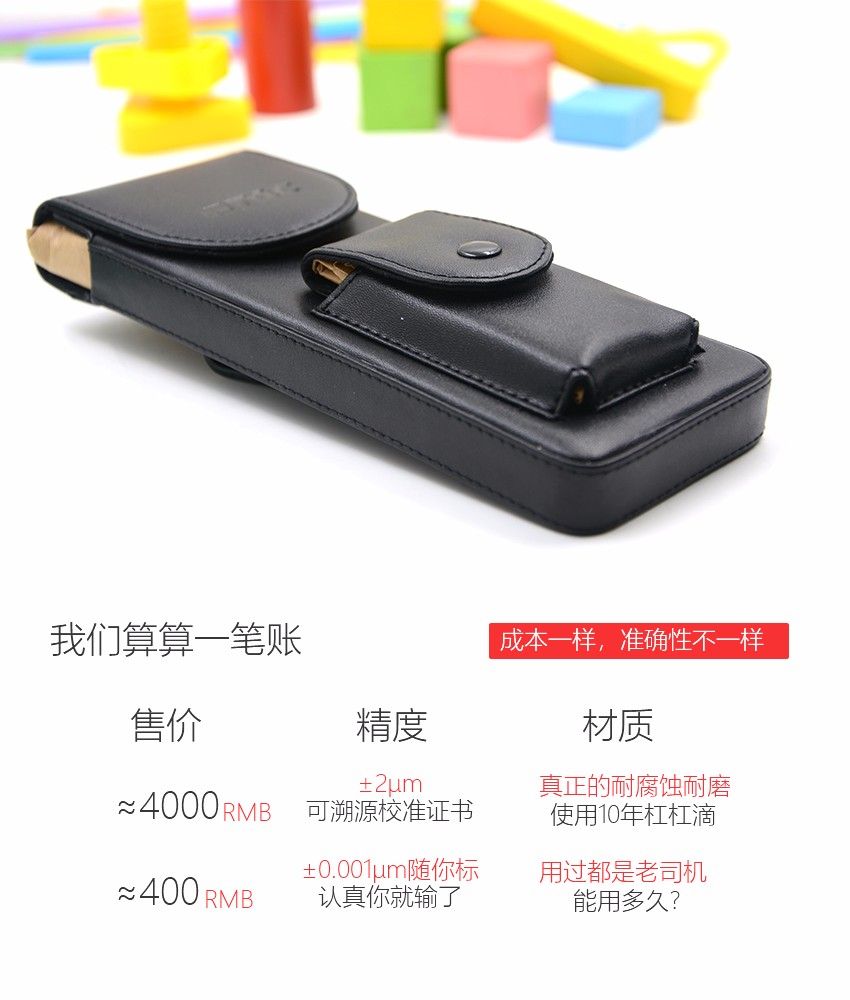

TQC VF2105 Single Groove Fineness Gauge Detail Figure 5

TQC Grindometer full range


Groove typeRangeModelmicronHPCU
pair0 - 15VF2110XXX
pair0 - 25VF2111XXX
pair0 - 50VF2112XXX
pair0 - 100VF2113XXX
pair0 - 250VF2118XXX
pair0 - 500VF2124X

single0 - 15VF2104X

single0 - 25VF2105X

single0 - 50VF2106X

single0 - 100VF2107X

single0 - 250VF2108X

single0 - 500VF2109X

wide0 - 15VF2120XX
wide0 - 25VF2121XX
wide0 - 50VF2122XX
wide0 - 100VF2123XX
wide0 - 250VF2125XX


Standards:

ASTM D 1210，ASTM D 1316，JIS K 5600-2-5，ISO 1524，DIN EN 21524，BS 3900-C6

features

Precision instrument, accuracy ± 2μm

Ergonomic scraper for easy holding.

Multiple models are available

adoptASAB Stavax ESR Stainless Steel Tool Steel, Sub Zero Vacuum-Hardened (+1756°C to -70°C), Hardness HRC 55 (by hardening)

Surface polishing

FAQ
QCan this single-channe Fineness gauge be applied to ASTMD1210-05?
A OK
QWhat type of Fineness scraper for water-based gravure plate Printing ink for cigarette packs?
A Printing ink Fineness of cigarette packs is generally around 15μm, and a 0-25μm Fineness gauge is recommended.
QWhat instrument is used for the measurement of the size of solid aggregates in the slurry?
A This type of scraper Fineness meter can determine the Fineness in the slurry. The scraper Fineness meter method is an accurate, fast and easy-to-operate method. The specific model selection can be based on your estimated slurry Fineness. For details, please consult the technical engineer of NBchao. Com Mall.
QCan the VF2105 Fineness gauge be used to scrape pigments up to 20 microns?
A Yes, the single-channe Fineness gauge can scrape material fineness below 0~ 25μm.
QFineness measurement Printing ink is used for this Fineness scraper?
A Yes, Printing ink Fineness is relatively small, you can choose the appropriate range according to your actual situation.
