TQC VF2109 single-channe grinding Fineness of Grinding Gauge 0~500μm

SE
Grindometer 0-500µm, single-channe DIN/ISO
$1544.00/set
PromotionLoading...
Coupon
Model：
Certificate
Contact
Details SPEC Con VIDEO OI
Similar products

TQC sheen VF2109 Single-channe Fineness gaugeSPEC

TQC sheen VF2109 Single-channe Fineness gaugeDetails

TQC sheen VF2109 Single-channe Fineness gaugePacking list

SKU
NB013358
Scraper type
Single-channe
Number of grooves
1
range
0~500μm
Scale unit
μm
Accuracy
±2μm
scraper material
ASAB Stavax tool steel, Sub Zero vacuum hardening (+ 1756 ℃~ -70 ℃)
Scraper size
175*60*12mm
Groove width
12mm
Drawdown blade size
75*38*8mm
Applicable standards
ASTM D 1210、ASTM D 1316、JIS K 5600-2-5、ISO 1524、DIN EN 21524、BS 3900-C6
Graduation
50μm
Calibrated Certificate
without
VF2109
Single-channe Fineness gauge
Grindometer 0-500µm, single-channe DIN/ISO

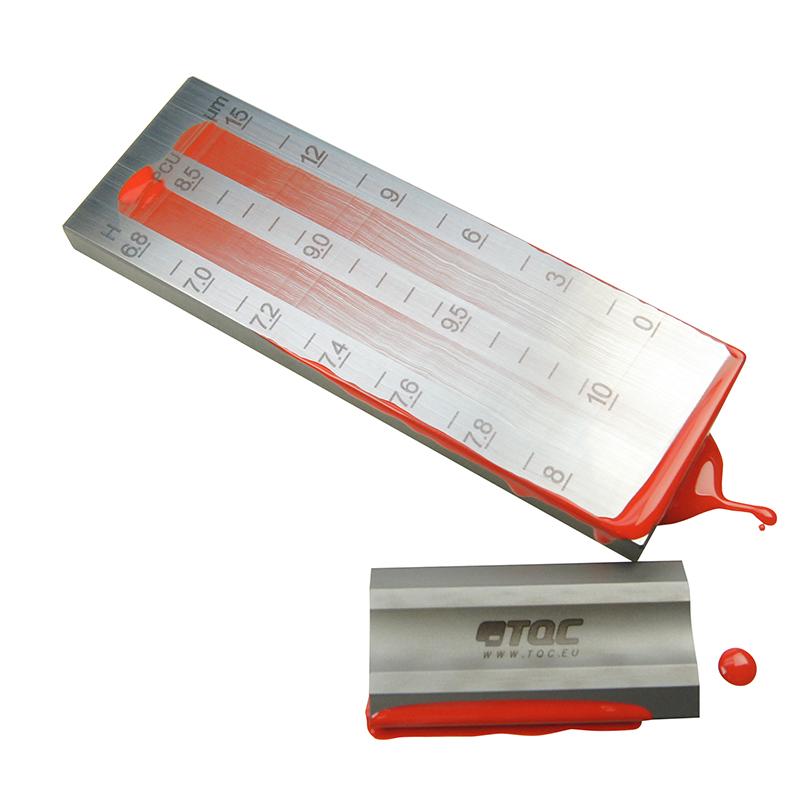

TQC VF2109 single-channe grinding Fineness of Grinding Gauge 0~500μm Picture

TQC VF2109 single-groove scraper grinding fineness measurement range of 0-500μm, using tool steel hardening and polishing treatment, accuracy ±2μm, widely used in paint color paste, paint varnish, pigment filler and other particle size and grinding fineness detection.

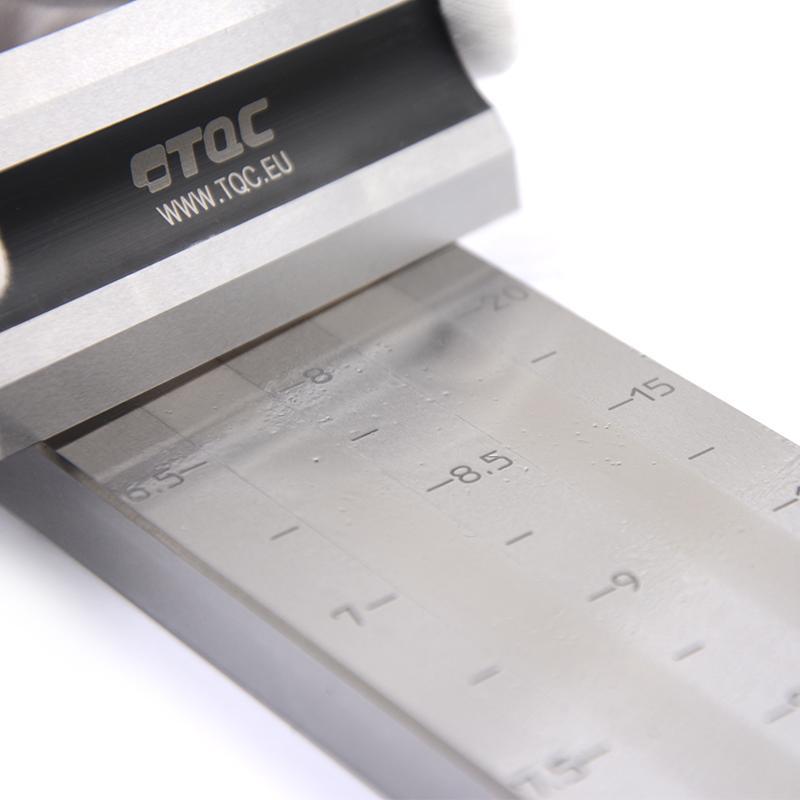

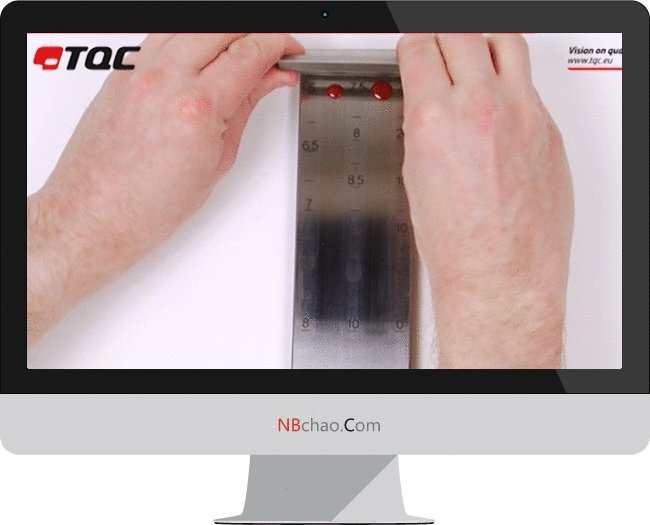

TQC VF2109 Single channel Fineness gauge Detail Figure 1

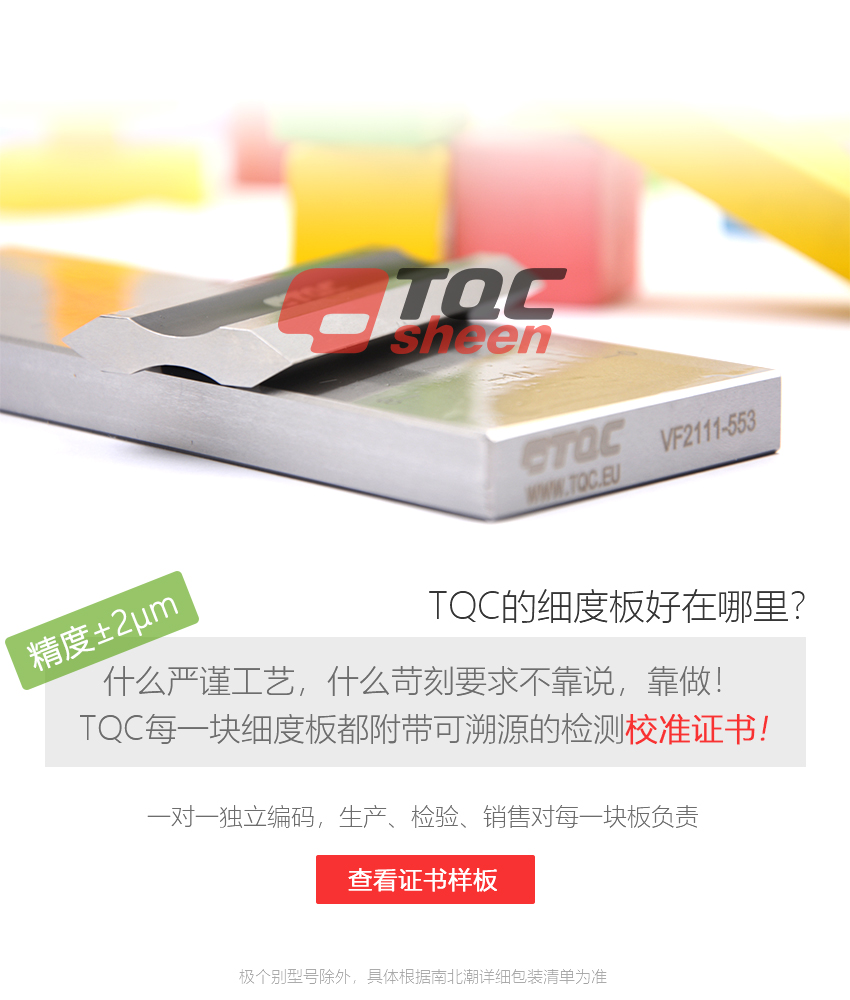

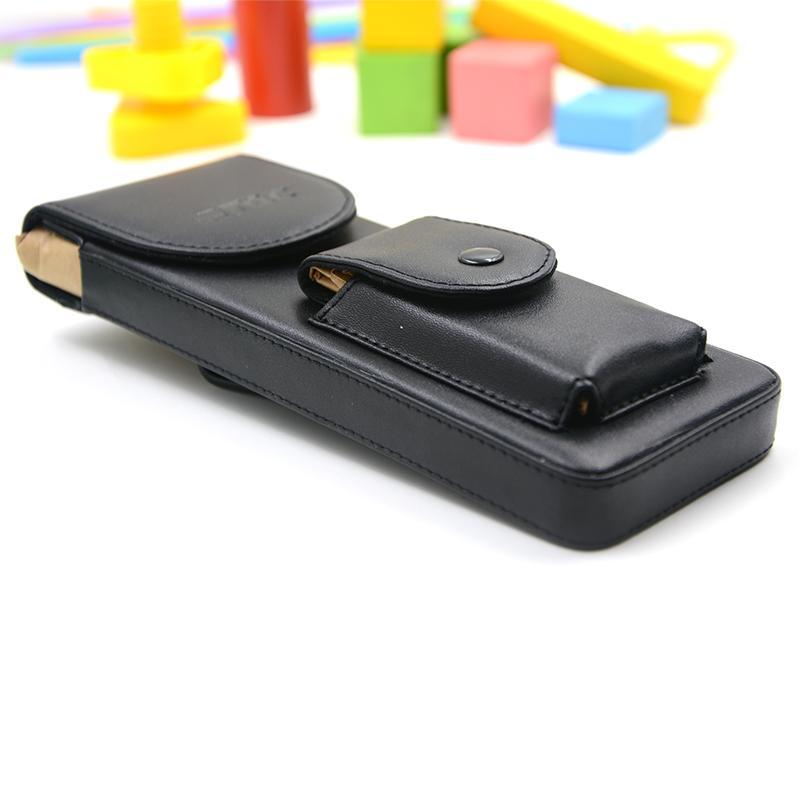

TQC VF2109 Single-channe Fineness Plate Details Figure 2

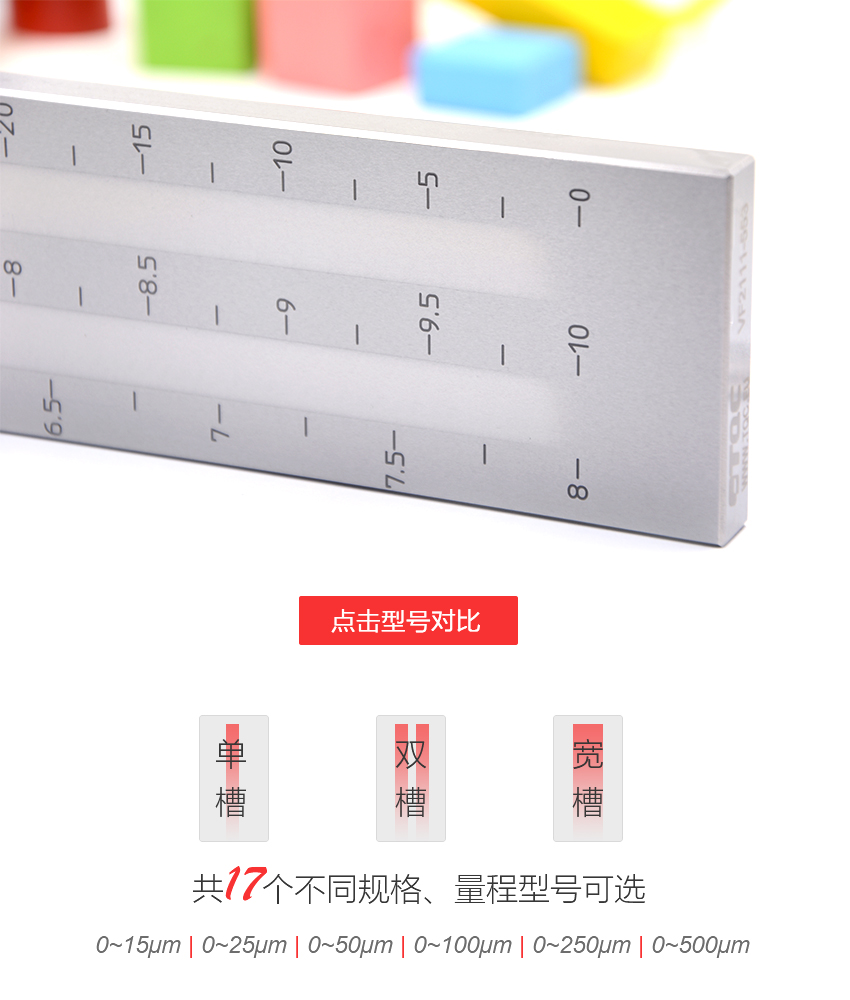

TQC VF2109 Single channel Fineness gauge Details Figure 3

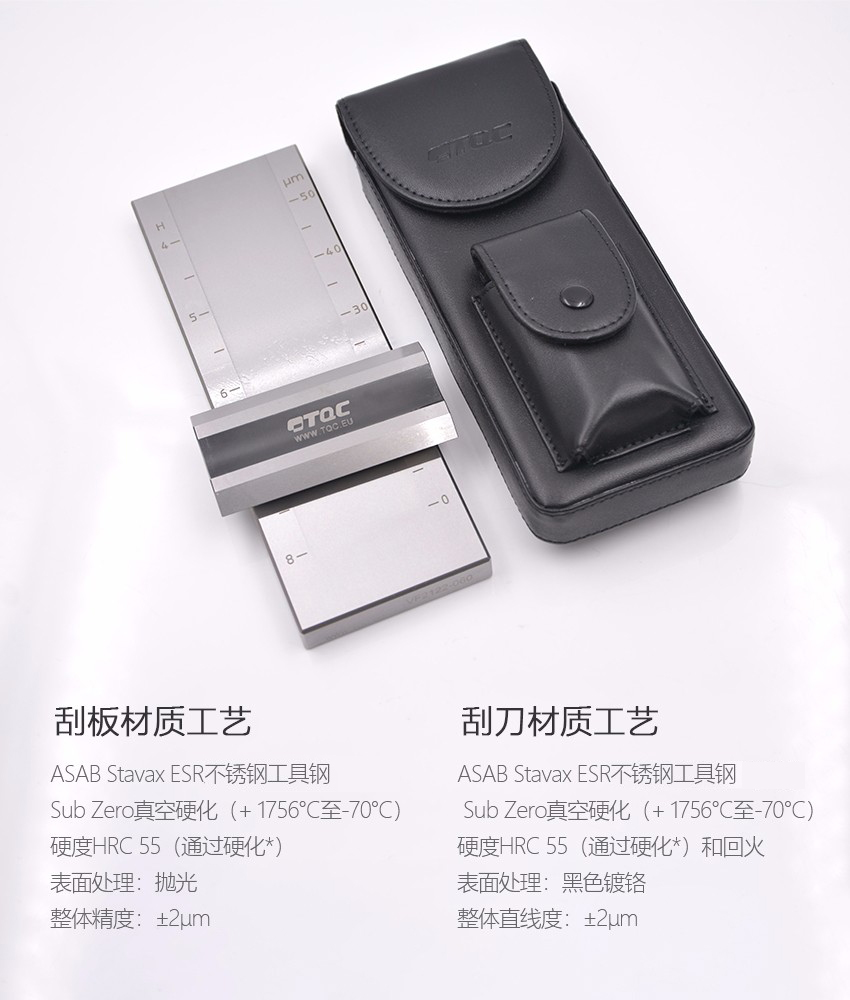

TQC VF2109 Single-channe Fineness Gauge Detail Figure 4

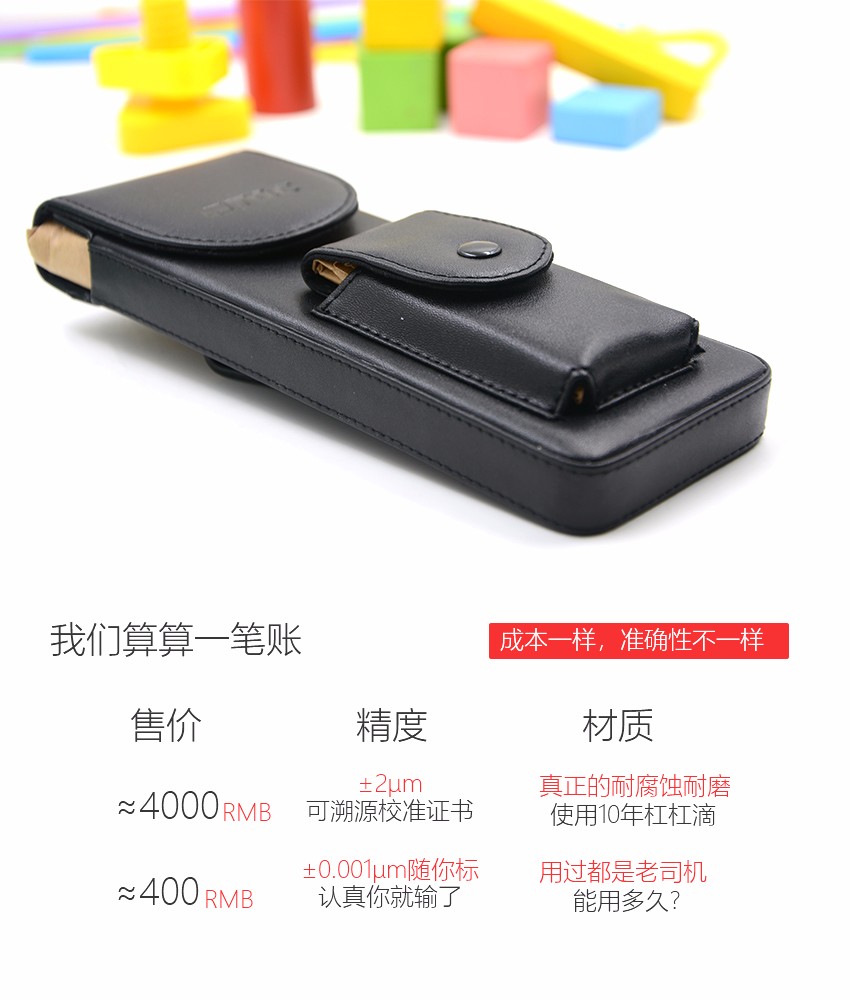

TQC VF2109 Single Groove Fineness Gauge Detail Figure 5

TQC Grindometer full range

Groove typeRangeModelmicronHPCU
pair0 - 15VF2110XXX
pair0 - 25VF2111XXX
pair0 - 50VF2112XXX
pair0 - 100VF2113XXX
pair0 - 250VF2118XXX
pair0 - 500VF2124X

single0 - 15VF2104X

single0 - 25VF2105X

single0 - 50VF2106X

single0 - 100VF2107X

single0 - 250VF2108X

single0 - 500VF2109X

wide0 - 15VF2120XX
wide0 - 25VF2121XX
wide0 - 50VF2122XX
wide0 - 100VF2123XX
wide0 - 250VF2125XX


Meets standards

ASTM D 1210，ASTM D 1316，JIS K 5600-2-5，ISO 1524，DIN EN 21524，BS 3900-C6

features

Precision instrument, accuracy ± 2μm

Ergonomic scraper for easy holding.

Multiple models are available

adoptASAB Stavax ESR Stainless Steel Tool Steel, Sub Zero Vacuum-Hardened (+1756°C to -70°C), Hardness HRC 55 (by hardening)

Surface polishing

FAQ
QDo you have the single-channe Fineness gauge involved in ASTMD1210-05?
A The VF2109 single-channe Fineness gauge on it
QWhat instrument is used for the measurement of the size of solid aggregates in the slurry?
A This type of scraper Fineness meter can determine the Fineness in the slurry. The scraper Fineness meter method is an accurate, fast and easy-to-operate method. The specific model selection can be based on your estimated slurry Fineness. For details, please consult the technical engineer of NBchao. Com Mall.
QFineness of watercolor pigment is to use this Fineness instrument? Is it possible to use Miscellaneous type instrument?
A Yes, Fineness gauge is mainly used for scratch sample detection of pigment Fineness. The specific range needs to be selected according to your estimated particle Fineness. Please consult customer service for details.
QCan this VF2109 Fineness gauge detect slurries around 375 microns?
A Yes, the single-channe Fineness gauge can scrape the sample fineness below 0~ 500μm.
