Ultrasonic wall Thickness Gauge DC-2030C Deguang electronic measurement of cast iron and other Film thickness

DC-2030C

Thickness Gauge

Introduction

Deguang Electronics DC-2030C Ultrasonic Wall Thickness Gauge is an ultrasonic Thickness Gauge with a cast iron probe. Its appearance and measurement range are the same as those of the DC-2020 Thickness Gauge, and it can store 3000 sets of measurement data. DC-2030C Ultrasonic Wall Thickness Gauge adopts microprocessor technology and uses the principle of ultrasonic thickness measurement to measure the thickness of pipes, metals, steel plates and other materials. It is a non-penetrating coating type ultrasonic Thickness Gauge, which can not only directly measure materials The thickness itself can also be used to measure the thickness of the material through the sound velocity.

Features

1. DC-2030C Ultrasonic Wall Thickness Gauge has an automatic zero calibration probe when it is turned on, and it can be calibrated manually, which can eliminate measurement deviation

2. Using a new high-precision probe design, automatically identify a variety of probes

3. DC-2030C Ultrasonic Wall Thickness Gauge presets the sound velocity values of 9 kinds of commonly used materials, which is convenient for selection and can manually input the sound velocity of other materials

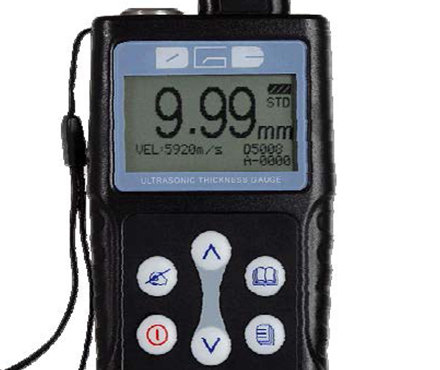

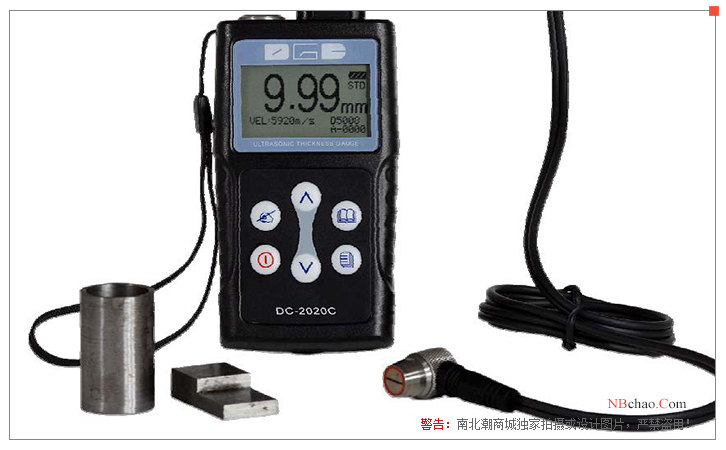

4. The large screen is high-definition, with backlight LCD display function

5. The measurement range is expanded to 0.65mm – 400mm (different probes determine different measurement ranges)

6. Large storage capacity, 3000 sets of measurement data

7. Manual/automatic gain adjustment

8. USB data interface can transfer data to PC

Measurement methods

In actual measurement, different test requirements and test objects require different test methods to make the measured data more fully reflect the actual state of the workpiece. This instrument provides three measurement methods to meet the test requirements.

①Press the menu key\confirm key of DC-2030C Ultrasonic Wall Thickness Gauge to enter the menu

②Press up key, down key to select "Measurement"

③Press the menu key\confirm key to enter the item

Pictures

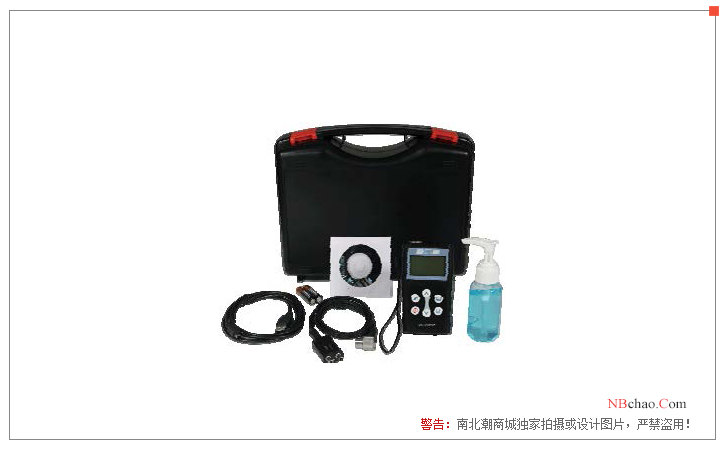

Packing list：Host x1, probe (D2012) x1, coupling agent x1, AA battery x2, user manual x1, instrument case x1, USB data cable x1, data disc x1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
