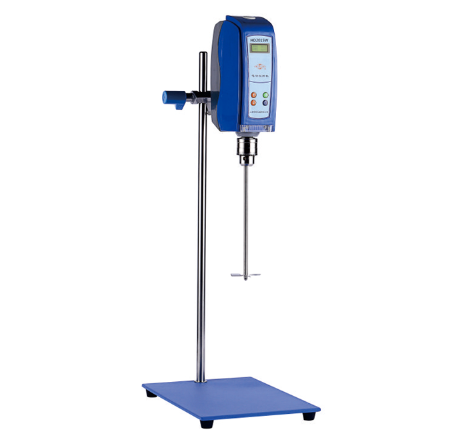

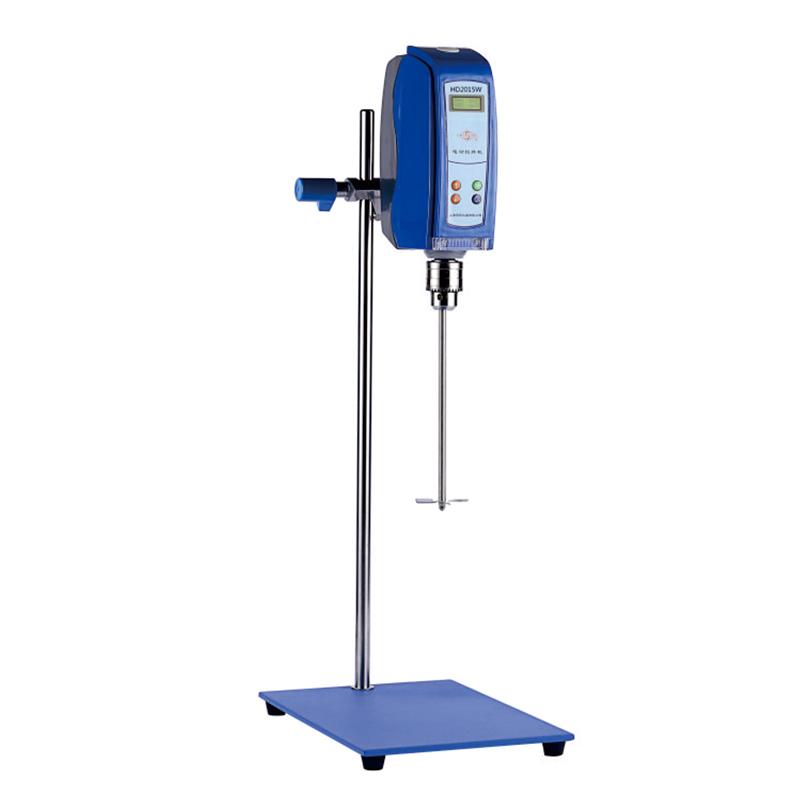

SILE vertical HD2015W Overhead Stirrer Stirrer 30L/1300rpm

Vertical HD2015W

Powerbasic stirrer

overview

The vertical HD20 series constant speed electric mixer has been changed from the original analog control to digital control. The constant speed adopts deep closed loop, so it can work at constant power at low speed. .

Instructions

1. Turning the stirring head will be dangerous, pay attention to body, clothing and hair. At the same time prevent the stirring liquid from splashing.

2. As soon as the instrument is plugged in, it will enter the standby state, and press the ↑ and ↓ keys to set the speed. Click to change 10 revolutions, press to change to accelerate.

3. If the stirring needs to be reversed, press the ↑ key and hold it when it is stopped, and then press the M key. When the display shows -RS, release the M key, and then release the ↑ key, and the display shows -RS. For reverse, +RS for forward.

4. Timing setting, press and hold the M key when it is stopped, enter the timing state display screen up: TIME SET, down tim press ↑, ↓ key to set the stirring Timer Setting (in minutes), press M again to exit the setting fixed state. If the Timer Setting is set to 0, the stirrer will work without timing. After the Timer Setting is set, it is always saved in the machine, and it is timed every time it is turned on. If you don't want to set the time to "0".

5. When the stirring load exceeds the power of the machine, the stirring will automatically shut down due to overload, and press the M key to enter the standby state. Press M again to restart

Packing list：Host X1, Stir head X1 (pcs), baseplate X1, cross right-angle chuck X1, main benchmark (Φ18X720mm) X1, warranty card X1, certificate X1, manual X1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
