DGC DHT-300DL Portable Leeb Hardness Tester

DHT-300DL

Hardness Tester

Introduction

DHT-300D/C/DL portable Leeb Hardness Tester is a hand-held pen type small volume Leeb Hardness Tester, simple structure, with a small LCD screen, which can display the measured data in real time, easy to carry, charged through USB or charger interface, simple and convenient to use, and widely applicable to occasions.DHT-300D/C/DL portable Leeb Hardness TesterThe sensors are D-type, C-type and DL type impact devices, which comply with the national standard GB/T 17394-1998 and can freely convert a variety of hardness systems.

Product Structure

DHT-300D/C/DL portable Leeb Hardness Tester has a simple structure, which is introduced in three parts: host structure, display screen and keyboard:

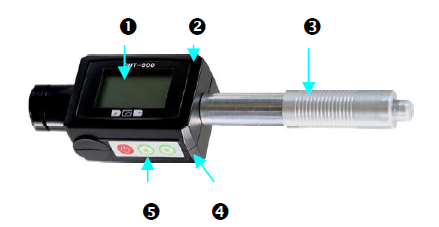

1、DHT-300 main engine structure

1) LCD screen

2) USB/charger port

3) Sensors

4) Signage (back)

5) Keyboard

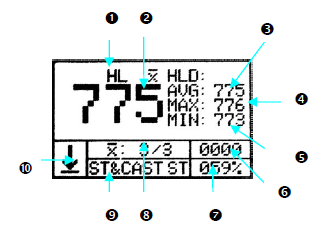

2. Digital introduction of the display screen

1） Hardness system

2）Averages and symbols

3）Measured average value (Leeb hardness)

4）Maximum measured value

5）Minimum measured value

6）The current storage address

7）Current battery level

8）Number of measurements/average times

9）material

10）Measure the direction

3. Keyboard part

DHT-300D/C/DL portable Leeb Hardness Tester has three buttons, which are:

1）Switch/Menu/Confirm keys

2）Select/Shift/Delete keys

3）Select/Set/Display Transition Key

Product transfer data operations

DHT-300D/C/DL portable Leeb Hardness TesterA standard USB data interface is provided, and a data/charging cable can be used to connect to a computer. The steps are as follows:

1) Connect with a transmission cableDHT-300D/C/DL portable Leeb Hardness Testermainframes and PCs;

2) Run the corresponding software, and the PC waits to receive the data;

3) UtilizationDHT-300D/C/DL portable Leeb Hardness TesterThe menu function selects the desired printing method, and the data transfer process is completed immediately after confirming the printing.

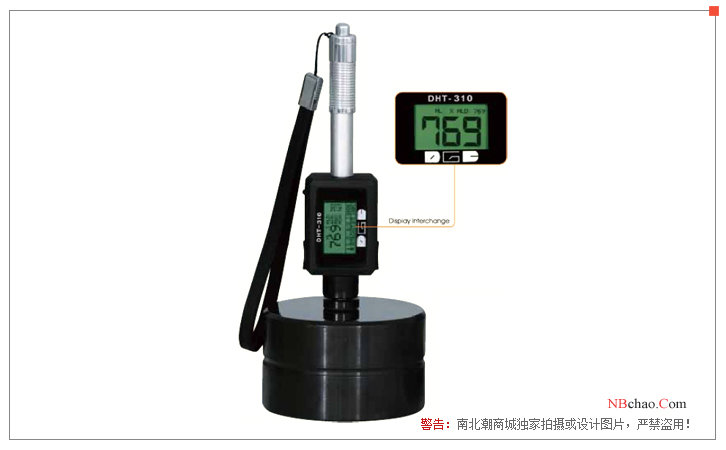

Actual picture of the product

Packing list：Host x1, probe x1, Richter Hardness block x1, brush x1, small support ring x1, software and transmission cable x1, random data x1, instrument case x1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
