IWAVE WF30 16mm large diameter Colorimeter fabric color difference leather color difference wood color difference special measuring instrument

SE
16Mm large diameter, suitable for detecting texture, rough, soft, wet and other products, built-in whiteboard automatic correction, repeability accuracy < 0.05, with computer software.
$1392.00/set
PromotionLoading...
Coupon
Model：
Certificate
Contact
Details SPEC Con VIDEO CAT OI
Similar products

IWAVE WF30-16mm ColorimeterSPEC

IWAVE WF30-16mm ColorimeterDetails

IWAVE WF30-16mm ColorimeterPacking list

SKU
NB001351
Lighting method
8°/d
Sensors
Photodiode Array
Measuring range
L:0~100
Measurement light source
D50,D65,F11(TL84)
Measurement time
0.5s
Measurement caliber
F16mm
Sexual repeability
ΔE * from < 0.05
Operating language
Simplified Chinese, English
Data Interface
USB2.0(USB-B型)、RS-232(115200bps)
Viewing Angle
CIE 10 °
lighting source
LED blue light excitation
Color difference formula
ΔE * from
Data storage
100 master standard data, 200 sample data under each master standard
Power
Lithium battery can be measured 5000 times after being fully charged
display mode
BODY
Operating conditions
0 ℃ -40 ℃ (32 ° F -104 ° F); Relative Humidity below 85% No condensation
Storage environment
-20 ℃ -50 ℃; Relative Humidity is less than 85% without condensation
Dimensions
199*68*90mm
Weight
700g
Light-containing method
SCI SCE
Inter-station difference
ΔE * from < 0.2
Lighting source life
5 years more than 1.60 million measurements
Display
TFT True Color Display 2.8inch @(16:9) Resolution: 400x240
Packing size
400*240*340mm
Optional accessories
Liquid test kits, powder test boxes, micro printers
WF30-16mm
Colorimeter
16Mm large diameter, suitable for detecting texture, rough, soft, wet and other products, built-in whiteboard automatic correction, repeability accuracy < 0.05, with computer software.
IWAVE WF30 16mm large diameter Colorimeter fabric color difference leather color difference wood color difference special measuring instrument Picture

IWave WF30-16mm large-aperture Colorimeter is a WF30 series Colorimeter with a relatively large measuring caliber. It is specially used for color difference measurement of textile fabrics, leather goods, and wood furniture. The color measuring caliber is 16mm. Due to its large diameter, the WF30-16mm computer Colorimeter is very suitable for measuring some striped cloth, leather or wood products and some large-area color measurement products. The WF30-16mm large aperture Colorimeter is not only professional and practical, but also has the characteristics of high precision and automatic correction. The shape of the body is horizontal, and the measurement is stable without light leakage, which improves the measurement accuracy of the computer Colorimeter.

IWave WF30-16mm computer Colorimeter 3D animation display

IWave WF30-16mm large aperture Colorimeter Specifications

Features and advantages of IWave WF30-16mm computer Colorimeter

IWave WF30-16mm computer Colorimeter Application

IWave WF30-16mm computer Colorimeter authorization certificate and after-sales warranty

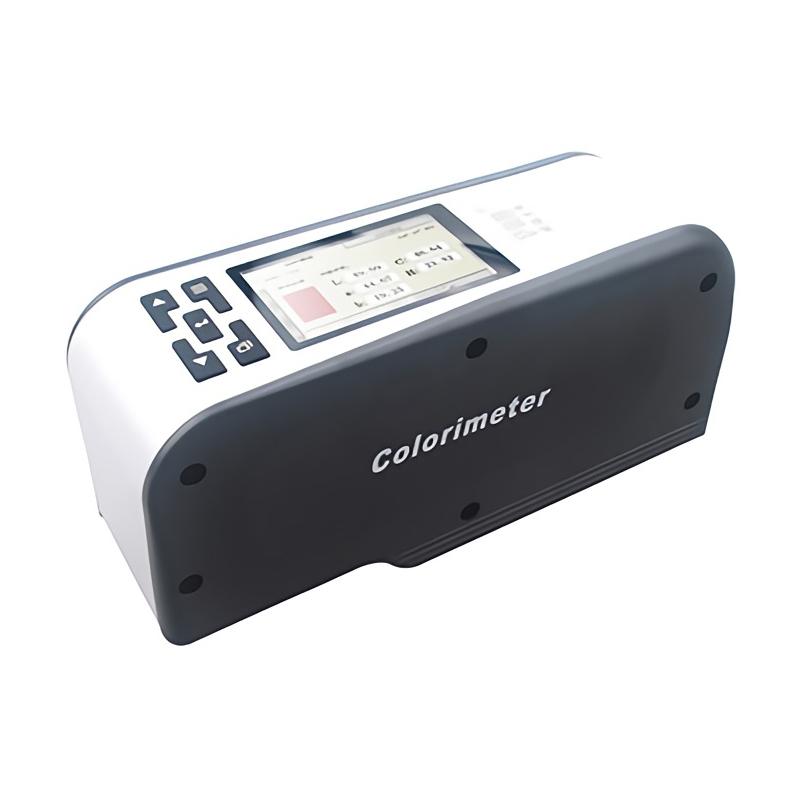

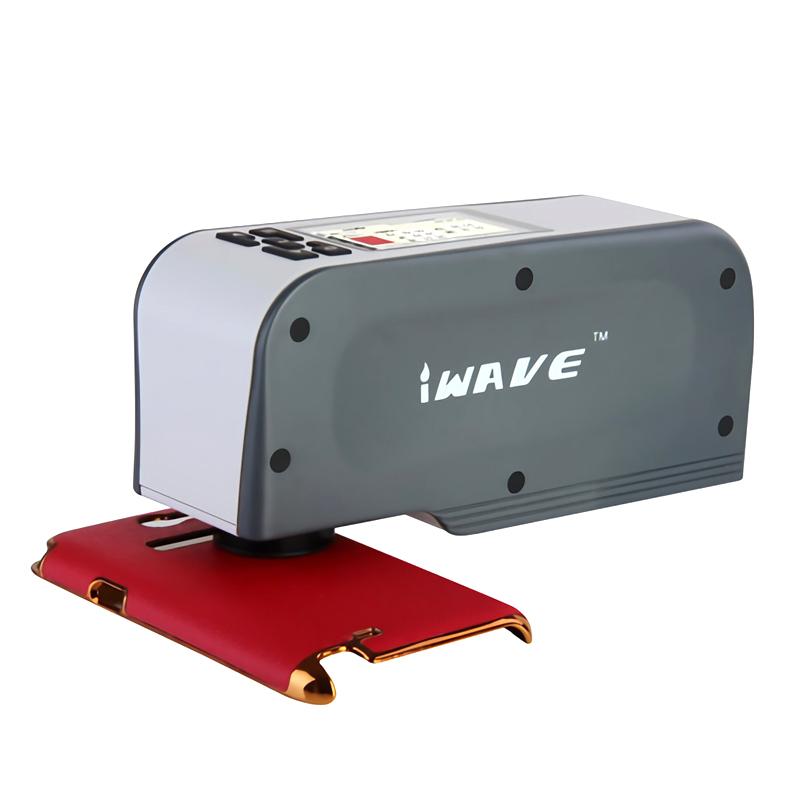

Front and side view of IWave WF30-16mm computer Colorimeter

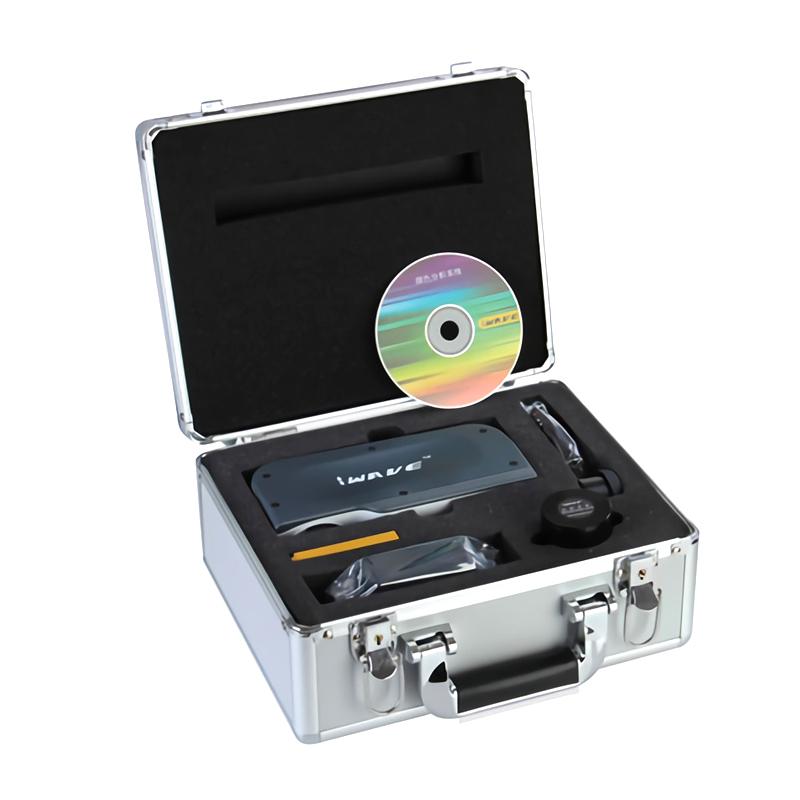

IWave WF30-16mm computer Colorimeter packing list and interface details

IWave WF30-16mm computer Colorimeter application example diagram


FAQ
QMeasure Protective Gloves, uneven surface, rough surface, uneven surface, wrinkling surface, flat surface, flat surface, or wrinkling, all need to be detectable
A Recommendation WF30-16 Recommendation WF30-16 16Mm large diameter, suitable for detecting texture, rough, soft, wet and other products, built-in whiteboard automatic correction, repeability accuracy < 0.05, with computer software.
QWhich model of barite powder color difference meter is applicable?
A IWAVE WF-30 16mm + WF series color difference meter liquid, powder multifunctional test accessories.
QColor readers suitable for measuring creams, powders, liquids, etc. in the cosmetics industry?
A Hello, you can use the WF30-16mm model with 16mm multi-functional test accessories instrument. In addition, Sanenchi's NH series and NS series supporting multi-functional test components can also be tested.
QDoes this color reader comply with GB/T21245 standard?
A This color reader is suitable for GB/T21245. Please consult customer service for detailed application definition.
QIs there a color reader who can measure powder? calcium carbonate, talc powder
A Test powder color difference, compared to imports, in fact, domestic (CN) current technology can not achieve the stability of imported color reader, but the following two effects can also be, the first: 3nh YS3010 colorimeter https://www.nbchao.com/p/9703/, need to be equipped with powder test box; the second: Weifu WF color reader https://www.nbchao.com/list24_b12_298.html, need to buy powder multi-functional test accessories (https://www.nbchao.com/p/7878/).
QWhat accessories does this color reader need to measure the liquid color difference?
A Hello, it is possible, as long as you buy another liquid test component, you can test the liquid color difference, thank you!
