LABO 17074 Corrugated Cardboard adhesive strength test stand
SEMeasure the adhesive strength between corrugated Cardboard layers, made of stainless steel, in line with GB and QB standards.
Model：
17074
Labo 17074 Cardboard adhesive strength test standSPEC
Labo 17074 Cardboard adhesive strength test standDetails
Labo 17074 Cardboard adhesive strength test standPacking list
- SKU
- NB013534
- material
- stainless steel
- Upper pressure needle length
- 30±1mm
- Lower support pin length
- 40±1mm
- Weight
- 0.8kg
- applicable standard
- GB/T6548-2011、QB/T1671、TAPPI T821
- Upper part pressure needle diameter
- < unk > (3.5 +/- 0.1) mm (A corrugated), < unk > (3.0 +/- 0.1) mm (C corrugated), < unk > (2.0 +/- 0.1) mm (B corrugated), < unk > (1.0 +/- 0.1) mm (E corrugated)
- Number of upper pressure needles
- 4 (A corrugated), 4 (C corrugated), 6 (B corrugated), 6 (D corrugated)
- Lower part support needle diameter
- < unk > (3.5 +/- 0.1) mm (A corrugated), < unk > (3.0 +/- 0.1) mm (C corrugated), < unk > (2.0 +/- 0.1) mm (B corrugated), < unk > (1.0 +/- 0.1) mm (E corrugated)
- Number of needles supported in the lower part
- 5 (A corrugated), 5 (C corrugated), 7 (B corrugated), 7 (E corrugated)
- Packaging Dimensions
- 275*226*84mm
- Weight
- 1.6kg
17074
Cardboard adhesive strength test stand
Measure the adhesive strength between corrugated Cardboard layers, made of stainless steel, in line with GB and QB standards.
Introduction
LABO Huike LABO 17074 Corrugated Board Bonding Strength Test Rack is used to measure the bonding strength between corrugated board layers, such as single-layer corrugated board, that is, the bonding strength between face paper and corrugated paper, corrugated paper and inner paper, which is a special , Standard test equipment.
Features
LABO Huike LABO 17074 corrugated cardboard adhesion strength test frame is made of stainless steel, suitable for various flute types, and can adjust various flute distances arbitrarily.

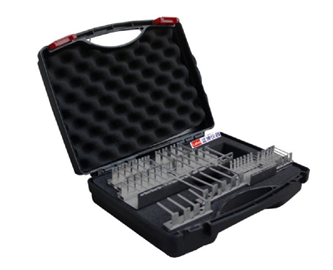

product display
FAQ
QThese products need to be exported to Europe, can they meet European export standards?
A
Meet the European Union CE certification
