Cross-cut Tester for 121~ 250 micron film thickness solid substrate test

TQC 100 grid knife is imported from the Netherlands, there are CC1000, CC2000, CC3000 three series, this 100 grid knife products are three series can be used to test the thickness of the solid substrate is 121 ~ 250 microns, the three 100 grid knife has its own characteristics in the structural design, users can do specific 100 grid knife selection according to their own experimental needs.

The models of this 100 grid knife include VF1844, SP1692 and SP1682, with 6 teeth and 3mm tooth spacing.

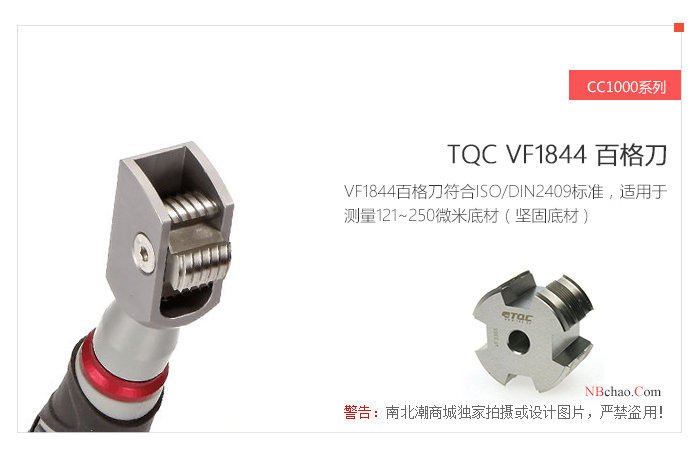

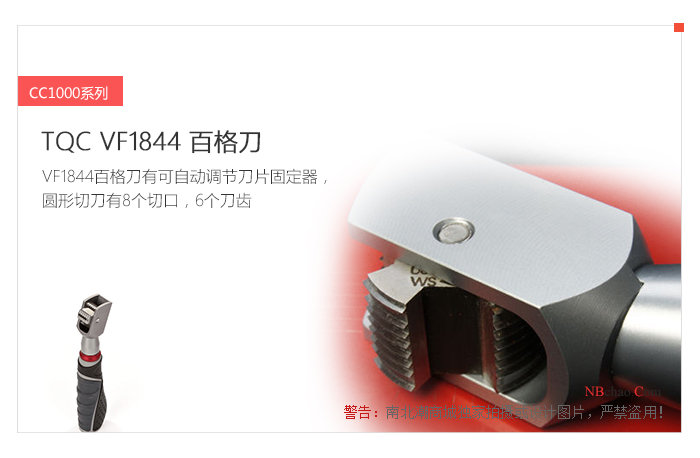

1. Adjustable blade holder 100 grid knife -Model VF1844

VF1844 is CC1000 series, this series of 100 grid knife features automatic adjustment of the blade holder, and the round cutter has 8 incisions, giving users better experimental repeatability.The VF1844 100-grid knife meets the standard ISO2409 and has a soft and comfortable grip handle that is ergonomic.

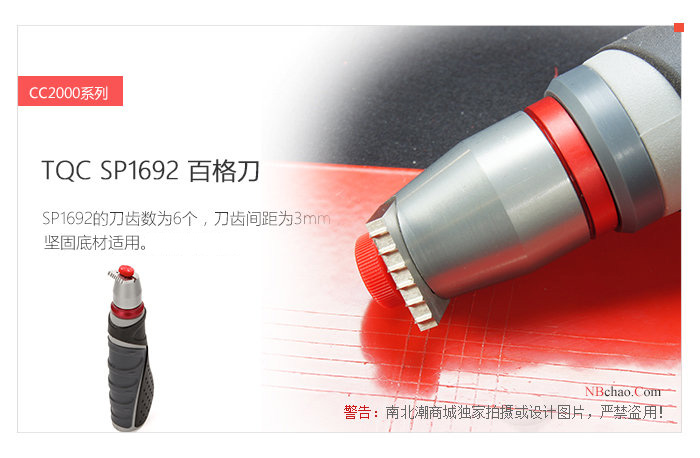

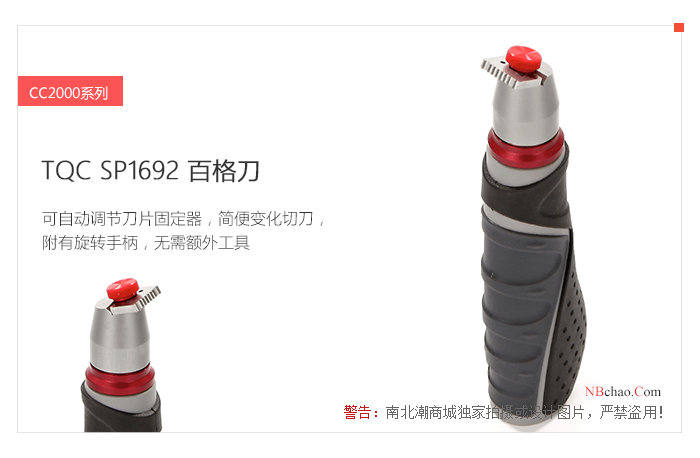

2. The blade holder can be automatically adjusted and a rotating handle is attached——SP1692 model

SP1692The 100 grid knife is the CC2000 series 100 grid knife, this series of 100 grid knife is characterized by the automatic adjustment of the blade holder and the attached rotary handle, no need to use additional tools to rotate, simple and convenient operation.SP1692The number of teeth of the 100-grid knife is 6, and the spacing of the blades is 3mm.

3. Precise adjustment of cutting depth - SP1682 model

SP1682The 100 grid knife belongs to the CC3000 series, and the feature of this series of 100 grid knife is that the blade holder keeps a fixed distance between the paint film surface and the two auxiliary wheels, and can accurately adjust the cutting depth to ensure the repeatability of measurement.SP1682The thickness of the film is 121~250 microns.

The above are the three types of 100-grid knives suitable for measuring the adhesion of film thickness in the range of 121~250 microns, which are often used for 100-grid test tests.

Packing list：

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
