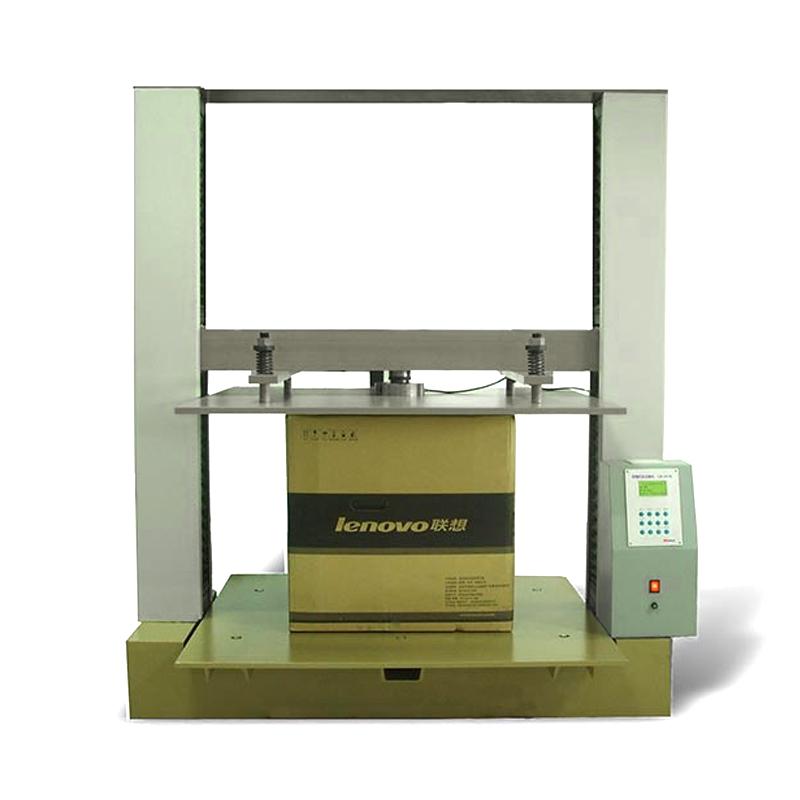

LABO LB-KY10A Compressive Tester

LB-KY10A

Compressive Tester

Introduction

Labo LB-KY10A compressive Strength Tester is used to test cartons and other packaging containers, transportation packaging compressive strength testing equipment to meet the following three test function requirements:

•       Compressive test: used to determine the ultimate compressive strength of the sample, the testing machine automatically records the maximum pressure value and the compressive deformation of the sample;

•       Constant value test: the overall performance of the box can be detected according to the set pressure or deformation, and the necessary test data can be provided for the design and selection of the box;

•       Stacking test: A certain pressure value is continuously applied to the specimen for a specified period of time, which is used to determine the pressure durability of the specimen under simulated packaging storage and transportation conditions. According to the relevant standards, it can carry out stacking tests under different conditions such as 12 hours and 24 hours.

The equipment has the functions of test data display, memory storage, statistical analysis processing and test report printing.

Features

With high-precision load cells, the accuracy is controlled at <0.5% at the factory, which is better than the ISO standard of ±1%. The test is completed automatically, and the equipment has the functions of displaying, memory storage, analysis, statistical processing and printing of test reports of test data, which is easy to operate. The preset test speed and return speed as well as the free adjustment of the position of the upper pressure plate make the test faster and more effective. The load cell is located above and connected to the upper platen, and the user or the metrology and calibration department (third party) can easily calibrate the instrument by placing the standard sensor in the middle of the upper and lower platen for calibration.

Security measures:

• Measurement and control system pressure value overload protection;

• Automatic locking transmission protection when power is off;

• The sensor pressure value is automatically reset and returned to zero display;

• The test is completed and the initial position is automatically returned;

• Preset test speed and return speed make testing faster and more effective.

Pictures

Note: Type A is a computer software measurement and control system (configuration: brand computer host + monitor + keyboard and mouse)

      Type B is LCD Chinese display measurement and control system (configuration: Chinese LCD screen measurement and control system + micro printer)

      In addition to the above models, other non-standard specifications can be customized.

Packing list：machine X1, manual X1, certificate X1, warranty card X1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
