Pointer Force Gauge NK-100 Hypertherm Force Gauge

NK-100

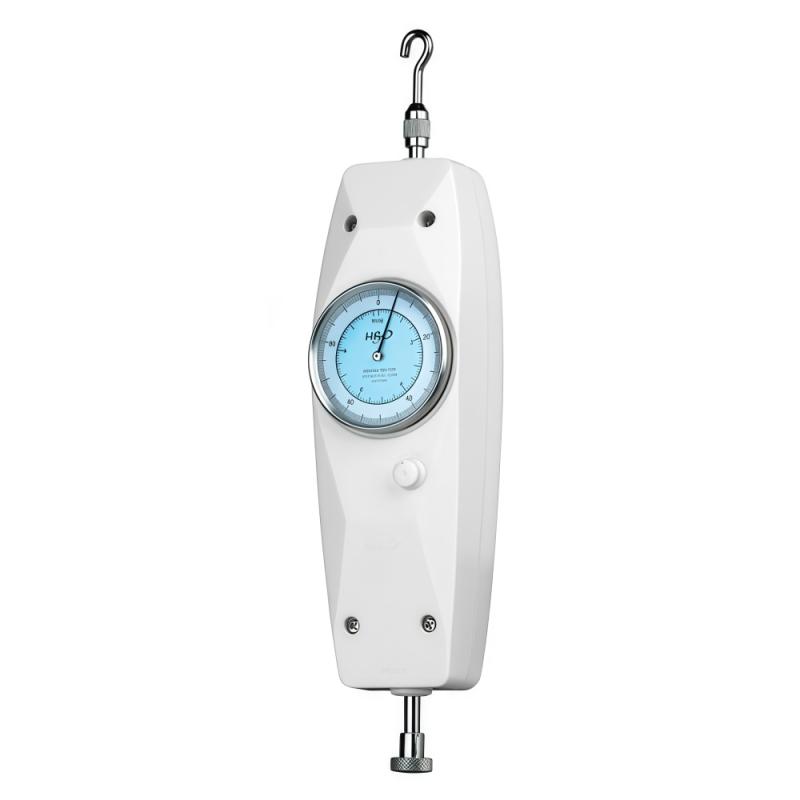

Force Gauge (Pointer)

Pointer type, Maximum Measured value 100N 10kg, Minimum Measured value 10N 1kg, Load Graduation 0.5N 0.1g, error of indication +/- 1%, push-pull rod stroke 10mm

Introduction

Hypertherm Instruments NK- 100 pointer dynamometer is a small volume pressure and tension measuring instrument with high measurement accuracy and easy portability. NK- 100 /200/300/500 pointer dynamometer is suitable for tensile and compressive loads, insertion and extraction force tests, destructive tests, etc. It has a simple structure and easy operation.

The pointer dynamometer is a mechanical push-pull force gauge that can replace the tubular dynamometer and can be installed on a variety of workbenches and adapted to various fixtures. The maximum value that the NK- 100 pointer force gauge can measure is 100 N.

Features

1. NK -100 pointer dynamometer can dually display N and kgf units without unit conversion.

2. Pointer type indication, convenient, accurate and high-precision reading.

3. Handheld design, compact and easy to operate, can be installed and used on various workbenches, and can be adapted to various fixtures to facilitate testing of various products.

4. The packaging is reliable and exquisite, easy to transport, easy to store and maintain.

5. Freely switch between peak hold and load real-time value indication, easy to use.

Product Structure

Dimensional drawing

Measurement methods

1. Install the NK-100/200/300/500 pointer dynamometer on a suitable machine for measurement.

2. When measuring, keep the object being measured and the pointer dynamometer in a straight line, otherwise the sum value read will be inaccurate.

3. Measure changes in load

1) When the switch knob is set to the continuous load value (TRACK), the pointer will move as the load value changes.

2) When the switch knob is set to the peak load (PEAK), when the measurement reaches the maximum load value, the pointer will stop at the position of the maximum load value. The pointer can be reset to zero by pressing the toggle knob.

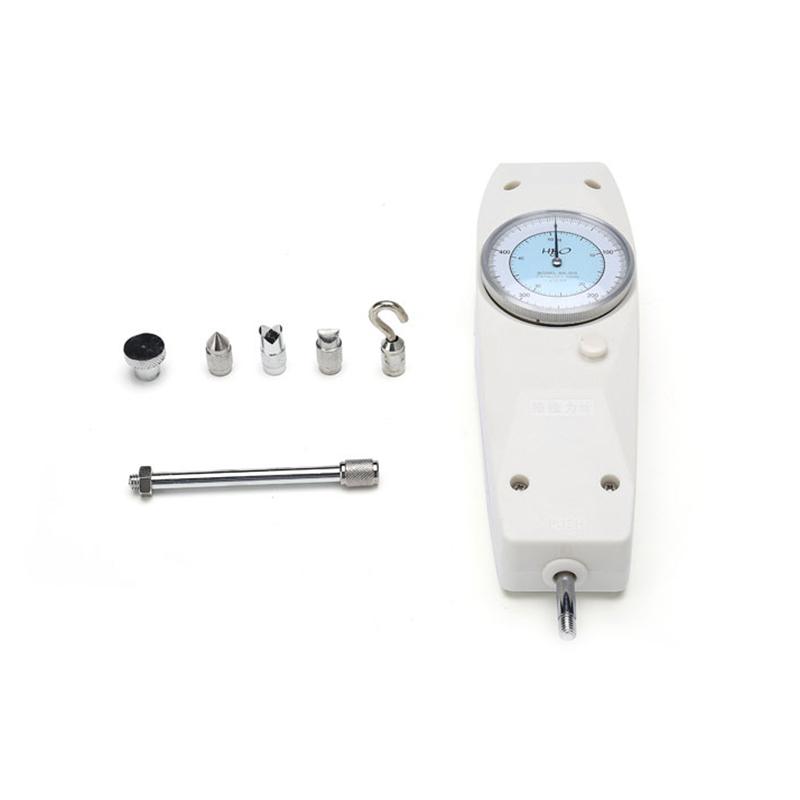

Product actual pictures

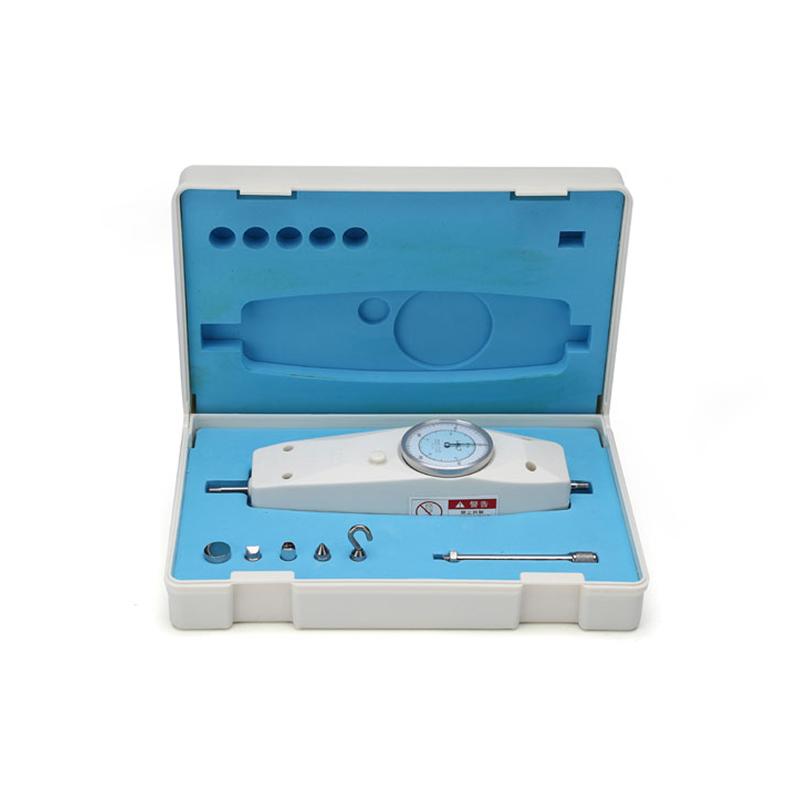

Packing list：Force Gauge x1, Certificate x1, Manual x1, Instrument case x1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
