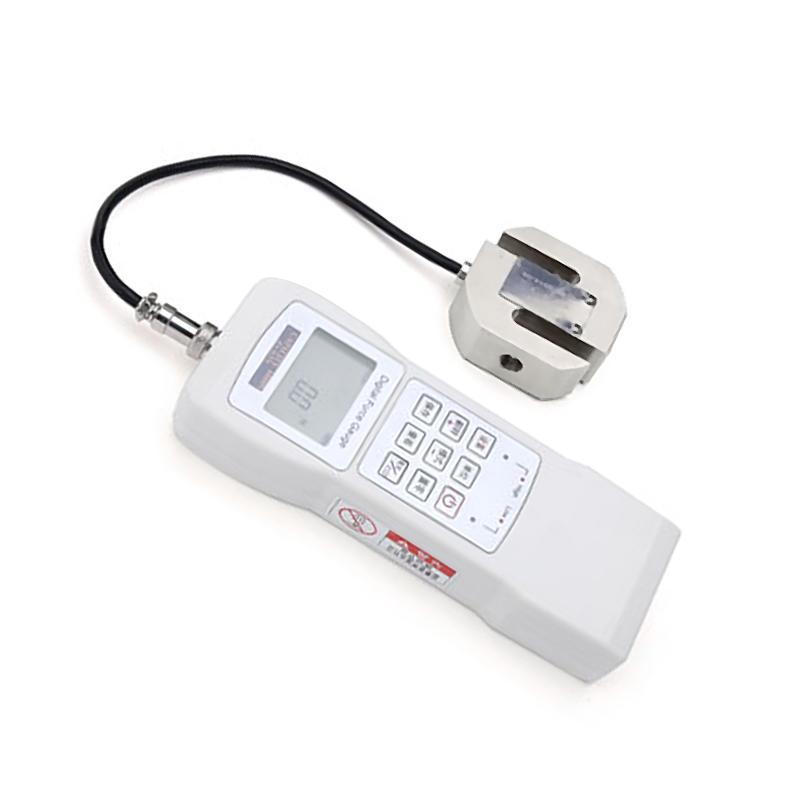

Precision Force Gauge HG-5000 Hypertherm Force Gauge error is only 5

HG-5k

Force Gauge (Digital Display)

Measured value 5000N 500kg 1100lb, resolution 1N, 0.1kg, 0.1lb, Sensors structure Sensors external, error of indication +/- 0.5%

Introduction to HG-5000 Precision Push-Pull Gauge

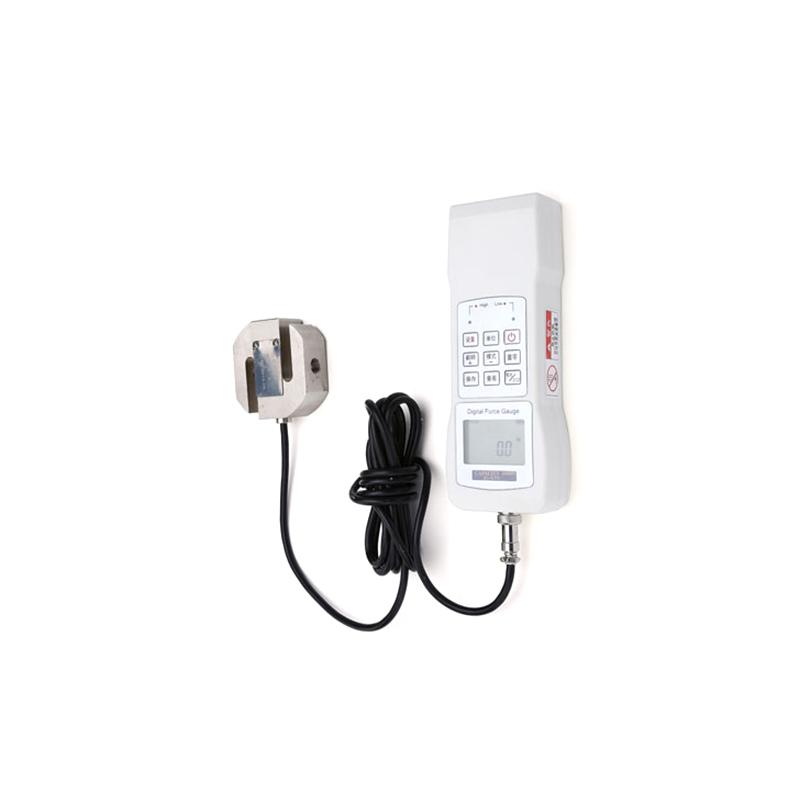

HG-5000 precision push-pull gauge is a HG series digital push-pull gauge produced by Haibao Instruments. It uses a segmented LCD to display the measured push-pull force data and has a green backlight display function. This precision push-pull gauge is an external sensor type, with a serial output interface, which can be connected to print test data, and can also be connected to a host computer to operate and manage test data.

The maximum measured value of HG-5000 precision push-pull gauge is 5000N.

Features

1. Freely set the upper and lower limit deviation value, automatic sound alarm and level signal output.

2. Test direction display (pull +, push -)

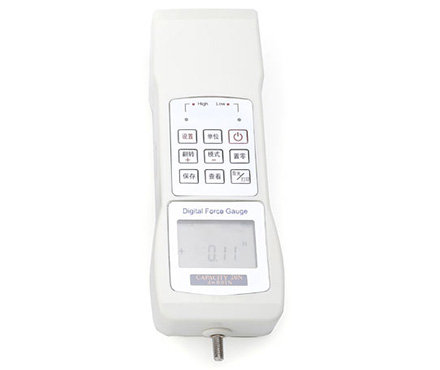

3. HG-5000 precision push-pull gauge adopts a segmented liquid crystal display with a green backlight screen.

4. The acceleration of gravity can be set.

5. Store 99 sets of test data, and can automatically calculate the average, maximum and minimum values of the stored data.

6. High precision, high resolution and high stability. Sampling speed up to 120Hz.

7. Automatic shutdown without operation (the time can be set freely from 0 to 99 minutes).

8. An external smart charger is used, which can be charged safely and prolong the battery life.

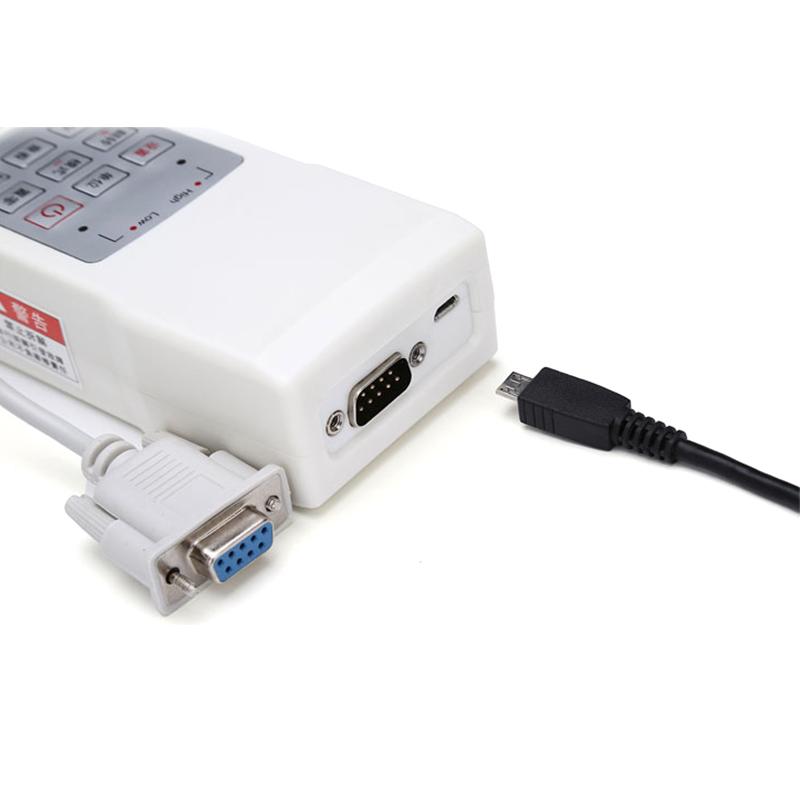

9. Serial port output (baud rate 9600), which can print 10 sets of stored test data and maximum, minimum, average, qualified or unqualified judgments.

10. It can be connected to the host computer to read, print, delete, analyze and other operations on the stored data.

11. Cooperating with Haibao electric test machine, it can realize various new and practical functions such as stop immediately after breaking, force value maintenance, applied force limit, fatigue test and so on.

Pictures

Appearance structure diagram

Dimensions

patent certificate

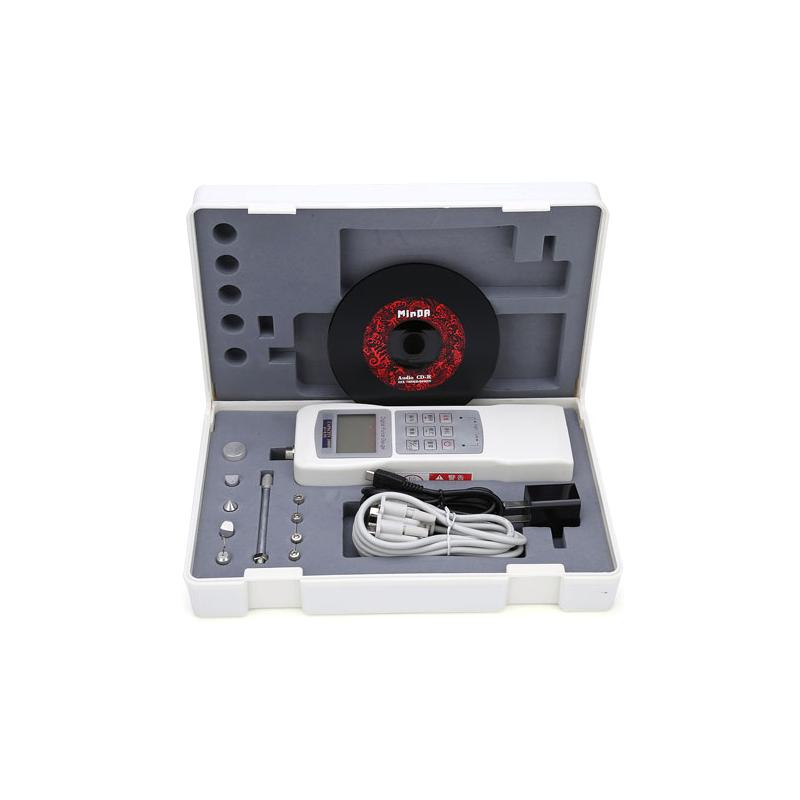

Packing list：Force Gauge x1, Certificate of Conformity x1, Warranty Card x1, Manual x1, Instrument Case x1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
