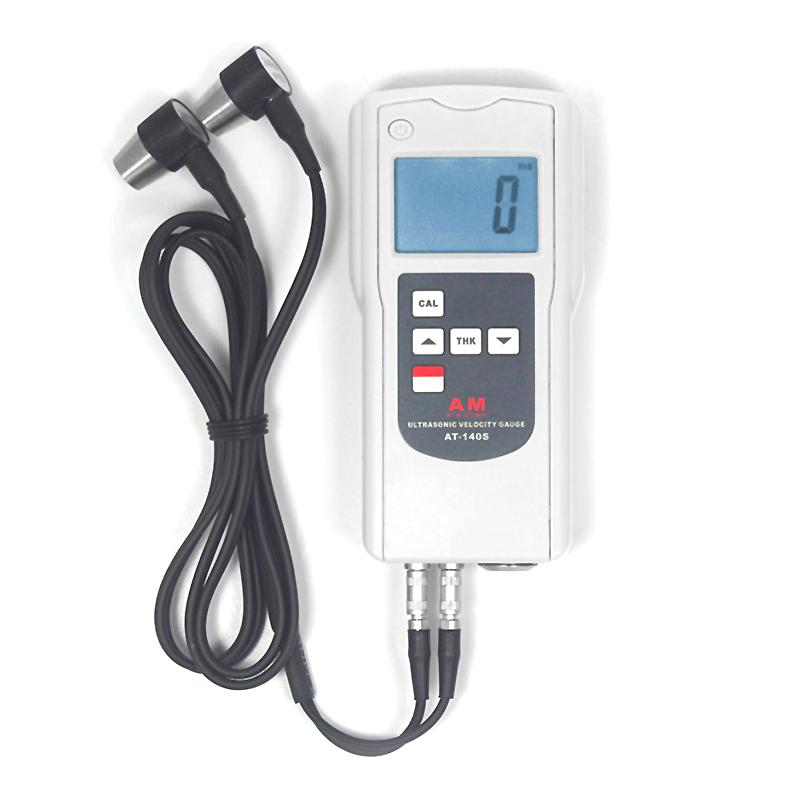

AMITTARI AT-140S Ultrasonic Speed of sound instrument Speed of sound range: 500~9000m/s
AT-140S
AMITTARI AT-140S Speed of soundSPEC
AMITTARI AT-140S Speed of soundDetails
AMITTARI AT-140S Speed of soundPacking list
- SKU
- NB013616
- Measurement mode
- ultrasound
- Measurement Speed of sound
- 500~9000m/s
- margin of error
- 0.5% H + 0.2 (H is the thickness of the material being tested)
- Probe style
- Line probe
- Interface
- Bluetooth, RS-232, USB Interface
- Power
- 4X1.5vAAA No. 7 battery
- Environmental temperature
- -5~45℃
- Working Relative Humidity
- <85%RH
- Machine Weight
- 130G (without battery)
- Host size
- 140*70*30mm
- set thickness
- 0.70-50.00 mm
- field of application
- Soft materials such as wood and rubber
Introduction

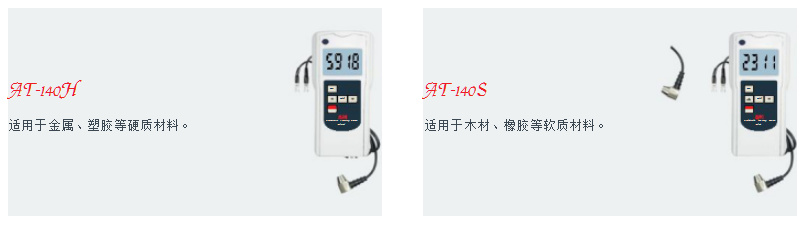

AMITTARI ultrasonic velocity meter is divided into two models: AT-140 H and AT-140 S. AT-140 H is suitable for hard materials such as metal and plastic; AT-140 S is suitable for soft materials such as wood and rubber. Using professional microcomputer integrated circuits and crystal materials, the measurement is more accurate. It has strong transmitting power and high broadband receiving sensitivity. It can adapt to probes of different frequencies, so it can measure severely corroded rough surfaces and even some gray cast iron, and its application range covers almost all industrial industries.
Features
* It has functions such as coupling status prompt, automatic shutdown and manual shutdown.
* Use "USB data line output" and "RS-232 data line output" to collect data with PC
* In addition, "Bluetooth⢠data output" is available as an option.
- 1ASTM E797-2021《Standard Practice for Measuring Thickness by Manual Ultrasonic Pulse-Echo Contact Method》
- 2GB/T 11344-2008《Non-destructive testing - Practice for measuring thickness by ultrasonic pulse-echo contact method》
- 3JJF 1126-2004《Ultrasonic Thickness Gauge calibrating specification》
- 4ZB N 77001-1989《General Technical Conditions for Ultrasonic Thickness Gauge》
