Digital Tensilometer HF-2 Hypertherm Upgraded Edition Digital Tensilometer

HF-2

Force Gauge (Digital Display)

Display 2N; 0.2kg; 0.44lb, load Graduations 0.001N, 0.1kg, 0.0002lb, Sensors structure Sensors built-in, error of indication +/- 0.5%

Introduction

Haibao Instruments HF-2 /5/10/20/50 digital tensile gauge is Haibao push-pull gauge HF series, HF series digital tensile gauge is an upgraded model of HG series, and realizes greater strength on the basis of HG series The data storage capacity is up to 200 groups, and it has the function of key action force and resilience test and the first peak hold function, etc., with more powerful functions.

HF-2 /5/10/20/50 digital display force gauge is a push-pull force gauge with a built-in sensor. The corresponding measured load values are 2N, 5N, 10N, 20N, and 50N. This tension gauge is small in size and easy to carry .

Features

1. HF-2 /5/10/20/50 digital tension gauge has a unique function of holding the first peak during the test process.

2. Unique key action force and resilience test.

3. The neutral acceleration value can be set.

4. The accuracy and resolution are very high, and the sampling speed can be as high as 960HZ.

5. Freely set the upper and lower deviation values, automatic sound alarm and level signal output.

6. Display the test direction (pull +, push -).

7. HF-2 /5/10/20/50 digital tension gauge adopts dot-matrix liquid crystal display and green backlight screen.

8. The operation interface can be displayed in Chinese or English, and the displayed test content can be flipped 180 degrees, which is convenient for multi-angle measurement.

9. With large storage function, it can store 200 sets of test data, and automatically calculate the average value, minimum value and maximum value of the stored data.

10. Automatic shutdown without operation (freely set the time from 0 to 99 minutes).

11. Peak hold and peak release functions (can be set from 0 to 99 seconds).

12. Serial port communication, computer display force value curve, force value table and other display methods, and data processing, such as statistical analysis.

13. Serial port output, which can print the stored test data and the maximum, average and minimum values.

Applications

HF-2 /5/10/20/50 digital tensile force meter is suitable for push-pull failure test, push-pull load test, insertion force test, etc., and can be combined with machine table and fixture to form a small test machine.

Product Structure

The structure of HF-2 /5/10/20/50 digital display tension gauge includes: contact connecting rod, display window, buttons, lower limit indicator light, upper limit indicator light, power adapter jack, communication interface, level signal output interface. See below

Pictures

patent certificate

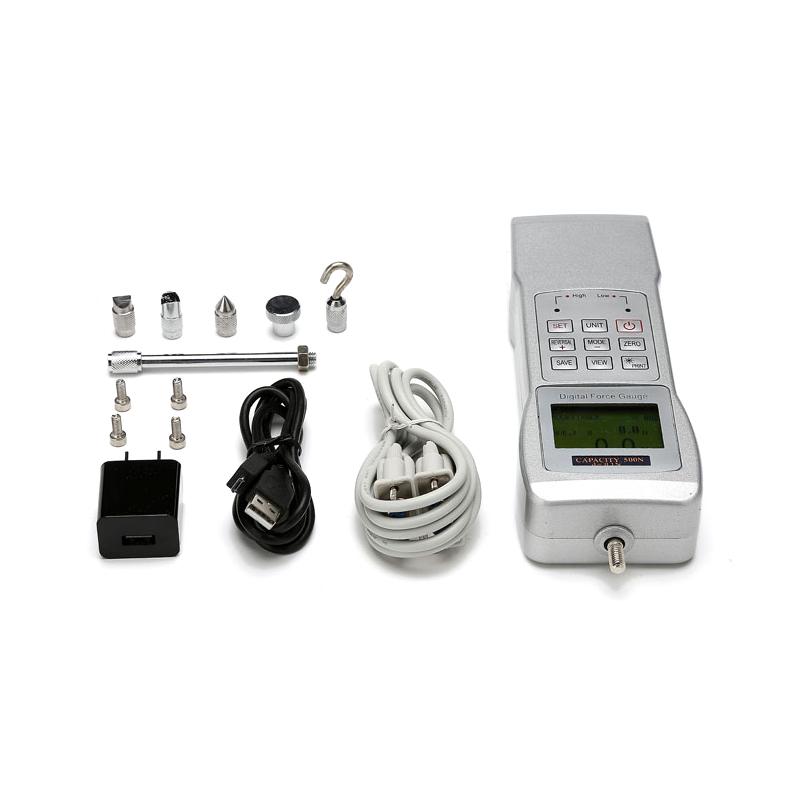

Packing list：Force Gauge x1, Certificate of Conformity x1, Warranty Card x1, Manual x1, Instrument Case x1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
