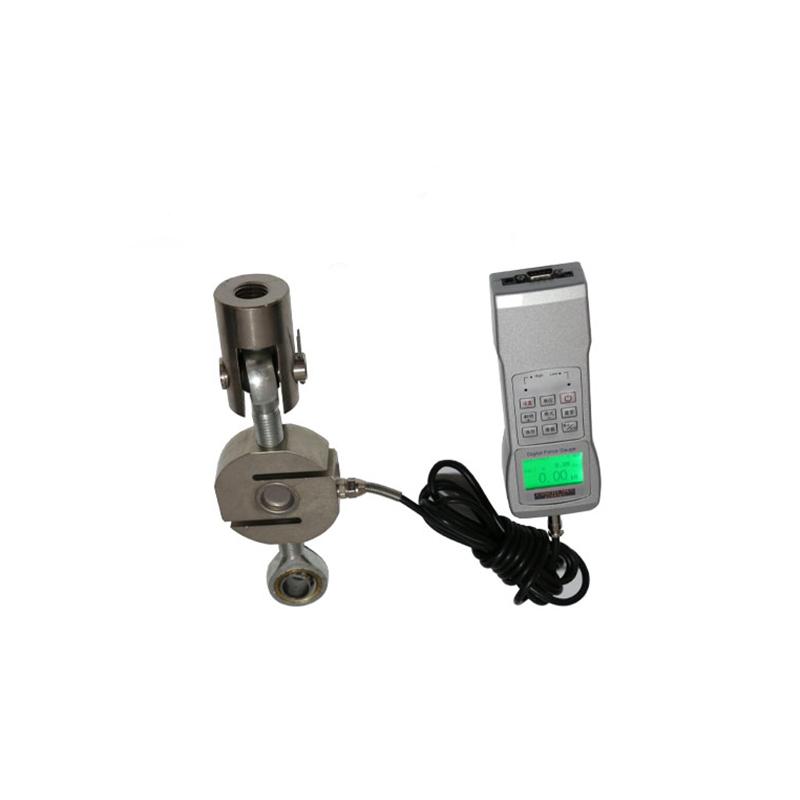

Tensile instrument HF-1000 Hypertherm HF series digital display push-pull force testing instrument
SE
HF-1k
HBO HF-1k Force Gauge (Digital Display)SPEC
HBO HF-1k Force Gauge (Digital Display)Details

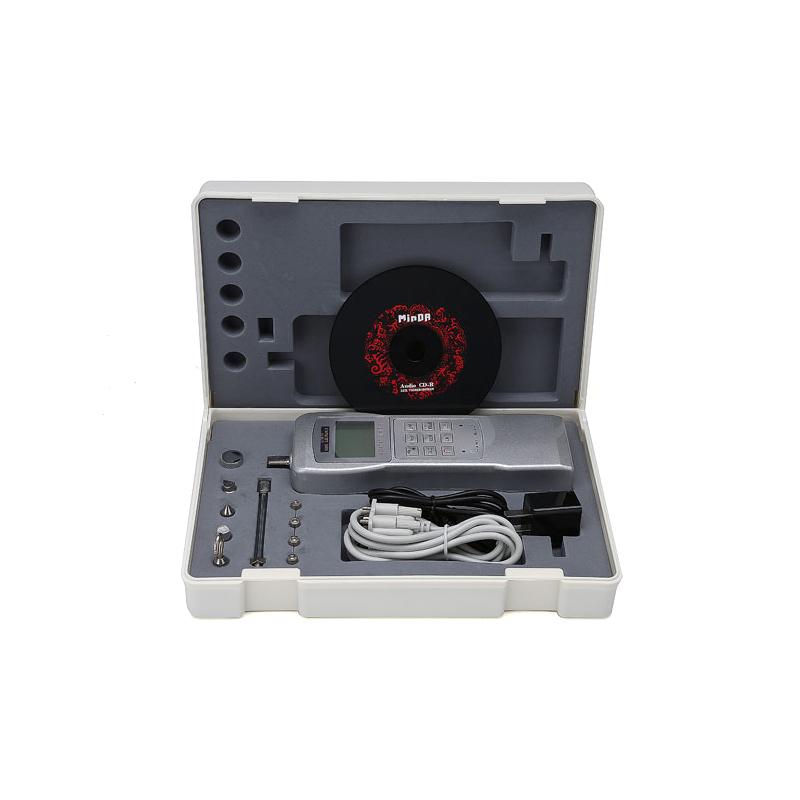

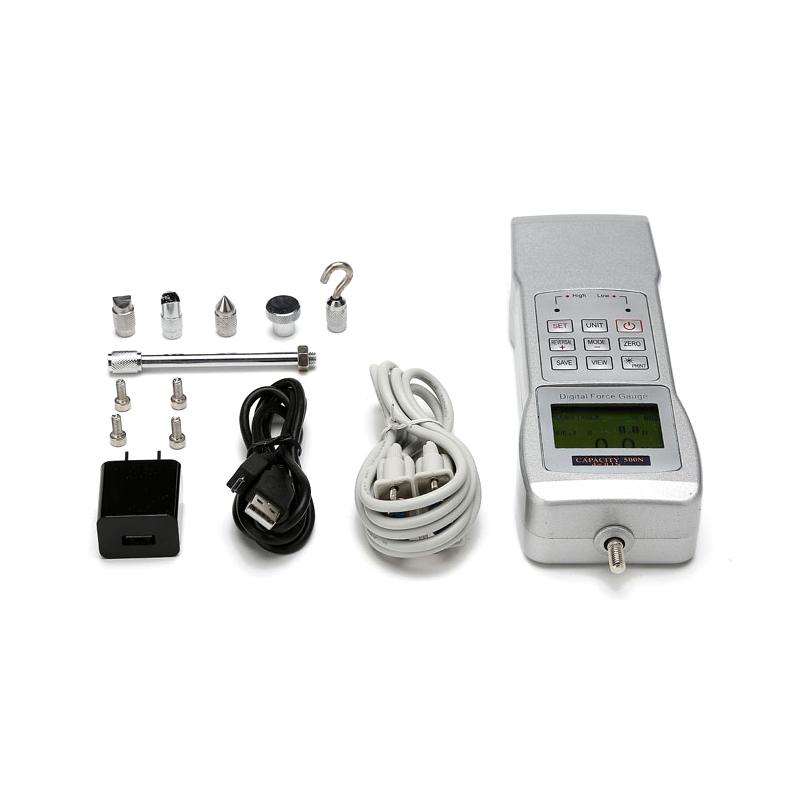

HBO HF-1k Force Gauge (Digital Display)Packing list
- SKU
- NB001366
- Display type
- 1000N；100kg；220lb
- Load Graduation
- 0.1N；0.01Kg；0.1lb
- Sensors structure
- external
- Precision level
- Level 0.5
- error of indication
- ≤±0.5%
- Power Supply
- Lithium Battery: 3.7V/1000mAh
- unit
- N、KN、Kgf、gf、lbf、tf
- Charger
- AC Input：220V/50HZ、DC Output：5V/1A
- Operating temperature
- 0℃~40℃
- Storage temperature
- -20℃~70℃
- Relative Humidity
- 15%~80%
- Operating Environment
- No vibration and corrosion medium around
- Installation size
- 40Mm * 80mm screw hole: 4-M4 (instrument)
- Dimension
- 208Mm * 70mm * 41mm (instrument)
- Net Weight
- 0.36Kg (instrument)
product description
Haibao Rally Meter HF-1000 is a digital display push-pull dynamometer with external sensor, small size and easy to carry. It is an upgraded model of HG series tensile meter. It has a larger storage function and a unique first peak hold function. The HF-1000 tensIon Meter has four Operating Modes, which are peak hold mode, first peak hold mode, weight tracking mode, and key-only mode. Users can choose the appropriate measurement mode according to actual needs during measurement.
The maximum load value measured by the HF-1000 tensIon Meter is 1000N, and the load division values are 0.5N.
Product Structure
The structure of HF-1000 tensIon Meter includes: contact connecting rod, LCD, keyboard, lower limit indicator light, upper limit indicator light, power adapter jack, communication interface, level signal output interface. See below
Dimensions
Pictures
patent certificate
