Electronic tensIon Meter HF-50K Hypertherm portable electronic tensIon Meter, load 50KN

HF-50K

Force Gauge (Digital Display)

Measured value 50KN, 5000kg, 11000lb, load Graduation 0.01KN, 1kg, 1lb, Sensors structure Sensors external, error of indication +/- 0.5%

product description

Haibao Instruments HF-50K electronic tensIon Meter is an upgraded version of HG series electronic tensIon Meter. Different brackets or fixtures form a small experimental machine. The notable feature of the HF series electronic tensIon Meter is that it can maintain the first peak value during the test process and can test the key action force and rebound force, and realize the function of storing 200 sets of data.

The load value of HF-50K electronic tensIon Meter is 5000kg. The measurement value range is relatively wide and the operation is convenient.

Application

Haibao Instruments HF-50K electronic tensIon Meter is suitable for tension testing in the fields of chemical industry, machinery, construction, electronic appliances, hardware, auto parts, fire-fighting devices, etc. or scientific research institutions.

Display window parameter description

1) Test value reading area

2) Numerical unit, you can choose "N", "kgf", "lbf" three different measurement units, "kN" will appear when the external large range is installed, or "gf" will appear when the small range is installed.

3) Battery power indicator, when the battery power is very small, it should be charged in time, when the battery power is empty, the HF-10K/20K/30/50K electronic tension gauge will automatically shut down

4) Memory number for storing data

5) Data average indication: "Average" means to display the average value

6) Working mode indication

"Track": weight tracking mode;

"Peak": peak hold mode;

"FIR-PEAK": first peak mode;

“KEY-PEAK”: key-only mode.

7) Peak hold lock symbol

This symbol will be displayed if there is a peak held in the peak hold mode

8) Push-pull force direction symbol

"Down" is displayed during the pull test, and "Up" is displayed during the push test.

Pictures

patent certificate

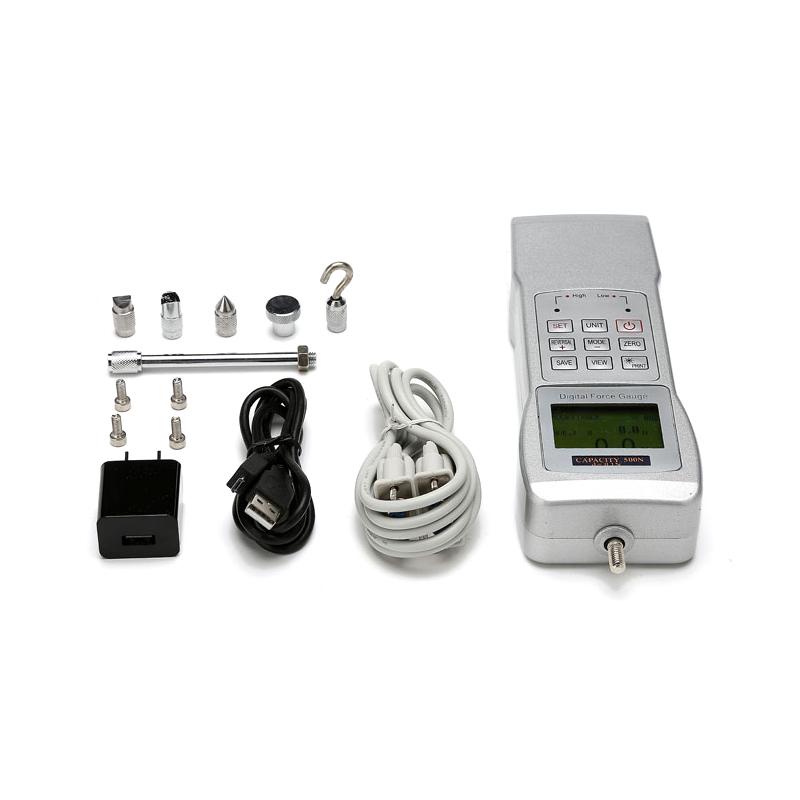

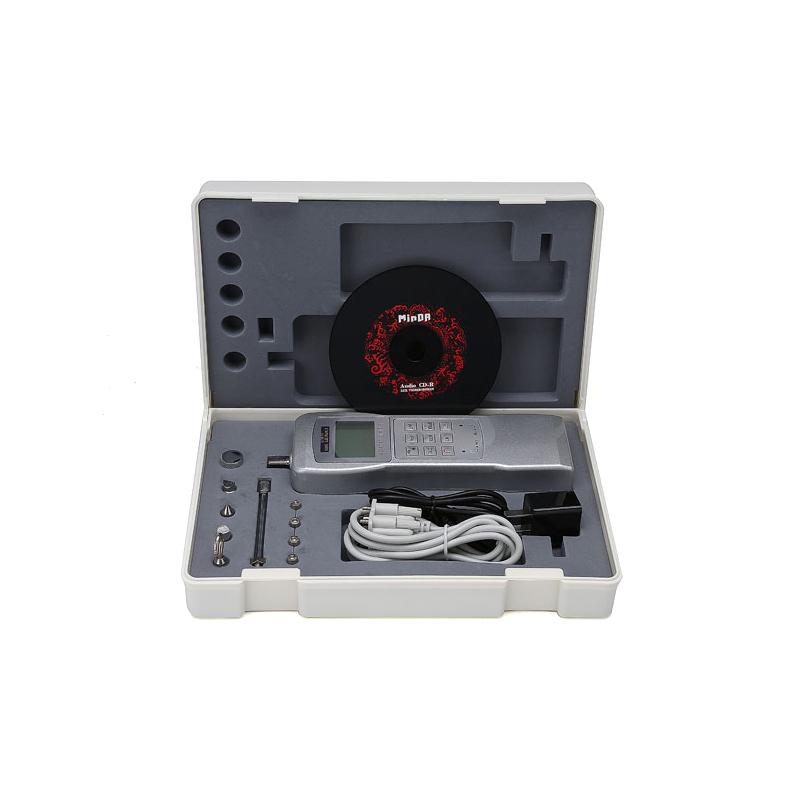

Packing list：Force Gauge x1, Certificate of Conformity x1, Warranty Card x1, Manual x1, Instrument Case x1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
