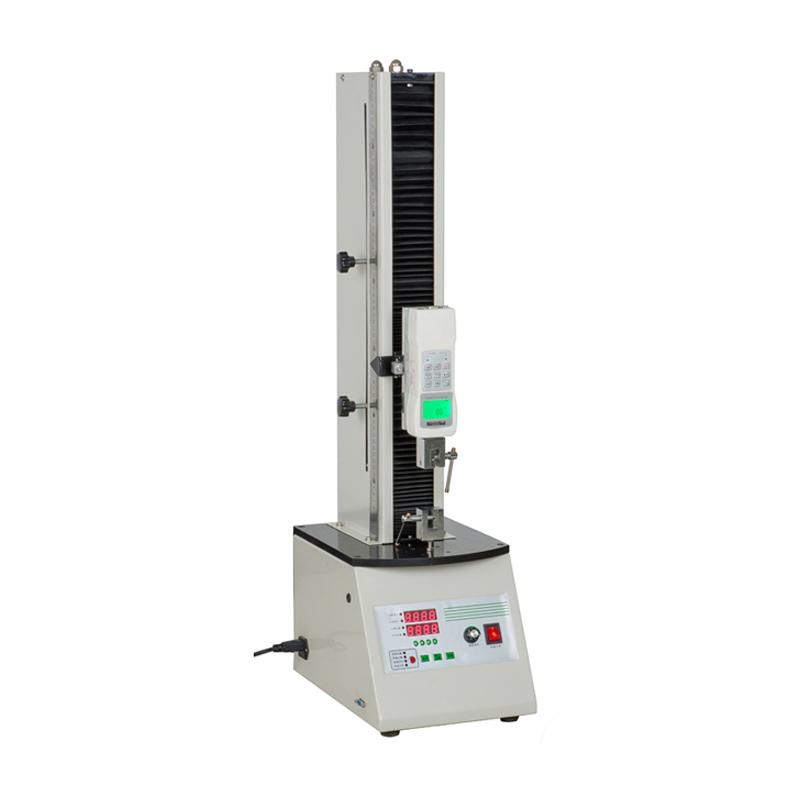

Electric single column vertical machine HDE-500 Hypertherm Force Gauge testing device, can withstand loads up to 500N

HDE-500

Electric single column vertical machine

Measured value 500N, effective stroke ≤ 400mm, speed 0~400mm/min (stepless speed regulation), electrode Power 25W.

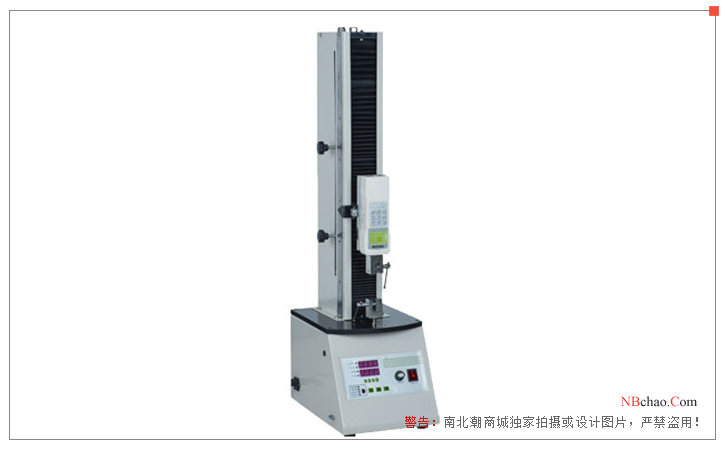

Introduction of HDE-500 electric single-column vertical machine

Haibao HDE series electric single-column vertical machine is a push-pull load test bench used with a push-pull force gauge. The model of this HDE series electric single-column vertical machine is HDE-500, which can withstand a load of 500N. The HDE-500 electric single-column vertical machine adopts a built-in double-column structure, capable of stepless speed regulation, manual/automatic, automatic control of the number of movements, in-position timing and other functions. It has good stability, wide applicability, and is easy to use. Features.

Note: The HDE series electric single-column vertical machine can be customized to increase the height. Please consult customer service for specific prices and delivery dates.

Features

1,HDE-500 electric single-column vertical machine has a force value holding mode: it can be freely set to a specified position or set the force value holding time

2. Low-noise stepless speed regulation motor automatically loads

3. Set the force value to and fro movement: set the force value to and fro movement, the set force value and the number of movements can be set freely

4. Pull and press stop function: stop immediately after the force applied to the measured object disappears

Applications

HDE-500 electric single-column vertical machine can be used in building doors and windows, power machinery, auto parts, composite materials, rubber and plastics, light industry textiles, wire and cable, scientific research institutions and other industries for testing insertion force, push-pull load, destructive test, etc. field.

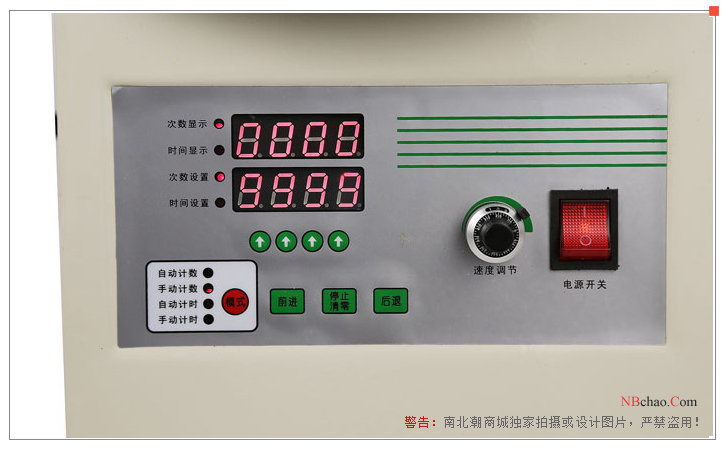

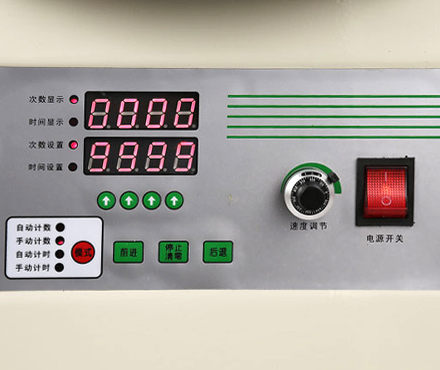

Description of function keys

▲ "Mode" key: Press this key to switch the Operating Mode

▲ "Forward" key: Press this key to start the Operating Mode and move forward (left/down)

▲ "Back" key: Press this key to start the Operating Mode and move backward (right/up)

▲ "Stop" button: press this button in any state to stop the motor movement, often press it for more than 3 seconds to reset the current number of movements to zero

▲ "Setting" button: Press this button to realize the setting of the ones, tenths, hundreds and thousands of current exercise times and force holding time

Instructions for use

1. Equipped with the required type of push-pull force gauge

2. Install the tension gauge andHDE-500 electric single column vertical machinefixture

3. Fix the specimen and both ends of the fixture

4. Adjust the travel limit protection switch

5. Turn on the main power of the machine and the power of the tensIon Meter, and set the functional parameters of the whole set of tension equipment

6. Press the forward or back button, and the work has officially started at this time

7. After the work is finished, press the forward or backward key to make the machine return to the original initial state

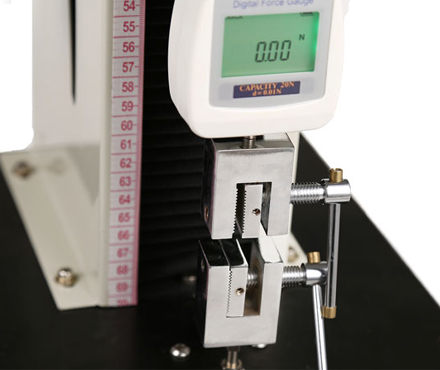

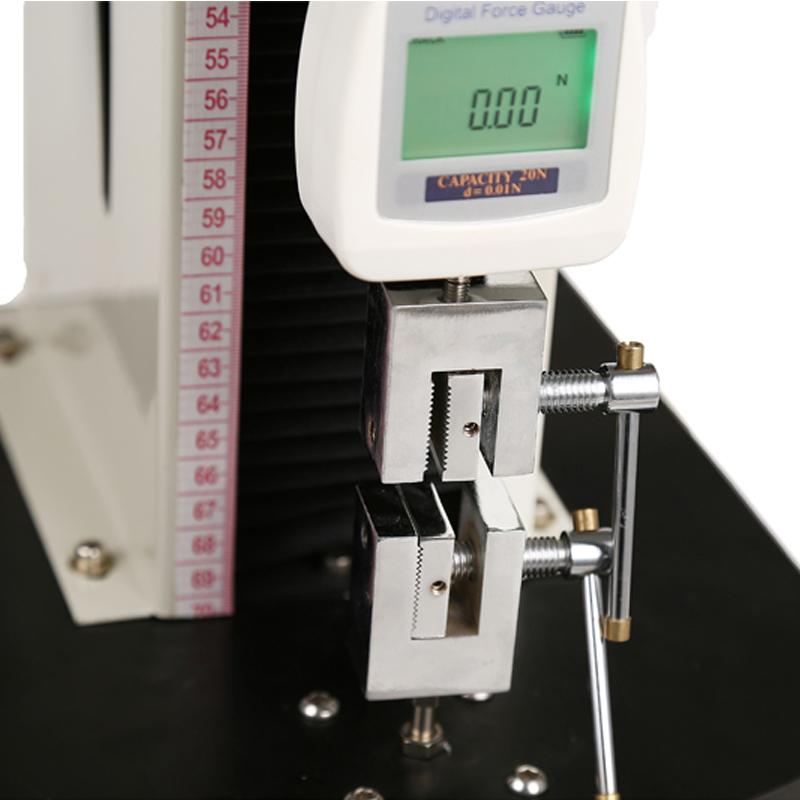

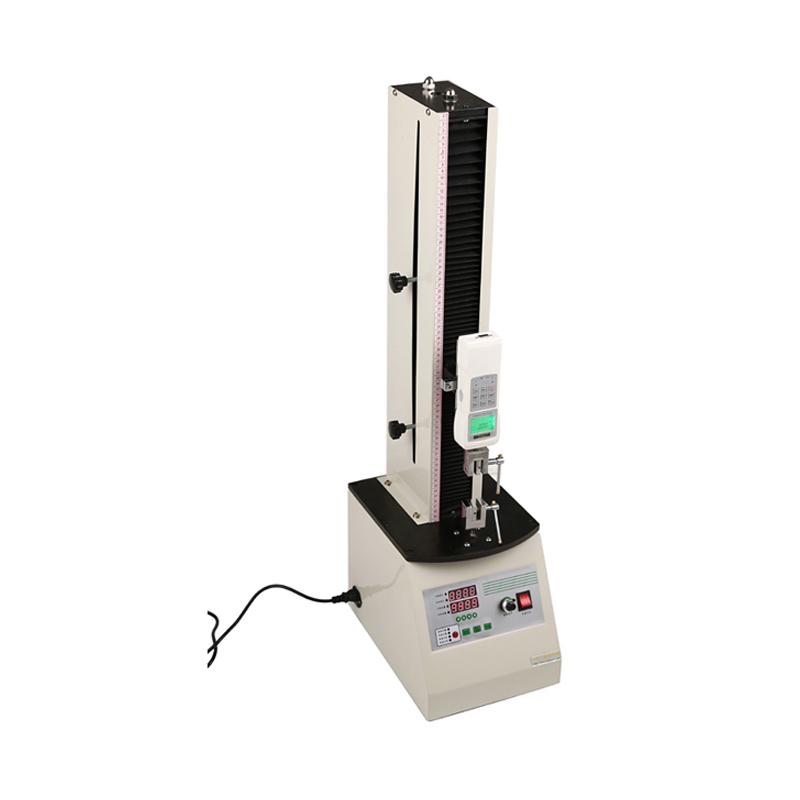

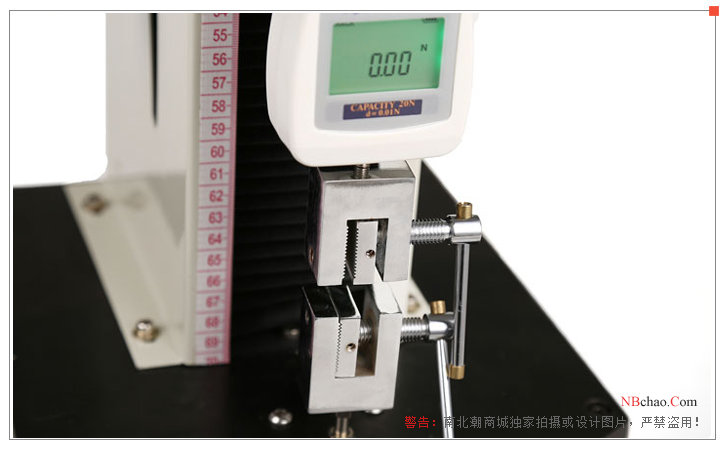

Pictures

Packing list：host x1, fixture x2, power cord x1, manual x1, certificate of conformity (warranty card) x1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
