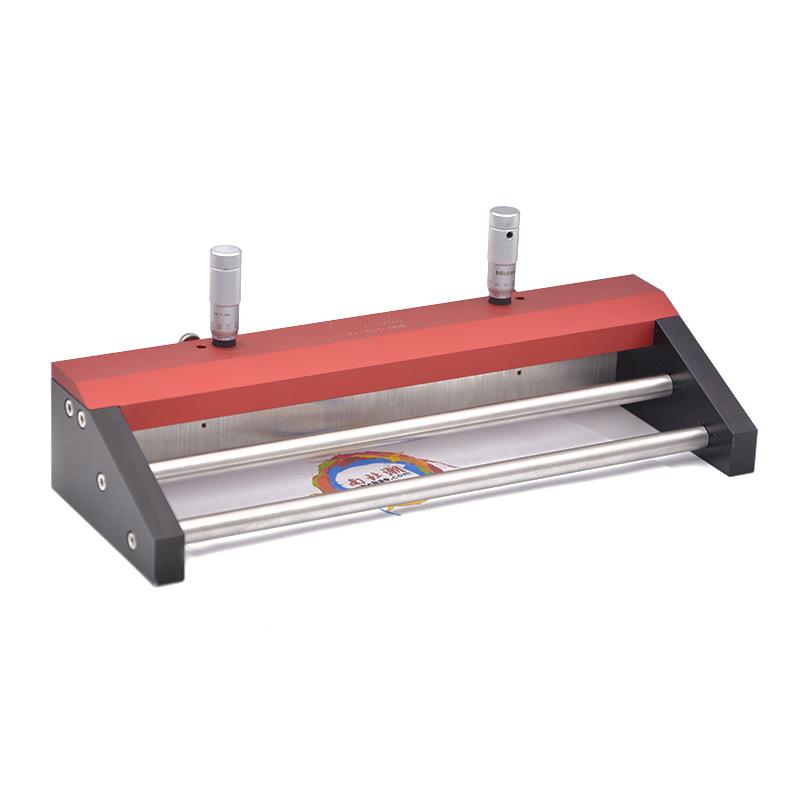

TQC VF1820 (SH0335) Micrometer Film Applicator 75mm adjustable drawdown blade Film Applicator

TQC SH0335 Micrometer Film Applicator can film 75mm width, VF1820 wet film thickness adjustment from 2μm to 8mm manually adjusted by 10μm Graduation, accuracy +/- 10μm, material anodic oxidation aluminum, through hardened stainless steel, standard ASTM D823

$1978.00/set

PromotionLoading...

Coupon

Model：

VF1820

Certificate

TQC sheen

Contact

Details SPEC Con VIDEO CAT OI

TQC sheen VF1820 Micrometer Film ApplicatorSPEC

TQC sheen VF1820 Micrometer Film ApplicatorDetails

TQC sheen VF1820 Micrometer Film ApplicatorPacking list

SKU: NB013699

type: Adjustable

WFT: 0~8000μm

Application width: 75mm

Accuracy: ±10μm

material: Anodic oxidation of aluminum, hardened stainless steel

standard: ASTM D823

Net Weight: 670g

VF1820

Micrometer Film Applicator

This is an adjustable micron film coater, which can freely adjust the wet film thickness of the coater from 2μm and in 10μm increments, and the film thickness range is 0~8mm. The TQC adjustable Film Applicator provides the user with the flexibility to adjust the precise gap size for the sample application. Ideal for projects that require accurate evaluation of changes in film thickness.

VF1820 Adjustable Film Applicator

Product Features

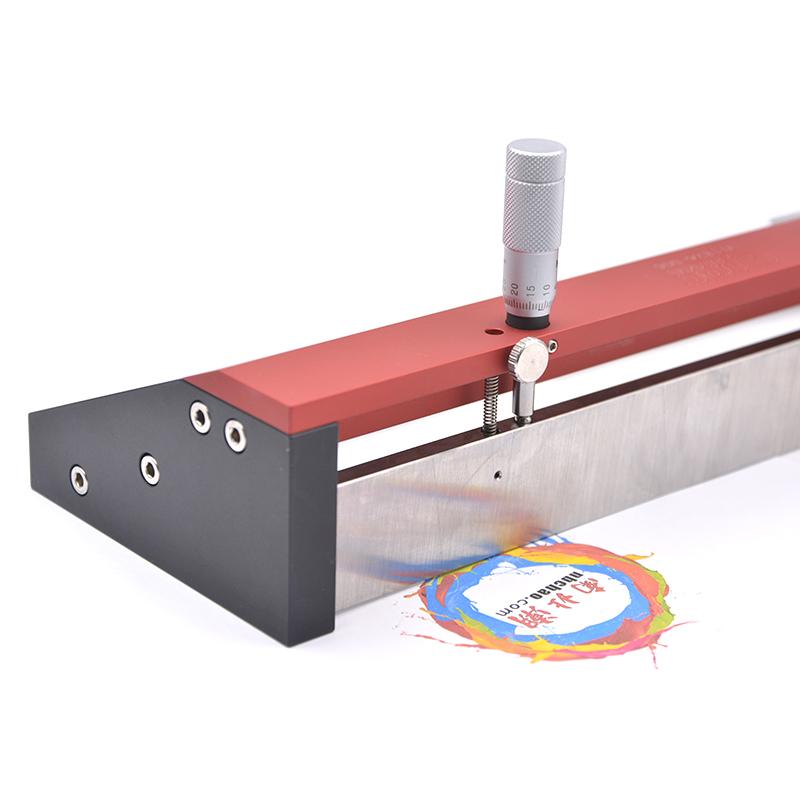

1. Precision wear-resistant stainless steel blades

2. The thickness of the wet film is up to 8mm

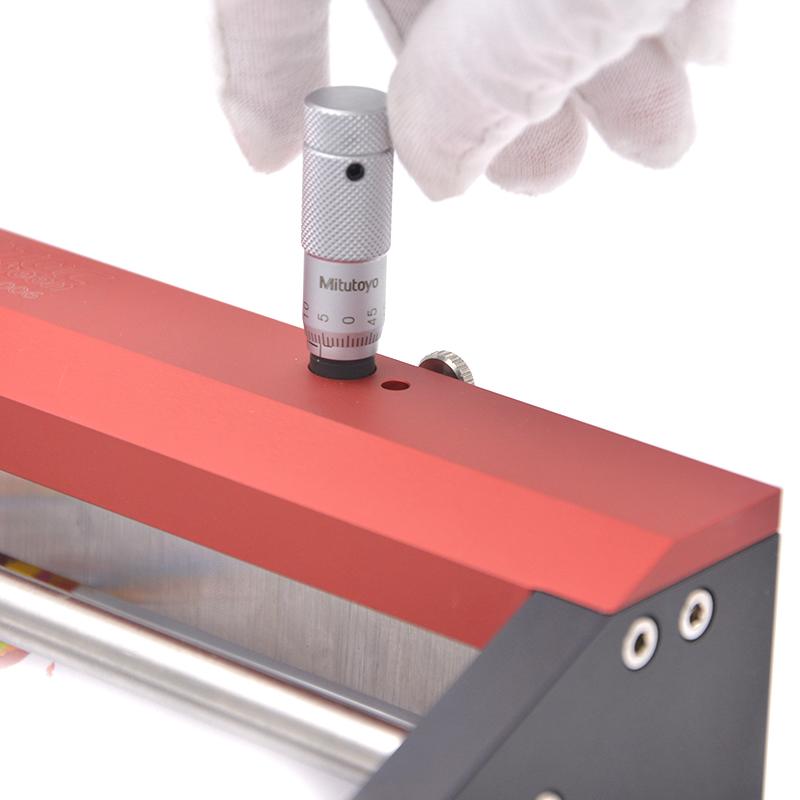

3. The accuracy of the side head is 10μm

3. Black anodized aluminum frame

Criteria met:ASTM D823

Dimensional weight

SH0335(VF1820)
Dimensions DxHxWDxHxW	105 x 100 x 100 mm / 4.1 x 3.9 x 3.9 inch
Weight Mass	670 g / 23.6 oz
Maximum film widthMax. Filmwidth	75mm/ 2.95 inch
SH0336(VF1821) Sheen equivalent model SH1117/100
Dimensions DxHxW	105 x 100 x 125 mm / 4.1 x 3.9 x 4.9 inch
Weight Mass	770 g / 27.2 oz
Maximum coating width Max. Filmwidth	100 mm/ 3.9 inch
SH1140(VF1822) Sheen equivalent model SH1117/150
Dimensions DxHxW	105 x 100 x mm / 4.1 x 3.9 x inch
Weight Mass	980 g / 34.5 oz
Maximum coating width Max. Filmwidth	150 mm/ 5.9 inch
SH0340(VF1823) Sheen equivalent model SH1117/200
Dimensions DxHxW	105 x 100 x mm / 4.1 x 3.9 x inch
Weight Mass	1180 g / 41.6 oz
Maximum coating width Max. Filmwidth	200 mm/ 7.8 inch
SH1142(VF1824)
Dimensions DxHxW	105 x 100 x mm / 4.1 x 3.9 x inch
Mass	1395 g / 49.2 oz
Maximum coating width Max. Filmwidth	250 mm/ 9.8 inch
SH3042(VF1825)
Dimensions DxHxW	105 x 100 x mm / 4.1 x 3.9 x inch
Weight Mass	1600 g / 56.4 oz
Maximum coating width Max. Filmwidth	300 mm/ 11.8 inch

FAQ

QThis Micrometer Film Applicator can be applied to JB/T7663.2?

A OK
