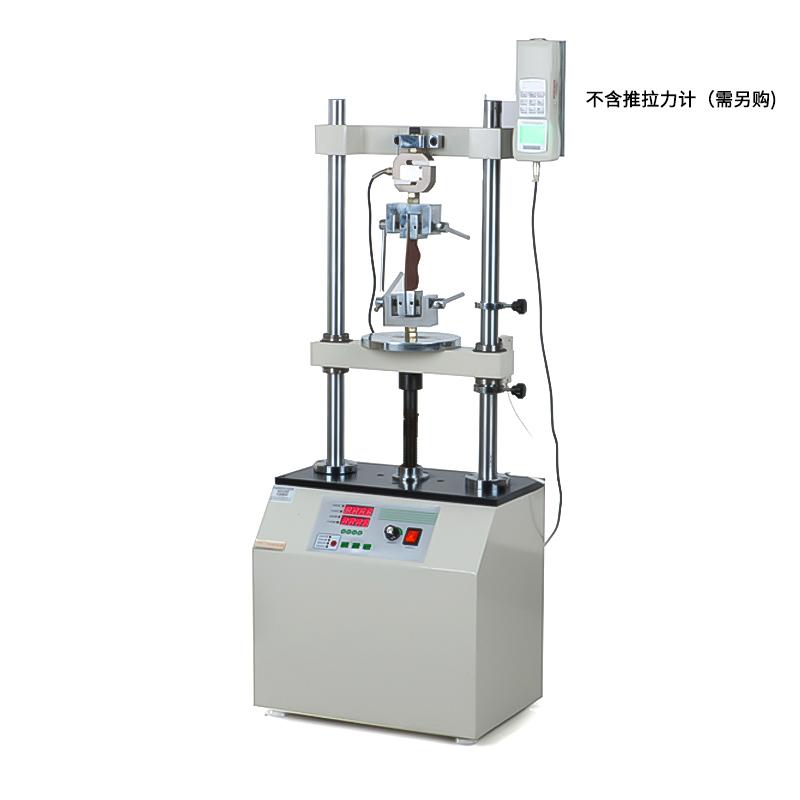

Electric double column vertical machine HDD-5K Hypertherm tensIon Meter machine, double guide rod structure, LCD digital display

HDD-5K

Electric double column vertical machine

Load 5000N, with four test modes, digital tube screen display, can be jog, automatic operation, with pull and break stop function, optional micro printer.

Introduction

HDD series electric double-column vertical machine is specially designed and produced by Haibao to adapt to the three series of push-pull gauges of HF, HG and NK. It can save manual operation and perform tensile test quickly and conveniently. Haibao HDD-5K electric double-column vertical machine adopts a double-guide rod structure, which has good stability and wide applicability. In addition, the HDD-5K electric double-column vertical machine adopts a digital tube screen display to display the test load value in real time.

Electric double column vertical machineHDD-5K can be equipped with a digital display push-pull force gauge to realize multiple functions such as stop when breaking, force value maintenance, applied force limit, and fatigue test.

Features

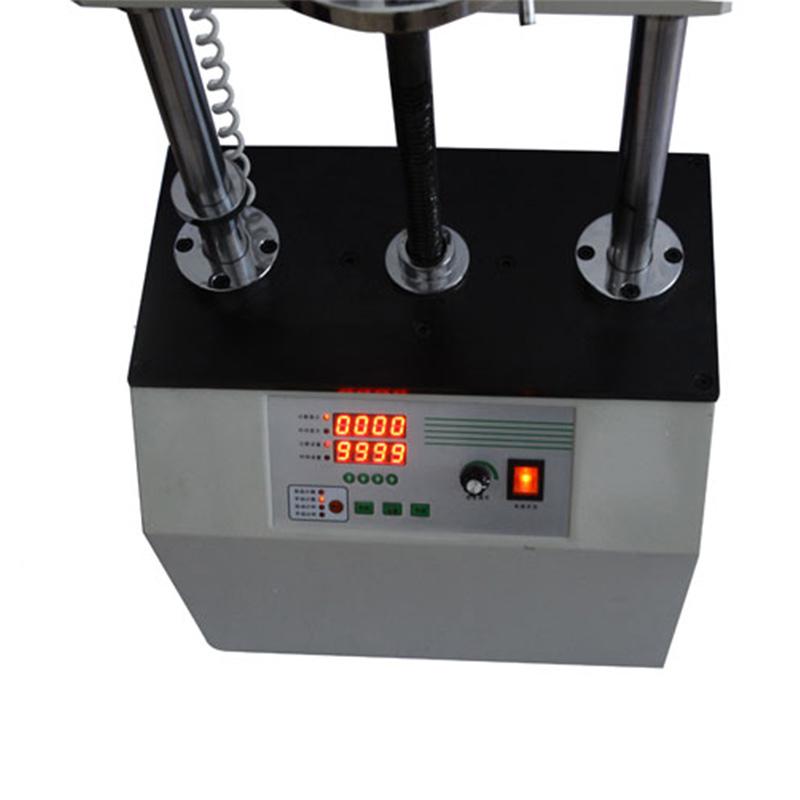

1. It adopts digital tube screen display, and the display is clear.

2. Electric double-column vertical machineHDD-5K has four Operating Modes: manual counting mode, automatic technology mode, pulling and pressing stop mode, and automatic timing mode.

3. It is suitable for tests such as pulling force test, fatigue test, breaking force measurement, and force retention measurement.

4. It can freely set the force value for reciprocating movement, set the force value and the number of movements.

Product operation method

1. Equipped with the required model of Hypertherm push-pull force gauge

2. Install the tension gauge and machine fixture

3. Fix the specimen and both ends of the fixture

4. Adjust the travel limit protection switch

5. Turn on the main power supply of the machine and the power supply of the tensIon Meter, and set the electric double-column vertical machineHDD-5KThe function parameters of

6. Press the forward or backward key to start the test experiment

7. Electric double-column vertical machineHDD-5KAfter the work is finished, press the forward or backward key to make the machine return to the original initial state

Pictures

Packing list：host x1, fixture x2, power cord x1, manual x1, certificate of conformity (warranty card) x1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
