TQC SH1140 (VF1822) Micrometer Film Applicator 150mm

TQC SH1140 Micrometer Film Applicator is a 150mm application width, VF1822 can be freely adjusted 0-8mm range variable Film Applicator. Accuracy +/- 10μm, material anodic oxidation aluminum, hardened stainless steel, standard ASTM D823

$1978.00/set

PromotionLoading...

Coupon

Model：

VF1822

Certificate

TQC sheen

Contact

Details SPEC Con VIDEO CAT OI

TQC sheen VF1822 Micrometer Film ApplicatorSPEC

TQC sheen VF1822 Micrometer Film ApplicatorDetails

TQC sheen VF1822 Micrometer Film ApplicatorPacking list

SKU: NB013701

type: Adjustable

WFT: 0~8000μm

Application width: 150mm

Accuracy: ±10μm

material: Anodic oxidation of aluminum, hardened stainless steel

standard: ASTM D823

size: 105*100mm

Net Weight: 980g

VF1822

Micrometer Film Applicator

This is an adjustable micron film coater, which can freely adjust the wet film thickness of the coater from 2μm and in 10μm increments, and the film thickness range is 0~8mm. The TQC adjustable Film Applicator provides the user with the flexibility to adjust the precise gap size for the sample application. Ideal for projects that require accurate evaluation of changes in film thickness.

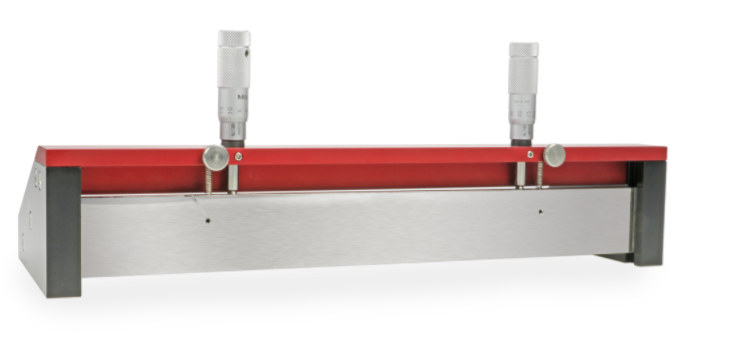

VF1822 Adjustable Film Applicator

Product Features

1. Precision wear-resistant stainless steel blades

2. The thickness of the wet film is up to 8mm

3. The accuracy of the side head is 10μm

3. Black anodized aluminum frame

Criteria met:ASTM D823

Dimensional weight

SH0335（VF1820）
Dimensions DxHxWDxHxW	105 x 100 x 100 mm / 4.1 x 3.9 x 3.9 inch
Weight Mass	670 g / 23.6 oz
Maximum film widthMax. Filmwidth	75mm/ 2.95 inch
SH0336（VF1821） Sheen equivalent model SH1117/100
Dimensions DxHxW	105 x 100 x 125 mm / 4.1 x 3.9 x 4.9 inch
Weight Mass	770 g / 27.2 oz
Maximum coating width Max. Filmwidth	100 mm/ 3.9 inch
SH1140（VF1822） Sheen equivalent model SH1117/150
Dimensions DxHxW	105 x 100 x mm / 4.1 x 3.9 x inch
Weight Mass	980 g / 34.5 oz
Maximum coating width Max. Filmwidth	150 mm/ 5.9 inch
SH0340（VF1823） Sheen equivalent model SH1117/200
Dimensions DxHxW	105 x 100 x mm / 4.1 x 3.9 x inch
Weight Mass	1180 g / 41.6 oz
Maximum coating width Max. Filmwidth	200 mm/ 7.8 inch
SH1142（VF1824）
Dimensions DxHxW	105 x 100 x mm / 4.1 x 3.9 x inch
Mass	1395 g / 49.2 oz
Maximum coating width Max. Filmwidth	250 mm/ 9.8 inch
SH3042（VF1825）
Dimensions DxHxW	105 x 100 x mm / 4.1 x 3.9 x inch
Weight Mass	1600 g / 56.4 oz
Maximum coating width Max. Filmwidth	300 mm/ 11.8 inch

FAQ

QI want to apply 2mm thick water-based paints. I don't know what tool to use?

A This adjustable can provide 2mm wet film. NBchao High and Low Micrometer Film Applicator is optional.

QIs there a GB1727 Micrometer Film Applicator?

A This TQC Micrometer Film Applicator is fine!
