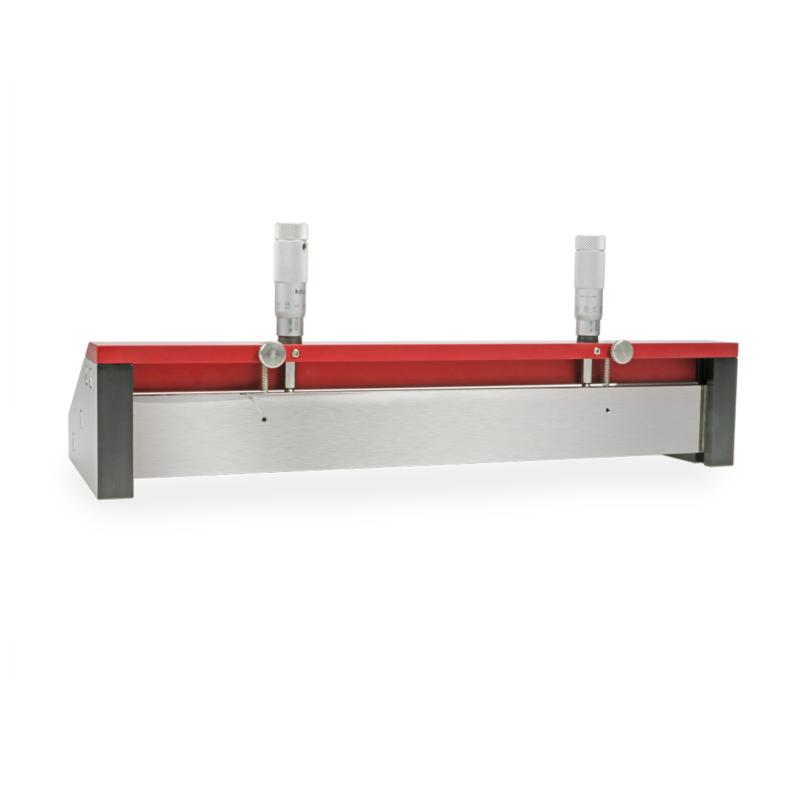

TQC SH3042 (VF1825) Micrometer Film Applicator 300mm adjustable Applicator

TQC SH3042 (VF1825) Micrometer Film Applicator wet film thickness 0~8000 μm, application width 300mm, accuracy +/- 10μm, material anodic oxidation aluminum, hardened stainless steel, standard ASTM D823, size 105 * 100mm, Net weight 1600g.

$1978.00/set

PromotionLoading...

Coupon

Model：

VF1825

Certificate

TQC sheen

Contact

Details SPEC Con CAT OI

TQC sheen VF1825 Micrometer Film ApplicatorSPEC

TQC sheen VF1825 Micrometer Film ApplicatorDetails

TQC sheen VF1825 Micrometer Film ApplicatorPacking list

SKU: NB013704

type: Adjustable

WFT: 0~8000μm

Application width: 300mm

Accuracy: ±10μm

material: Anodic oxidation of aluminum, hardened stainless steel

standard: ASTM D823

size: 105*100mm

Net Weight: 1600g

VF1825

Micrometer Film Applicator

This is an adjustable micron film coater, which can freely adjust the wet film thickness of the coater from 2μm and in 10μm increments, and the film thickness range is 0~8mm. The TQC adjustable Film Applicator provides the user with the flexibility to adjust the precise gap size for the sample application. Ideal for projects that require accurate evaluation of changes in film thickness.

VF1825 Adjustable Film Applicator

Product Features

1. Precision wear-resistant stainless steel blades

2. The thickness of the wet film is up to 8mm

3. The accuracy of the side head is 10μm

3. Black anodized aluminum frame

Criteria met:ASTM D823

Dimensional weight

SH0335（VF1820）
Dimensions DxHxWDxHxW	105 x 100 x 100 mm / 4.1 x 3.9 x 3.9 inch
Weight Mass	670 g / 23.6 oz
Maximum film widthMax. Filmwidth	75mm/ 2.95 inch
SH0336（VF1821） Sheen equivalent model SH1117/100
Dimensions DxHxW	105 x 100 x 125 mm / 4.1 x 3.9 x 4.9 inch
Weight Mass	770 g / 27.2 oz
Maximum coating width Max. Filmwidth	100 mm/ 3.9 inch
SH1140（VF1822） Sheen equivalent model SH1117/150
Dimensions DxHxW	105 x 100 x mm / 4.1 x 3.9 x inch
Weight Mass	980 g / 34.5 oz
Maximum coating width Max. Filmwidth	150 mm/ 5.9 inch
SH0340（VF1823） Sheen equivalent model SH1117/200
Dimensions DxHxW	105 x 100 x mm / 4.1 x 3.9 x inch
Weight Mass	1180 g / 41.6 oz
Maximum coating width Max. Filmwidth	200 mm/ 7.8 inch
SH1142（VF1824）
Dimensions DxHxW	105 x 100 x mm / 4.1 x 3.9 x inch
Mass	1395 g / 49.2 oz
Maximum coating width Max. Filmwidth	250 mm/ 9.8 inch
SH3042（VF1825）
Dimensions DxHxW	105 x 100 x mm / 4.1 x 3.9 x inch
Weight Mass	1600 g / 56.4 oz
Maximum coating width Max. Filmwidth	300 mm/ 11.8 inch

FAQ

QHello, can your Spreader machine be used on the ointment Spreader? The ointment is more viscous.

A It is recommended to use Applicator. If the thickness is relatively large, you can choose Micrometer Film Applicator. Of course, it should also be analyzed in combination with your film substrate.
