Erichsen 295/II Cross Hatch Cutter Set 6 teeth/2mm

Erichsen 295/II Cross Hatch Cutter Number of teeth 6, tooth spacing 2mm, suitable for film thickness environment 61~ 120μm, instrument material stainless steel, handle material plastic, cutter head material stainless steel, application standard VDA 621-411, EN ISO 2409, ASTM D 3359, number of blades 2.

$972.00/set

PromotionLoading...

Coupon

Model：

erichsen 295/II

Erichsen

Contact

Details SPEC Con CAT

Erichsen erichsen 295/II Cross-cut knifeSPEC

Erichsen erichsen 295/II Cross-cut knifeDetails

Erichsen erichsen 295/II Cross-cut knifePacking list

SKU: NB013715

Number of teeth: 6 teeth

Tooth spacing: 2mm

Applicable film thickness environment: 61~120μm

Instrument material: stainless steel

Handle material: plastic

Cutter head material: stainless steel

Application standard: VDA 621-411、EN ISO 2409、ASTM D 3359

number of blades: 2

erichsen 295/II

Cross-cut knife

The erichsen295 paint cross-hatch knife meets all cross-hatch test standards. It consists of a plastic handle and a cutter head mounted on it. The cutter head can be adjusted to the most comfortable position for the operator. Different types of cutter heads are available and a tape according to EN ISO 2409 is available.

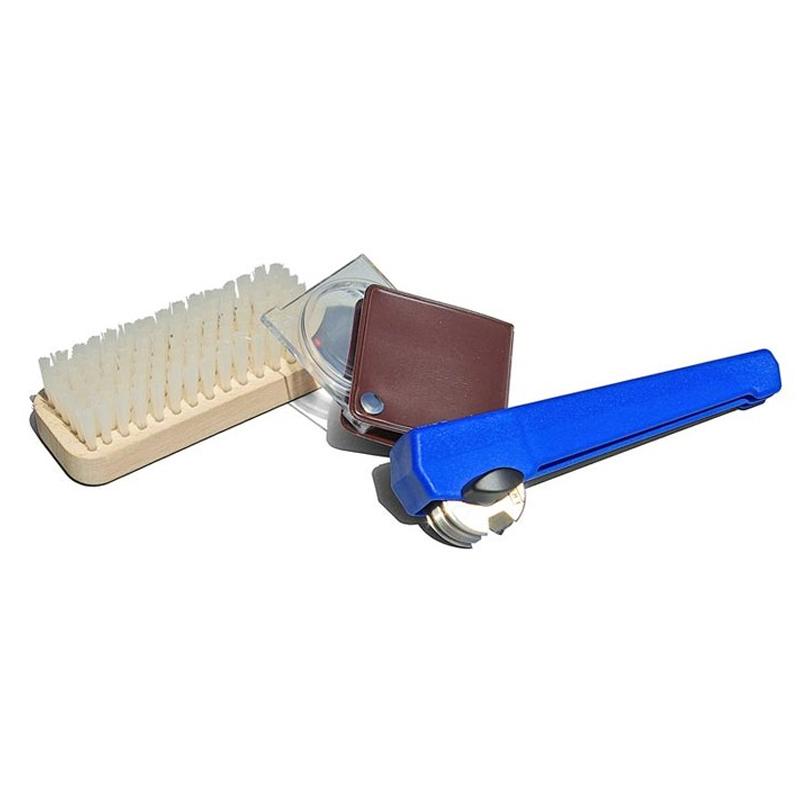

The erichsen 295 cross-cutting instrument is supplied complete, including a cutter head mounted on a plastic handle. Comes in a sturdy plastic carrying case and also contains a nylon brush and a 2.5x magnifying glass. For the 295/III single-edged blade, a folding rule is also provided. The instrument also comes with manufacturer's certificate M.

Comparison of parameters of Erichsen cross hatcher series

standard	Film thickness	Tool number x spacing (mm)	model	Item number
ISO 2409 EN ISO 2409	up to 60Î¼m 60~120Î¼m 120~250Î¼m	6 x 1	295/I	0019.01.31
		6 x 1	295/II	0019.02.31
		6 x 2	295/II	0019.02.31
		6 x 3	295/III or 295/VII	0019.03.31 (0019.07.31)

ASTM D 3359	up to 50Î¼m 50~125Î¼m	11x1	295/V	0019.05.31
ASTM D 3359	up to 50Î¼m 50~125Î¼m	6x2	295/II	0019.02.31

JIS K 5400 JIS K 6894	up to 60Î¼m 60~120Î¼m Greater than 120Î¼m	11x1	295/V	0019.05.31
		6x2	295/II	0019.02.31
		6x3	295/III or 295/VII	0019.03.31 (0019.07.31)

SNV 37111	up to 60Î¼m Greater than 60Î¼m	8x1	295/III	0019.03.31
SNV 37111	up to 60Î¼m Greater than 60Î¼m	8x2	295/III	0019.03.31

VDA 621-411	up to 60 Î¼m 60~120 Î¼m Greater than 120 Î¼m	6x1	295/I	0019.01.31
		6x2	295/II	0019.02.31
		6x3	295/III	0019.03.31 (0019.07.31)

ECCA ² )	up to 50 Î¼m Greater than 50 Î¼m	11x1	295/V	0019.05.31
ECCA ² )	up to 50 Î¼m Greater than 50 Î¼m	2x5	295/IV	0019.04.31

ISO 2409-1972 BS 3900:E NFT 30-038	Agreement	11x2	295/VI	0019.06

1.After 1994, the European standard ENISO2409 replaced the national standards DIN53151, BS3900: E6, NFT30-38, NEN5337 and SIS184172.

2. After the cross-hatch test, you can also do a deep drawing test (ENISO1520). Deep drawing experiments can be completed with the following instruments:

ERICHSEN cupping Tester, model 200, 202, 202C or 204

Impact test device 304ECCA compliant with ASTM D3359

3. For soft substrates.

4. For hard substrates.

FAQ

QHelp me find a cross-cutting knife that meets the ASTMD3359 standard

A This erichsen 295/II cross-cut knife will do!
