Erichsen 295/VII Cross Hatch Cutter cross-cut Tester 6 teeth

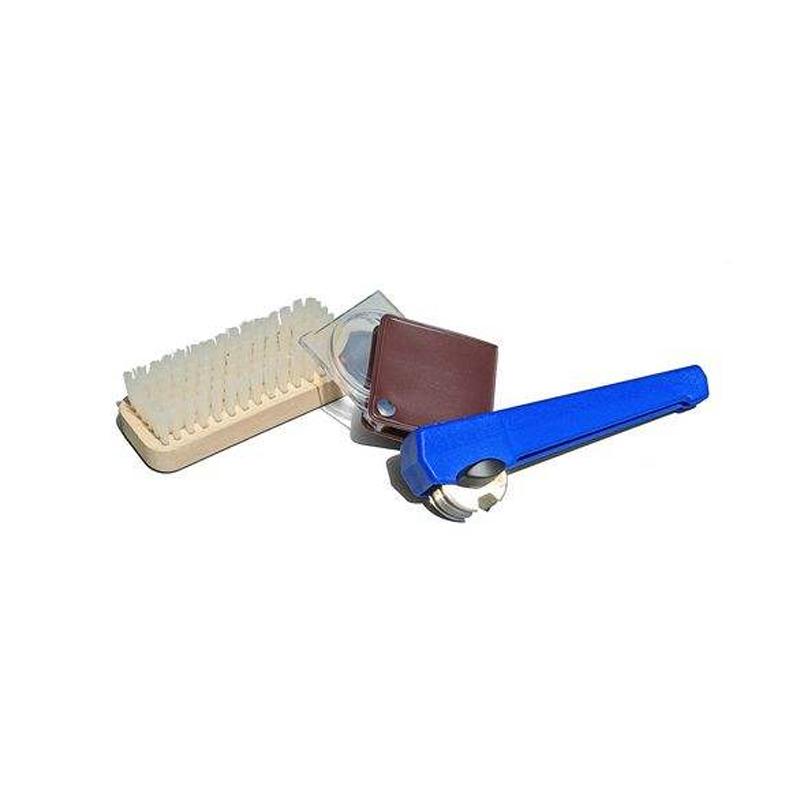

Erichsen 295/VII Cross Hatch Cutter is a Cross Hatch Cutter set with brush, plastic case, magnifying glass, erichsen 295/VII has 6 teeth and 3mm tooth spacing.

Model：

erichsen 295/VII

Erichsen

Contact

Details SPEC CAT

Erichsen erichsen 295/VII Cross-cut knifeSPEC

Erichsen erichsen 295/VII Cross-cut knifeDetails

Erichsen erichsen 295/VII Cross-cut knifePacking list

SKU: NB013717

Number of teeth: 6 teeth

Tooth spacing: 3mm

Applicable film thickness environment: 0~50μm

Instrument material: stainless steel

Handle material: plastic

Cutter head material: stainless steel

erichsen 295/VII

Cross-cut knife

The Erichsen295 lacquered scratch cutter meets all mark test criteria. It consists of a plastic handle and a cutter head mounted on it, which can be adjusted to the most comfortable position for the operator. Different types of bits are available, and an EN ISO 2409 compliant tape is available.

The Erichsen295 scratching instrument is supplied in a complete range of products, including a cutter head mounted on a plastic handle. It comes in a sturdy plastic carrying case, and also contains a nylon brush and a 2.5x magnifying glass. For the 295/III single-edged bits, a folding ruler is also available. The instrument also comes with a manufacturer's certificate M.

Comparison of the parameters of the Erichsen griddle series

standard	Film thickness	Knife size x spacing(mm)	Model	Catalog number
ISO 2409 EN ISO 2409	Up to 60 μm 60~120μm 120~250μm	6 x 1	295/I	0019.01.31
		6 x 1	295/II	0019.02.31
		6 x 2	295/II	0019.02.31
		6 x 3	295/III or 295/VII	0019.03.31 (0019.07.31)

ASTM D 3359	Up to 50 μm 50~125μm	11x1	295/V	0019.05.31
ASTM D 3359	Up to 50 μm 50~125μm	6x2	295/II	0019.02.31

JIS K 5400 JIS K 6894	Up to 60 μm 60~120μm >120 μm	11x1	295/V	0019.05.31
		6x2	295/II	0019.02.31
		6x3	295/III or 295/VII	0019.03.31 (0019.07.31)

SNV 37111	Up to 60 μm >60 μm	8x1	295/III	0019.03.31
SNV 37111	Up to 60 μm >60 μm	8x2	295/III	0019.03.31

VDA 621-411	Up to 60μm 60~120μm Greater than 120μm	6x1	295/I	0019.01.31
		6x2	295/II	0019.02.31
		6x3	295/III	0019.03.31 (0019.07.31)

ECCA²)	Up to 50μm Greater than 50μm	11x1	295/V	0019.05.31
ECCA²)	Up to 50μm Greater than 50μm	2x5	295/IV	0019.04.31

ISO 2409-1972 BS 3900:E NFT 30-038	Conventions	11x2	295/VI	0019.06

1. After 1994, the European standard ENISO2409 replaced the national standard DIN53151, BS3900:E6, NFT30-38, NEN5337 and SIS184172.

2. After the scratch test, you can also do a deep drawing test (ENISO1520). Deep drawing experiments can be performed with the following instruments:

ERICHSEN CUP-CONVEX TESTER, MODEL 200, 202, 202C OR 204

Complies with ASTMD3359 impact test set 304ECCA

3. on soft substrates.

4. on hard substrates.

FAQ

QDoes this cross-cut knife meet the QJ990.14 standard?

A This cross-cutting knife is suitable for QJ990.14. Please consult customer service for detailed application definition.
