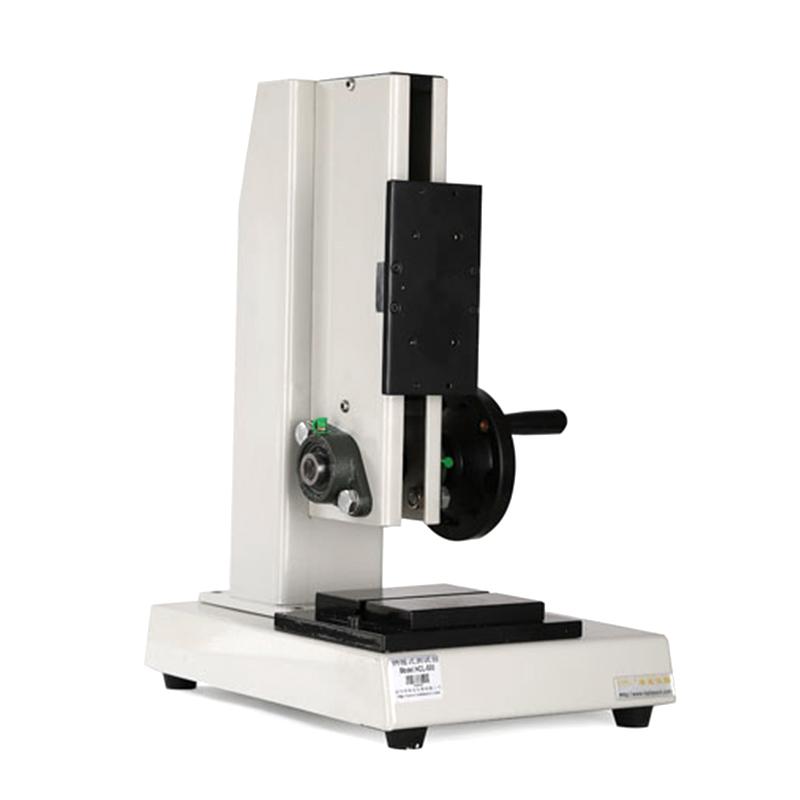

Side Shake Spiral Test Bench HCL-500 Hypertherm Force Gauge Manual Vertical Side Shake Test Bench

HCL-500

Side-rocking spiral test bench

Measured value 500N, the maximum measurable space ≤ 245mm, effective stroke ≤ 250mm.

Introduction

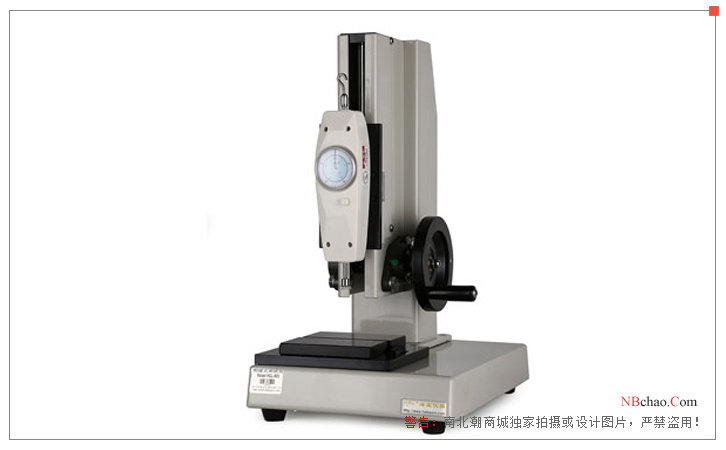

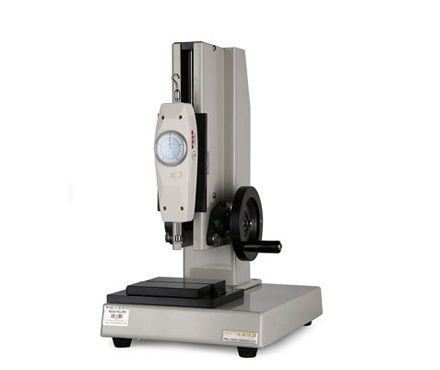

Haibao HCL-500 side-swing screw test bench is a manual vertical structure test bench with a large base, which can be used with different push-pull gauges for tensile test. The HCL-500 side-swing spiral test bench is loaded by the side hand wheel, and the base is a mobile platform, which is convenient for free movement. The side-swing screw test bench HCL-500 has a rated load of 500N and a test stroke of up to 250mm. It is suitable for testing such as insertion force, pressing force, and destruction test.

Features

1. The side-swing spiral test bench HCL-500 has a large base and high stability, and can be used for testing on an indoor table.

2. The trapezoidal screw rotates, and the side hand wheel is loaded, so the operation is stable and simple.

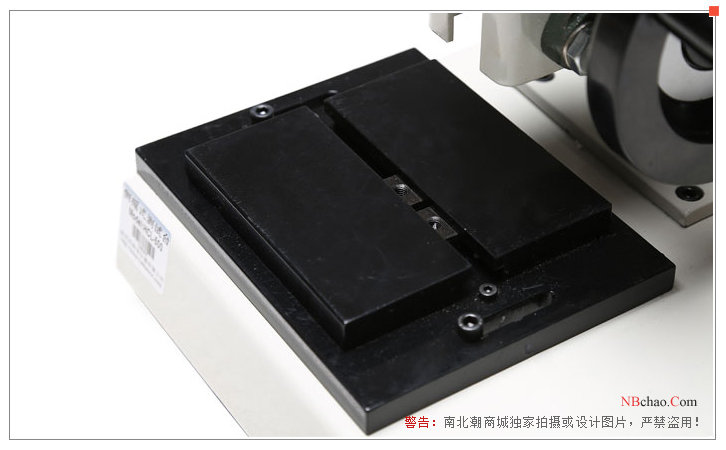

3. The base is equipped with a mobile platform as standard, which can realize left and right, front and rear movement, convenient and accurate clamping.

4. HCL-500 can also be installed on the table for more stable testing.

Product Structure

Precautions for product use

1. The rated load of Haibao HCL-500 side-swing screw test bench is 500N, please do not overload it.

2. Clean all parts in time after use.

3. If the operation of the machine is stagnant and inflexible, add a little lubricating oil into the oiling holes on the bearing seats on both sides of the machine.

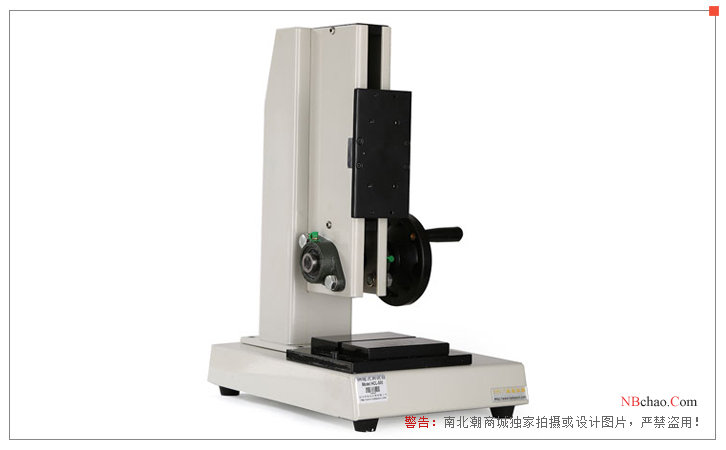

Pictures

Packing list：host x1, fixture x2, power cord x1, manual x1, certificate of conformity (warranty card) x1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
