Erichsen 295/VI film adhesion Cross Hatch Cutter cross-cut Tester 11 teeth

Erichsen 295/VI film adhesion Cross Hatch Cutter is an 11-tooth Cross Hatch Cutter set that meets ISO and BS standards. The teeth of the erichsen 295/VI cross-cut Tester are made of high-grade wear-resistant stainless steel, which has good abrasion resistance.
Contact
Details SPEC CAT
Similar products

Erichsen erichsen 295/VI Cross-cut knifeSPEC

Erichsen erichsen 295/VI Cross-cut knifeDetails

Erichsen erichsen 295/VI Cross-cut knifePacking list

SKU
NB013727
Number of teeth
11 teeth
Tooth spacing
2mm
Instrument material
stainless steel
Handle material
plastic
Cutter head material
stainless steel
erichsen 295/VI
Cross-cut knife
Erichsen 295/VI film adhesion Cross Hatch Cutter cross-cut Tester 11 teeth Picture

The Erichsen295 lacquered scratch cutter meets all mark test criteria. It consists of a plastic handle and a cutter head mounted on it, which can be adjusted to the most comfortable position for the operator. Different types of bits are available, and an EN ISO 2409 compliant tape is available.

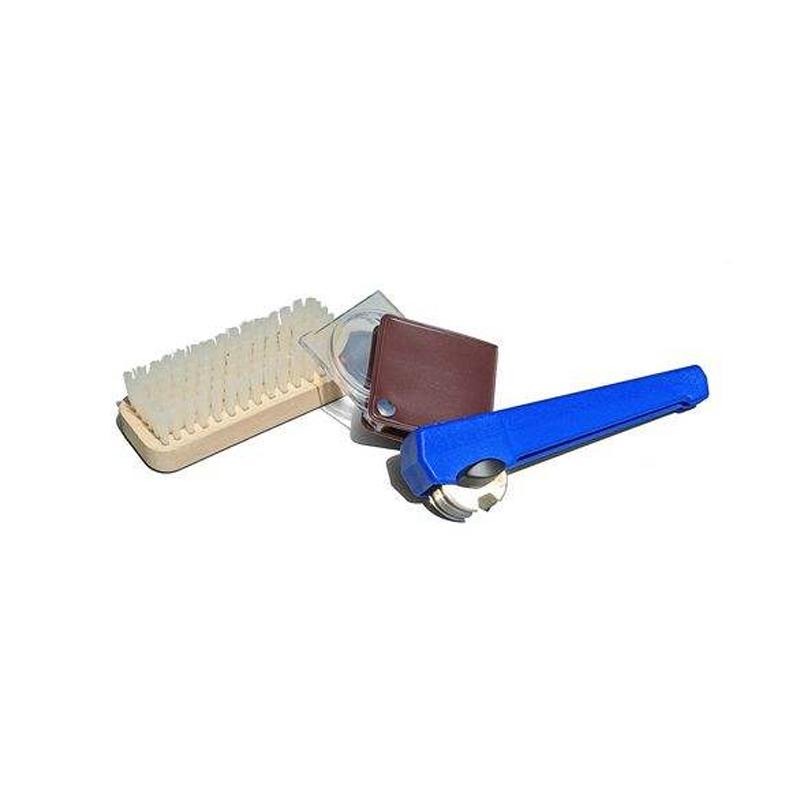

The Erichsen295 scratching instrument is supplied in a complete range of products, including a cutter head mounted on a plastic handle. It comes in a sturdy plastic carrying case, and also contains a nylon brush and a 2.5x magnifying glass. For the 295/III single-edged bits, a folding ruler is also available. The instrument also comes with a manufacturer's certificate M.

Comparison of the parameters of the Erichsen griddle series

standard

Film thickness

Knife size x spacing(mm)

Model

Catalog number

ISO 2409

EN ISO 2409

Up to 60 μm

60~120μm

120~250μm

6 x 1

295/I

0019.01.31

6 x 1

295/II

0019.02.31

6 x 2

295/II

0019.02.31

6 x 3

295/III or 295/VII

0019.03.31

(0019.07.31)


ASTM D 3359

Up to 50 μm

50~125μm

11x1

295/V

0019.05.31

6x2

295/II

0019.02.31


JIS K 5400

JIS K 6894

Up to 60 μm

60~120μm

>120 μm

11x1

295/V

0019.05.31

6x2

295/II

0019.02.31

6x3

295/III or 295/VII

0019.03.31
(0019.07.31)


SNV 37111

Up to 60 μm

>60 μm

8x1

295/III

0019.03.31

8x2

295/III

0019.03.31


VDA 621-411

Up to 60μm

60~120μm

Greater than 120μm

6x1

295/I

0019.01.31

6x2

295/II

0019.02.31

6x3

295/III

0019.03.31
(0019.07.31)


ECCA2)

Up to 50μm

Greater than 50μm

11x1

295/V

0019.05.31

2x5

295/IV

0019.04.31


ISO 2409-1972

BS 3900:E

NFT 30-038

Conventions

11x2

295/VI

0019.06

1. After 1994, the European standard ENISO2409 replaced the national standard DIN53151, BS3900:E6, NFT30-38, NEN5337 and SIS184172.

2. After the scratch test, you can also do a deep drawing test (ENISO1520). Deep drawing experiments can be performed with the following instruments:

ERICHSEN CUP-CONVEX TESTER, MODEL 200, 202, 202C OR 204

Complies with ASTMD3359 impact test set 304ECCA

3. on soft substrates.

4. on hard substrates.

FAQ
QIs there a QJ990.14 standard cross-cutting knife?
A This ERICHSEN cross-cut knife will do!
