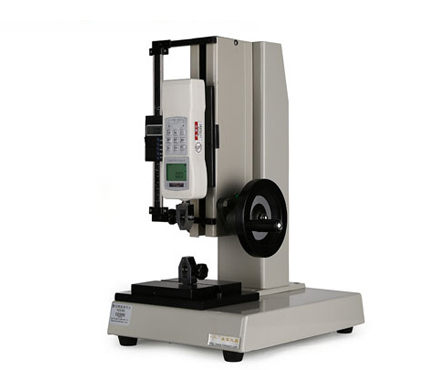

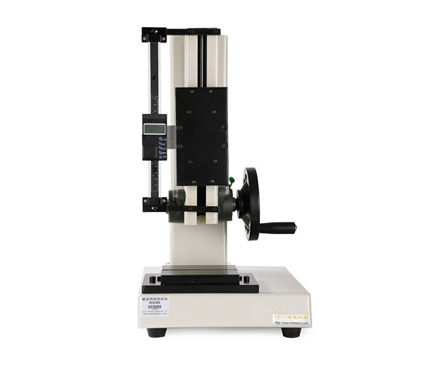

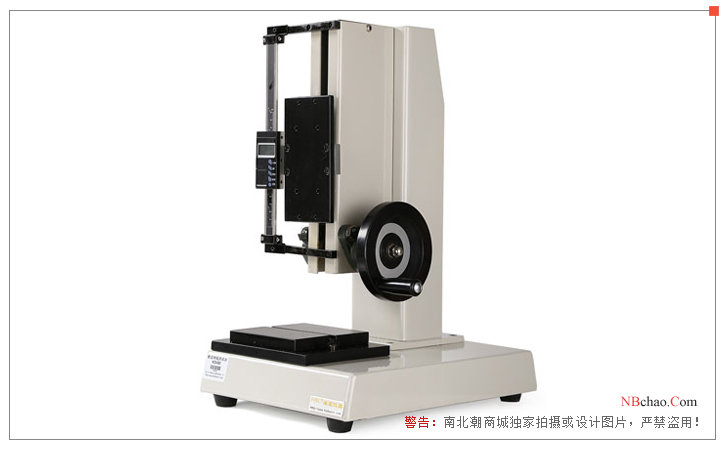

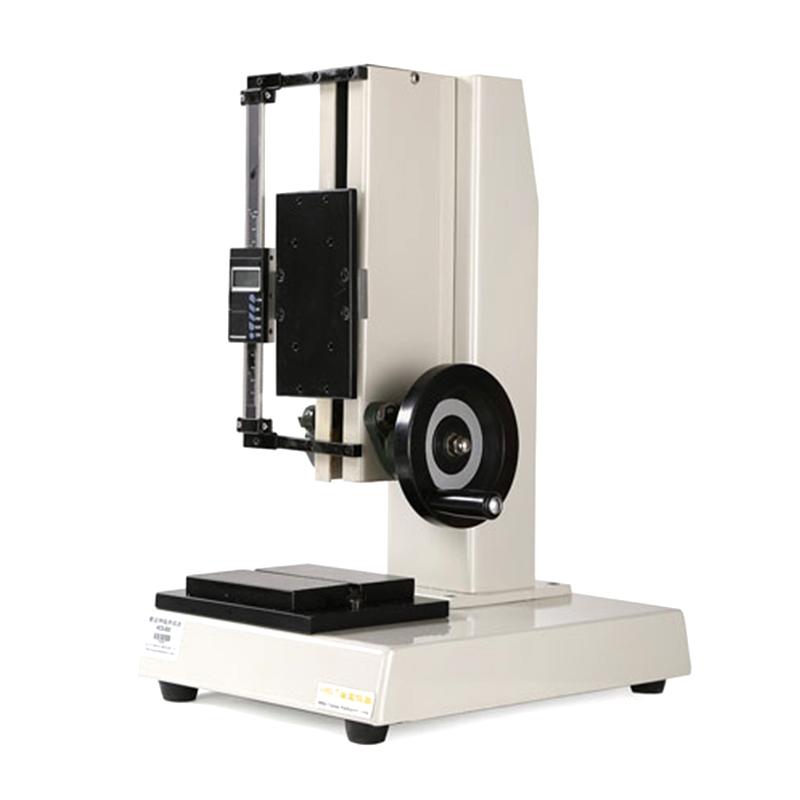

Digital Side Swing Spiral Test Bench HCS-500 Hypertherm Dynamometer Test Bench with Digital Display Ruler

HCS-500

Side-rocking spiral test bench

Display with digital ruler, Maximum Measured value 500N, Maximum measurable space ≤ 245mm, Effective stroke ≤ 250mm, Digital ruler display accuracy 0.01mm.

product description

Different from the HCL-500 side-scrolling spiral test bench, the HCS-500 digital display side-scrolling spiral test bench is equipped with a digital scale on the basis of the HCL-500, which can collect test data during the test and display displacement Quantity, to do a comparative test of different workpieces under the same displacement, the applicability is more extensive. HCS-500 digital display side-swing screw test stand is suitable for three series of thrust gauges of HF series, HG series and NK series. It can be composed of different Tensile Testing Machines, and the measuring load is 500N.

Features and advantages

1. The HCS-500 digital display side-swing spiral test bench has a large base and good stability, and the side handwheel is loaded. The operation is simple and convenient, and it is suitable for indoor desktop testing.

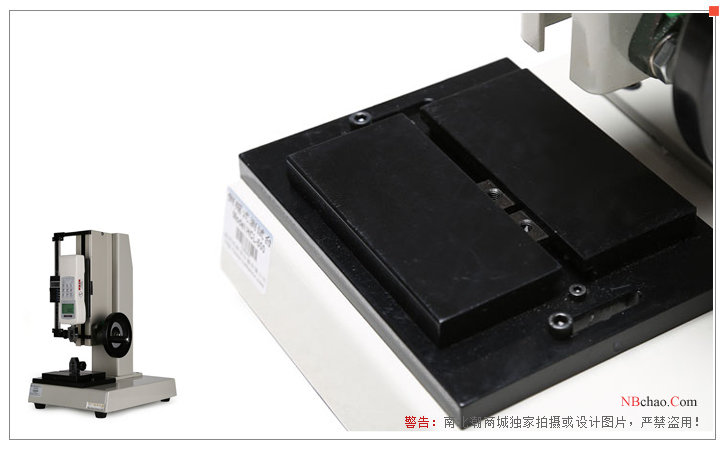

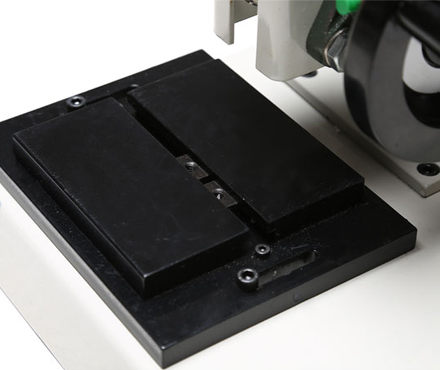

2. The base is equipped with a mobile platform as standard, which can move freely left and right, front and back, and is convenient for fixture installation.

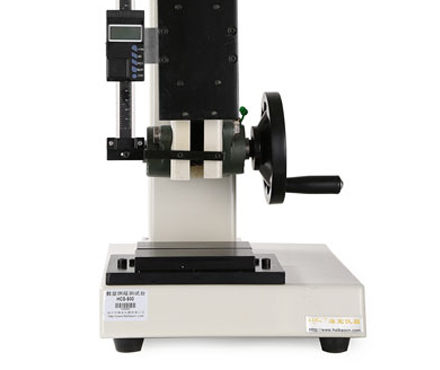

3. Equipped with a digital scale, capable of collecting and forming data.

4. It is suitable for testing such as insertion force, pressing force, and destruction test.

product structure

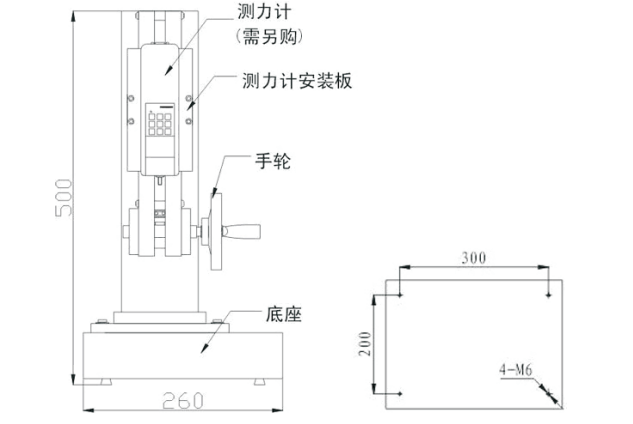

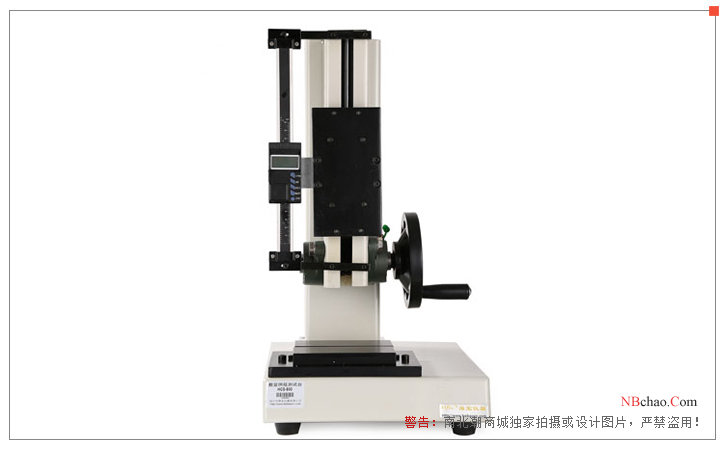

The structure of the HCS-500 digital display side-swing spiral test bench includes: dynamometer (need to be purchased separately), dynamometer mounting plate, hand wheel, and base.

Pictures

Packing list：host x1, fixture x2, power cord x1, manual x1, certificate of conformity (warranty card) x1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
