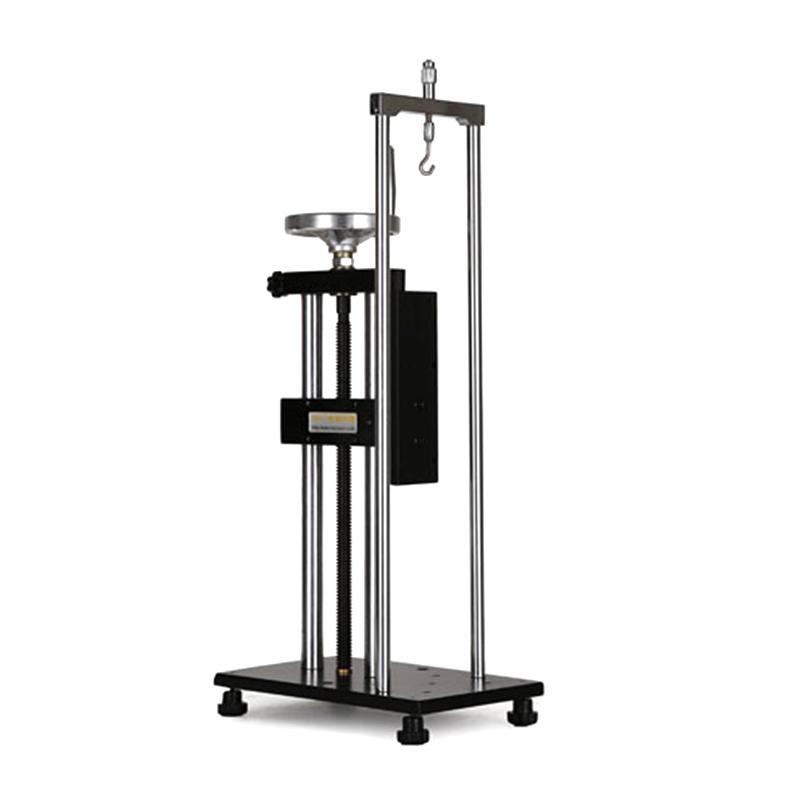

HLX-J Hypertherm Spiral Force Gauge Test Rack
SE
HLX-J
HBO HLX-J Spiral tensile and compressive test standSPEC
HBO HLX-J Spiral tensile and compressive test standDetails
HBO HLX-J Spiral tensile and compressive test standPacking list
- SKU
- NB001375
- Maximum load
- 500N / 50Kg
- Stroke (excluding fixtures)
- 210mm
- Digital ruler
- without
- loading method
- Handwheel rotation
- size
- 240×150×500mm
- Weight
- About 9kg
Introduction

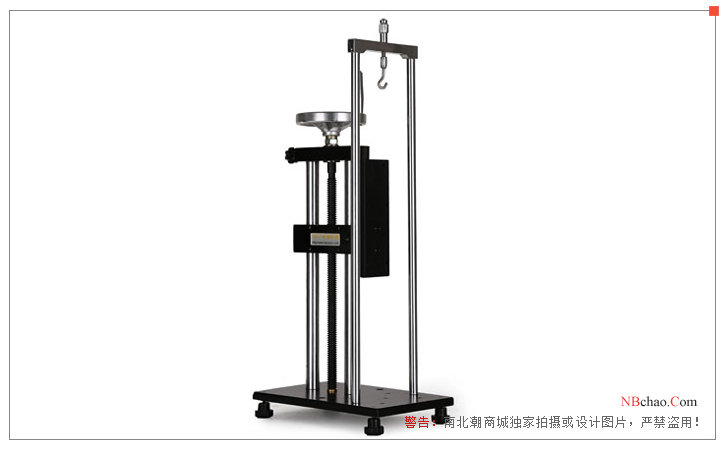

Haibao Instruments HLX-J Helical Tension and Compression Test Stand is a special tensile test bench suitable for domestic (CN) and foreign push-pull dynamometers, with a rated load of 500N and a test stroke range of 0~200mm. HLX-J spiral tension and compression test frame has the characteristics of stable operation, simple operation, convenient mobile installation, vertical and horizontal dual-purpose, etc.
Applications
HLX-J spiral tension and compression test stand is suitable for all walks of life and scientific research institutions for tension and compression load, insertion force, destruction test, etc.
Test Methods
HLX-J spiral tension and compression test frame can carry out tests in two directions of tension and compression. According to the characteristics of the product to be tested, place it at a suitable position on the workbench. Rotate the handwheel on the workbench, and the meter will move up and down smoothly to complete the test work.
Maintenance
1. Pay attention to keep all parts of the workbench clean.
2. When you feel that the movement of the workbench is sluggish and inflexible, please add a little oil to lubricate the joint between the guide rail and the guide sleeve (there is an oil storage tank on the copper guide sleeve).
