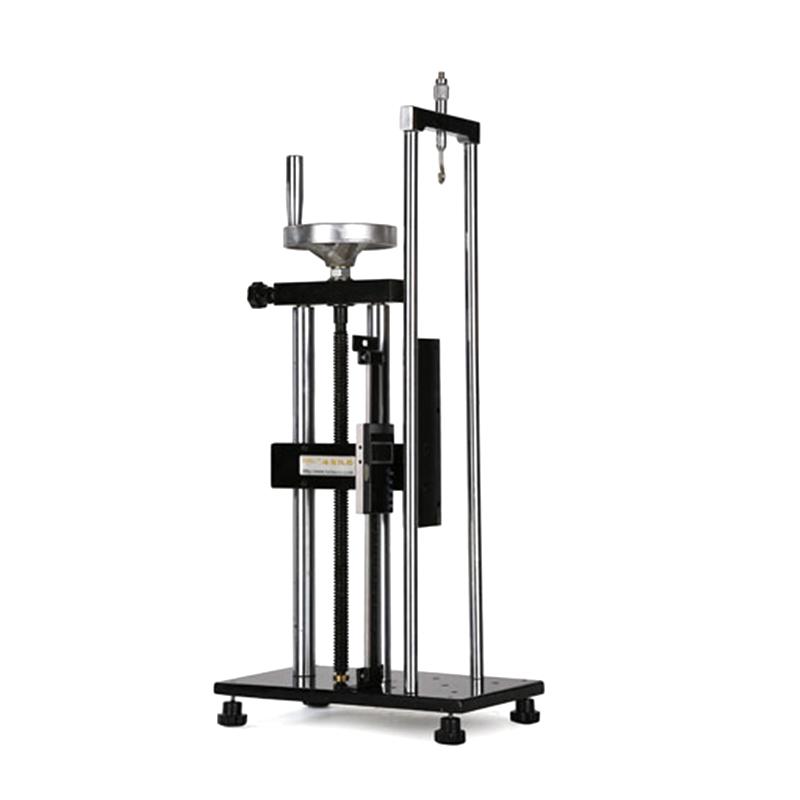

Digital Display Spiral Tensile and Compression Test Rack HLX-S HBO with Digital Display Ruler
SE
HLX-S
HBO HLX-S Spiral tensile and compressive test standSPEC
HBO HLX-S Spiral tensile and compressive test standDetails
HBO HLX-S Spiral tensile and compressive test standPacking list
- SKU
- NB001376
- Maximum load
- 500N / 50Kg
- Stroke (excluding fixtures)
- 136mm
- Digital ruler
- 150Mm (resolution 0.01mm)
- loading method
- Handwheel rotation
- size
- 240×150×500mm
- Weight
- About 9kg
Introduction
Haibao Instruments HLX-S digital display spiral tension and compression test stand is a spiral tension and compression test stand with digital display scale, which is designed to cooperate with imported and domestic (CN) pointers and digital display push-pull force gauges (0-500N) It is suitable for all walks of life and scientific research institutions to do tension and compression load, insertion force, destructive test, etc. The maximum load of HLX-S digital display spiral tension and compression test stand is 500N, and the test tension stroke is 200mm. It has the characteristics of vertical and horizontal, simple operation and stable test.
Features
1. HLX-S digital display spiral tension and compression test frame adopts spiral trapezoidal screw.
2. It has the characteristics of manual operation, simple and stable, and dual-use for vertical and horizontal purposes.
3. The spiral tension and compression test frame is suitable for all walks of life and scientific research institutions to do tension and compression load, insertion force, destruction test, etc.
operation method
HLX-S digital display spiral tension and compression test stand can carry out tests in two directions of tension and compression. According to the characteristics of the product to be tested, place the HLX-S digital display spiral tension and compression test stand on a suitable position on the workbench. Rotate the handwheel on the workbench, and the meter will move up and down smoothly to complete the test work.

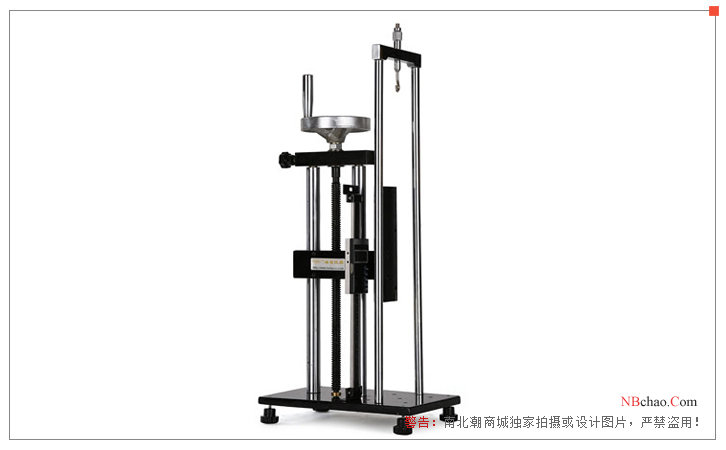

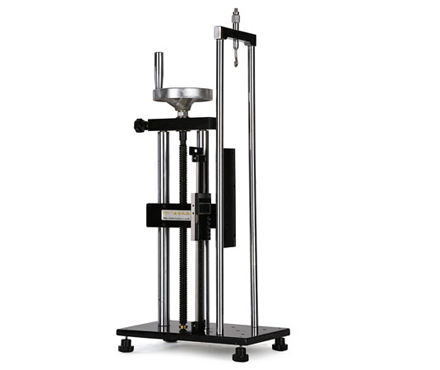

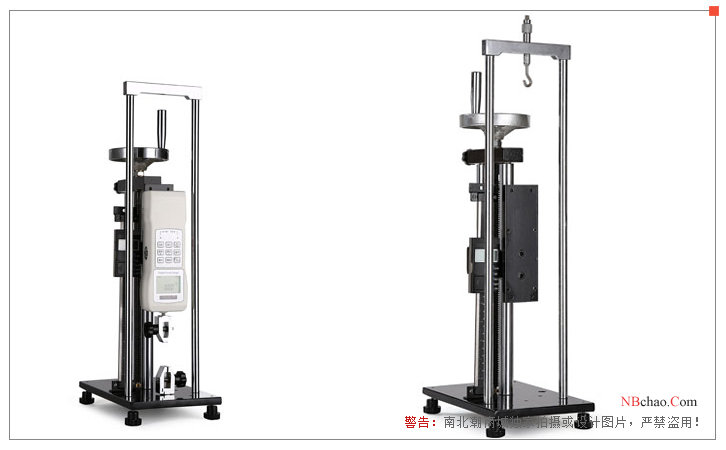

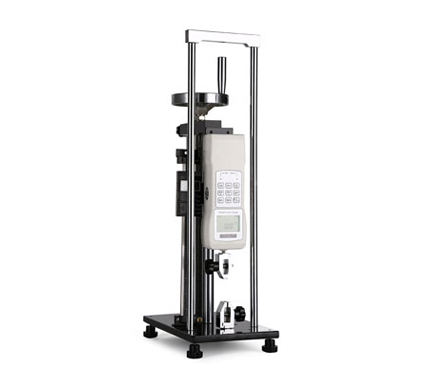

Pictures
