OHAUS ohaus PX224ZH 0.1mg Analytical Balance 220g Internal Calibration

SE
OHAUS PX224ZH Analytical Balance 0.1mg is an inner calibrated Electronic Balance with a Wind Shield. The PX224ZH comes standard with RS232 and USB interfaces. The general Minimum Weight of the 0.1mg Analytical Balance PX224ZH is 200mg, which is widely used in laboratories and education.
Model：
Contact
Details SPEC VIDEO CAT OI
Similar products

Ohaus PX224ZH Analytical BalanceSPEC

Ohaus PX224ZH Analytical BalanceDetails

Ohaus PX224ZH Analytical BalancePacking list

SKU
NB013798
Weighing range
200mg~220g
Minimum Weight
200mg
Readability
0.0001g
Nonlinear error
±0.0002g
Repeatability Error
0.0001g
Adjustment
Internal calibrated
Stabilization time
4s
Operating Conditions
10~30 ℃, 80% RH, non-condensing
Pan Size
Φ90mm
Power supply Voltage
AC adapter (standard)
Net Weight of instrument
4500g
Dimensions
309*321*209mm
Packaging Dimensions
507*387*531mm
Interface
RS-232、USB
monitor
Backlit dual-row LCD display
Pan Material
stainless steel
Tare Range
De-tare Weight function
Measurement unit
Carat; Custom; Grain; Gram; Two (Hong Kong, China); Kilogram; Mesghal; Milligram; Momme; Newton; Ounce; Ounce (Balanced); Bennywitt; Pound; Two (Singapore); Two (Taiwan, China, China); Tikka; Drag
temperature drift
±3PPM/K
Minimum Weight
82mg
PX224ZH
Analytical Balance

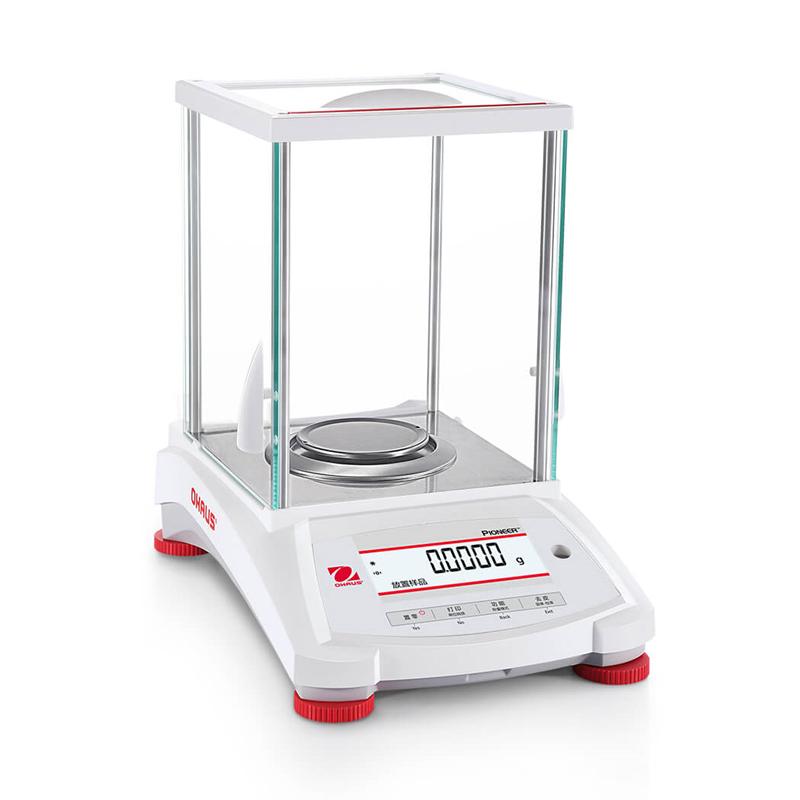

OHAUS ohaus PX224ZH 0.1mg Analytical Balance 220g Internal Calibration Picture

OHAUS Precision Analytical Balances are available in the full range of models

Introduction

With an accuracy of 0.0001g and a round weighing pan with a draft shield, the ohaus PX224ZH 0.1mg analytical balance is a PX series of internally calibrated electronic balances for laboratory, industrial and educational applications.PX224ZH 0.1mg analytical balanceIt has a dual-line display function, which can directly read weighing results, menu information and operation prompts, and is equipped with USB and RS232 communication interfaces as standard, which can be connected to other communication devices. Accurate weighing, affordable and easy to operate.

Product structure diagram

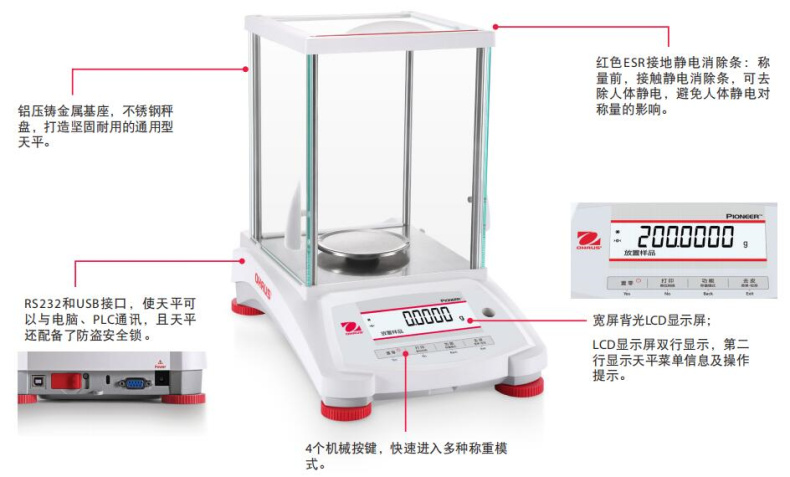

Functional structure diagram of the 0.1mg analytical balance PX224ZH auhaus

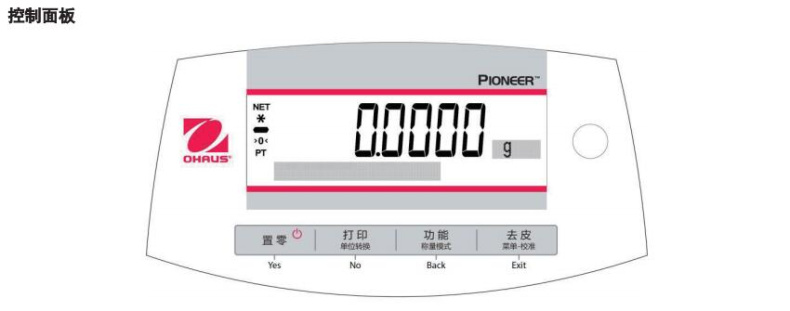

Detail of the control panel of the OHAUS PX224ZH analytical balance 0.1mg

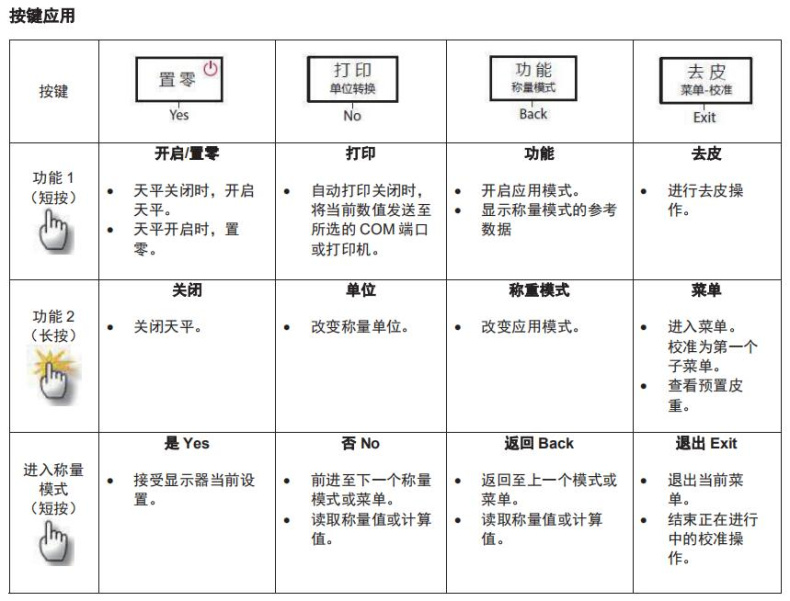

OHAUS PX224ZH Analytical Balance 0.1mg Button Application Notes

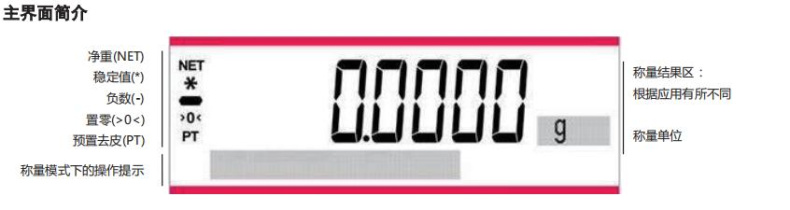

Description of the parameters of the OHAUS PX224ZH Analytical Balance 0.1mg display

Features

1. Application

Basic weighing, piece weighing, percentage weighing, checkweighing, animal weighing, density determination

2. Display screen

Widescreen backlit LCD display, second line showing balance menu information and operating tips.

3. Power supply

Power adapter (standard)

4. Communication

RS232 and USB communication interface (standard), GLP/GMP real-time clock

5. Structure

Aluminum die-cast metal base, plastic case, detachable stainless steel weighing pan, glass Wind Shield, under-hanging scale hook, anti-theft lock, protective cover, dust cover

6. Design features

User-adjustable environmental parameters and brightness, auto-tare and auto-dimming, range-configurable calibration points, software lock and reset menus, adjustable communication settings and data printing options, user-definable project name and user ID, software overload/underload indicator, stability indicator, four operating languages.

Comparison of OHAUS PX series models

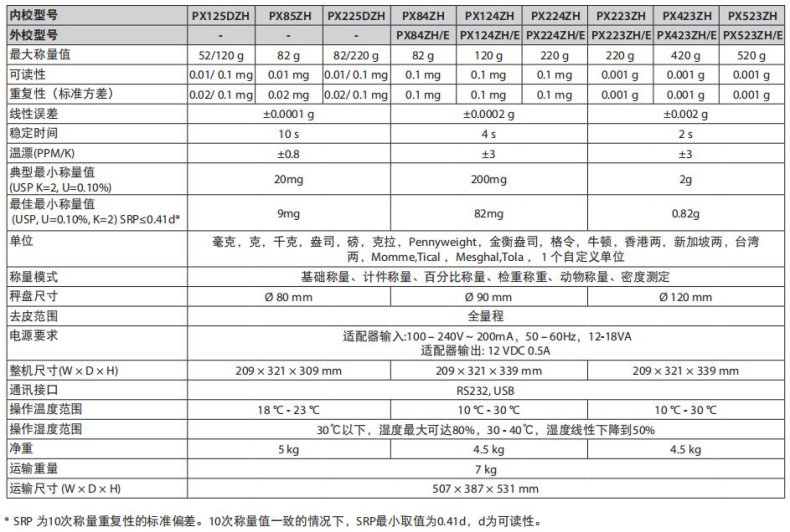

OHAUS PX224ZH analysis balance 0.1mg with the same series of model parameters

FAQ
QDoes the analytical balance meet the specifications of GB/T1714?
A Model PX224ZH analytical balance
QHow is the Ohaus analytical balance PX224ZH calibrated?
A Hello, you can refer to the operation manual. Each Ohaus analytical balance product page in NBchao. Com Mall has an operation manual for download.
QDensity measurement of OHAUS PX224ZH analytical balance, will there be bubbles on the solid?
A Hello, yes, to avoid any bubbles.
