EDDY current Coating Thickness Gauge HC-220 Hypertherm nonmagnetic Coating Thickness Gauge N type probe, can measure chrome plating on copper

HC-220

Coating Thickness Gauge

Measurement principle: eddy Current, Measurement range 0~1250μm, error range +/- 3%, resolution 0.1μm | 1μm, is a nonmagnetic Thickness Gauge, suitable for measurement of the thickness of nonconductive coatings on nonmagnetic metal substrates, can also be used for measurement of chromium plating on copper, measurement readings are displayed through the LCD screen, simple and convenient operation.

Introduction

The HC-220 Eddy Current Coating Thickness Gauge is a Hypertherm Instrument Eddy Current Coating Thickness Gauge with N-type transducer, a non-magnetic Thickness Gauge designed to measure the thickness of non-conductive coatings on non-magnetic metal substrates (in the range of 0~1250 microns) and can also be used to measure chrome plating on copper in the range of 0~40 microns.HC-220The eddy current coating Thickness Gauge is a silver-white case with only four buttons on the panel, and the measurement readings are displayed on the LCD display for easy and convenient operation.

Features

1. HaibaoinstrumentHC-220The eddy current coating Thickness Gauge uses the eddy current thickness measurement method to measure the thickness of the non-conductive covering layer on a non-magnetic metal matrix;

2. There are two measurement methods: continuous measurement mode and single measurement mode;

3. Two working methods: direct mode and group mode;

4. There are five statistics: average, maximum, minimum, number of tests, and standard deviation;

5. Two methods are used to calibrate together, and the systematic error of the probe can be corrected by the basic calibration method;

6. It has the function of storage: it can store 500 measured values;

7. It has the function of deleting: deleting a single suspicious data that appears in the measurement, and all the data in the storage area can be deleted in order to carry out new measurements;

8. The limit can be set: the measured value outside the limit can be automatically alarmed; and a histogram can be used to perform Fenix on a batch of measurements;

9. With printing function: it can print measured values, statistical values, limits, and histograms;

10. It has the function of communicating with the PC: the measured value and statistical value can be transmitted to the PC for further processing of the data;

11、HC-220Eddy current coating Thickness GaugesIt has the function of power supply under-Voltage indication;

12. There is a buzzer prompt during the operation;

13. It has the function of error prompt, and the error prompt is carried out through the screen display or buzzer;

14. There are two shutdown modes: manual shutdown mode and automatic shutdown mode.

Product structure diagram

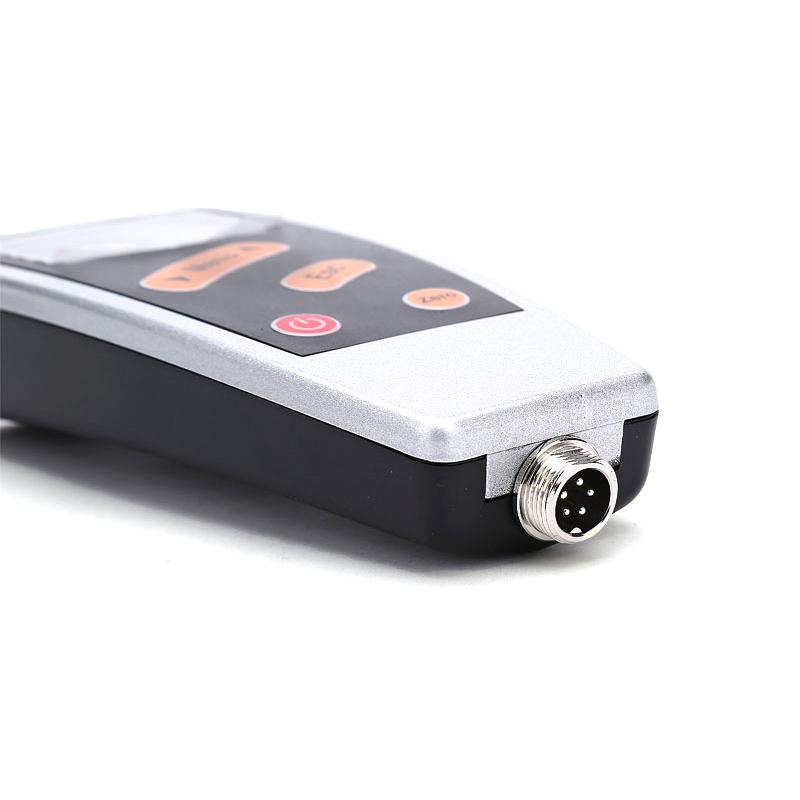

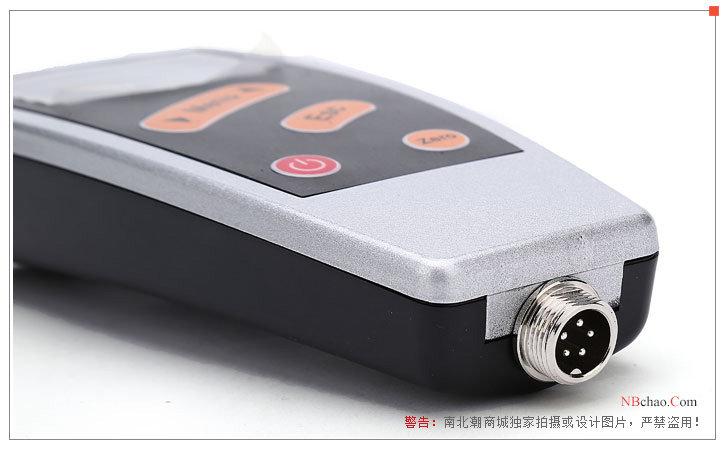

HC-220The composition of the eddy current coating Thickness Gauge includes: probe connection, communication interface, display, keyboard, and battery compartment. The details are as follows:

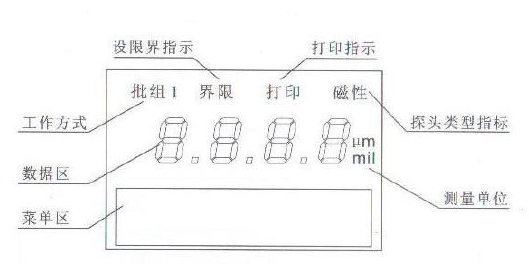

Description of LCD display parameters

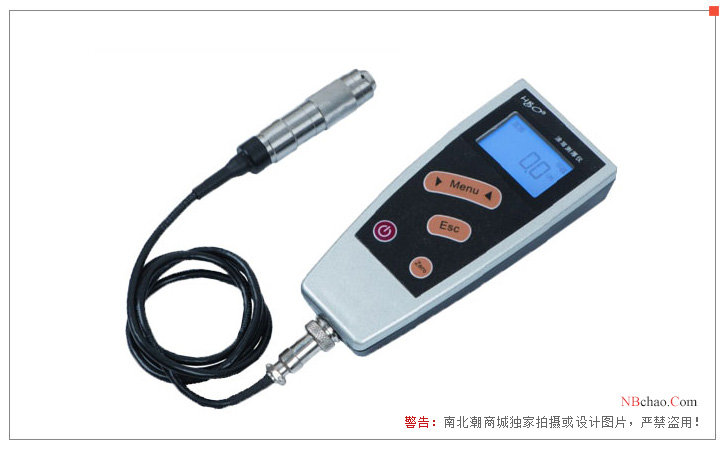

Actual picture of the product

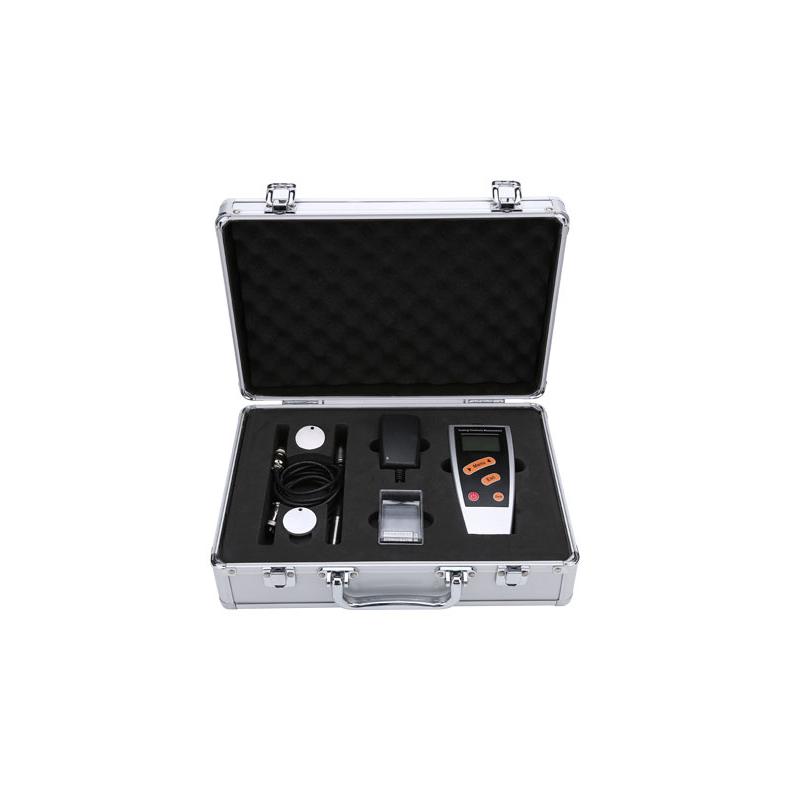

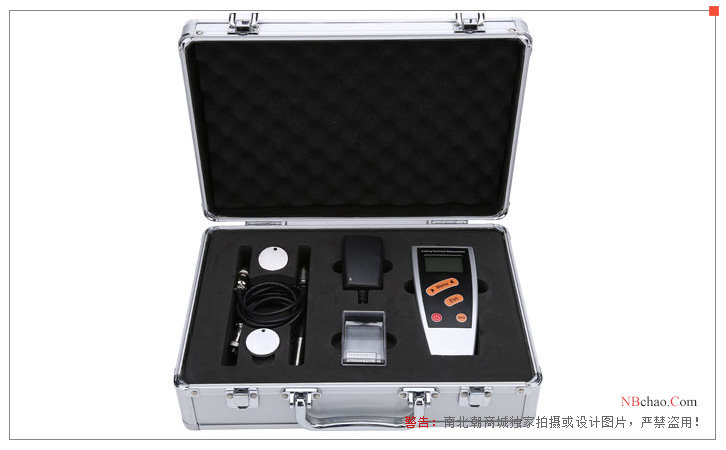

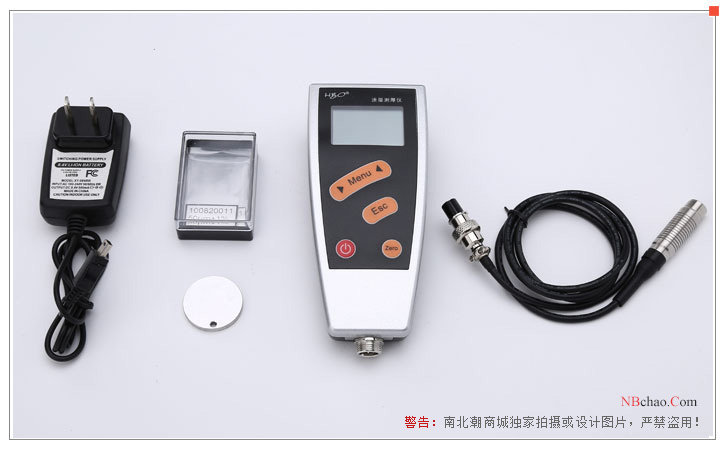

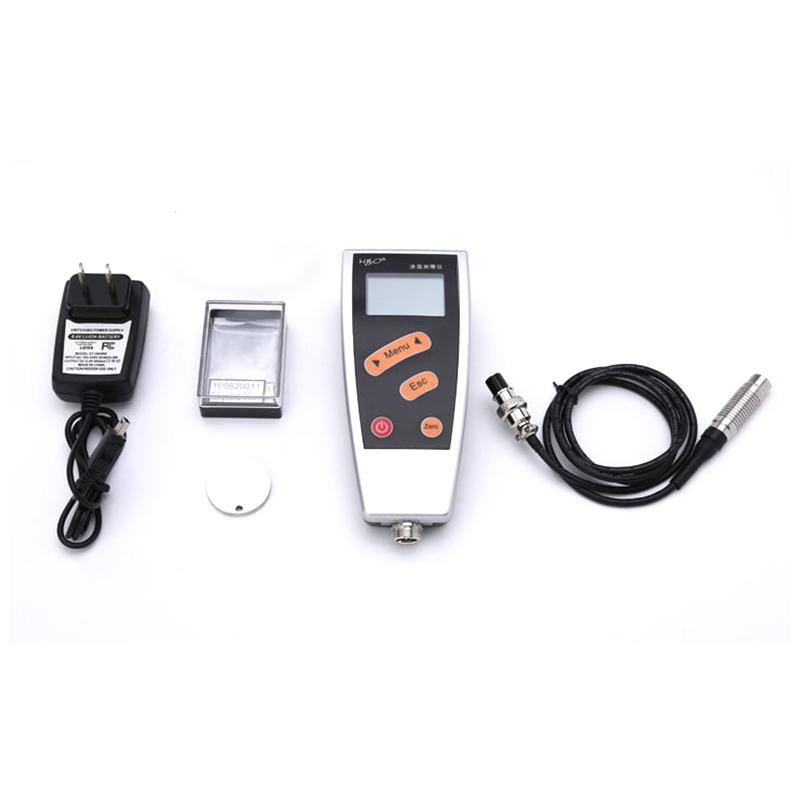

Packing list：host x1, probe x1, standard piece x5, substrate x1, alkaline battery x2, certificate x1, warranty card x1, manual x1, instrument case x1.

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
