Pointer Shore Durometer LX-D Hypertherm Type D Shore Durometer High Hardness Pointer

SE
High Hardness materials such as rubber and plastic can be measured, and microporous materials made of foaming agents in plastics; Dial-Type; meets multinational standards.
$156.00/set
PromotionLoading...
Coupon
Model：
Certificate
Contact
Details SPEC Con VIDEO CAT OI
Similar products

HBO LX-D Shore D Hardness GaugeSPEC

HBO LX-D Shore D Hardness GaugeDetails

HBO LX-D Shore D Hardness GaugePacking list

SKU
NB001385
Specification model
LX-D
Measurement range
20-90HD
Graduation
1HD
error of indication
≤±1HD
Dimension
113*60*24mm
Weight
0.2kg
LX-D
Shore D Hardness Gauge
High Hardness materials such as rubber and plastic can be measured, and microporous materials made of foaming agents in plastics; Dial-Type; meets multinational standards.
Pointer Shore Durometer LX-D Hypertherm Type D Shore Durometer High Hardness Pointer Picture

Introduction

Haibao Instruments LX-D Pointer Shore Hardness Tester is a D-type Shore Hardness Tester with a large pressure range. The measured hardness value is displayed by the rotation of the pointer on the dial. LX-D Dial-Type Shore Hardness Tester is strictly designed and produced by Haibao according to GB/T531-99, GB2411-80, HG/T2489-93, JJG304-2003 and other standards, mainly used for some high hardness materials Hardness test experiment.

LX-D pointer Shore Hardness Tester has the advantages of convenient portability, good stability, simple structure and accurate measurement.

Applications

LX-D Pointer Shore Hardness Tester is suitable for microporous materials made of rubber and plastic, plastic containing foaming agent, etc., mainly for materials with high hardness.

Note: When using Type A Shore Hardness Tester to measure a value exceeding 90 degrees, it is recommended to use LX-D pointer Shore Hardness Tester (D type).

Product Standards

LX-D Pointer Shore Hardness Tester complies with standards DiN 53505, ASTMD2240, 1S0/R868, JISR7215.

Pictures

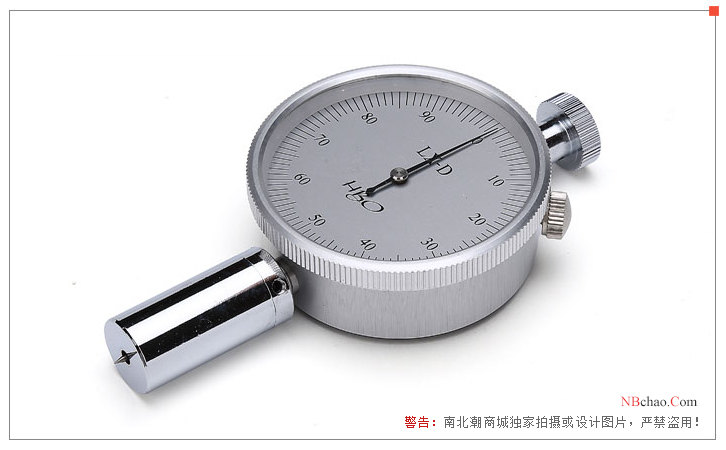

Appearance of Haibao Instruments LX-D Pointer Shore Hardness Tester

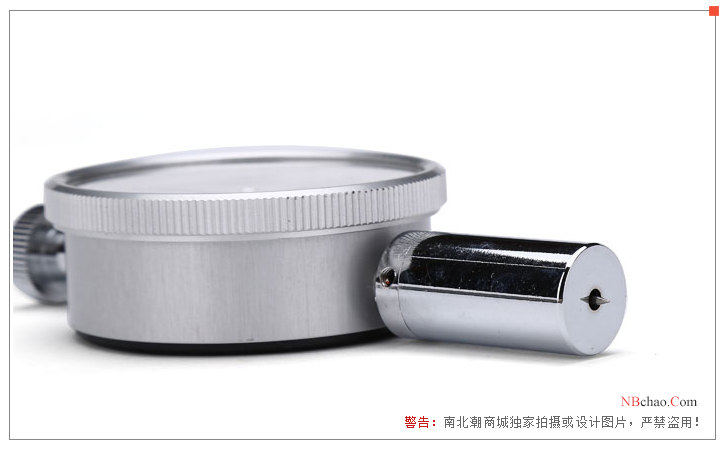

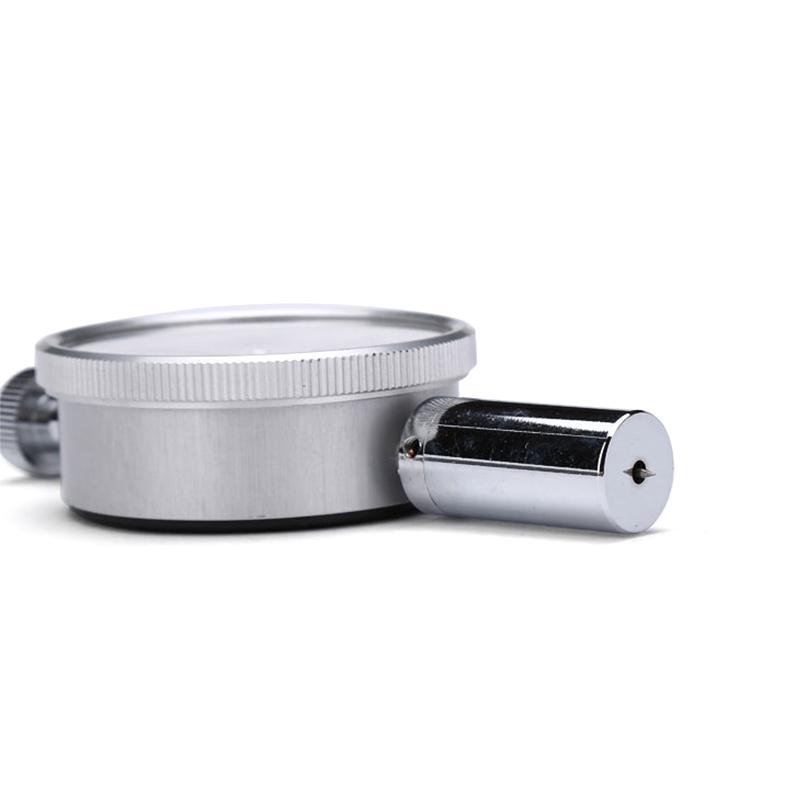

Hypertherm Instruments LX-D Pointer Type Shore Hardness Tester Head Details

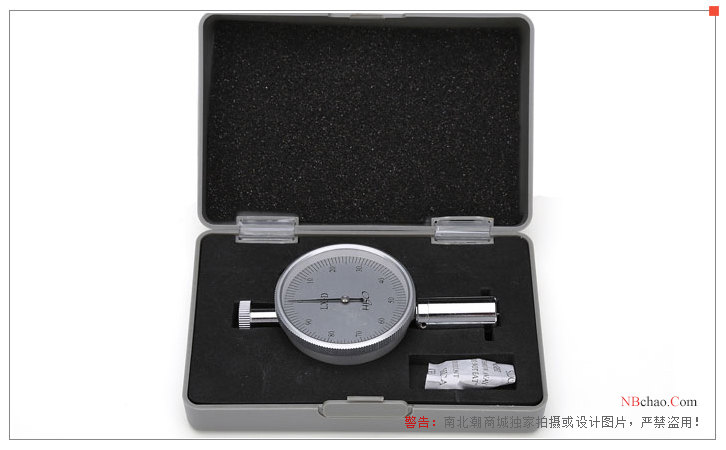

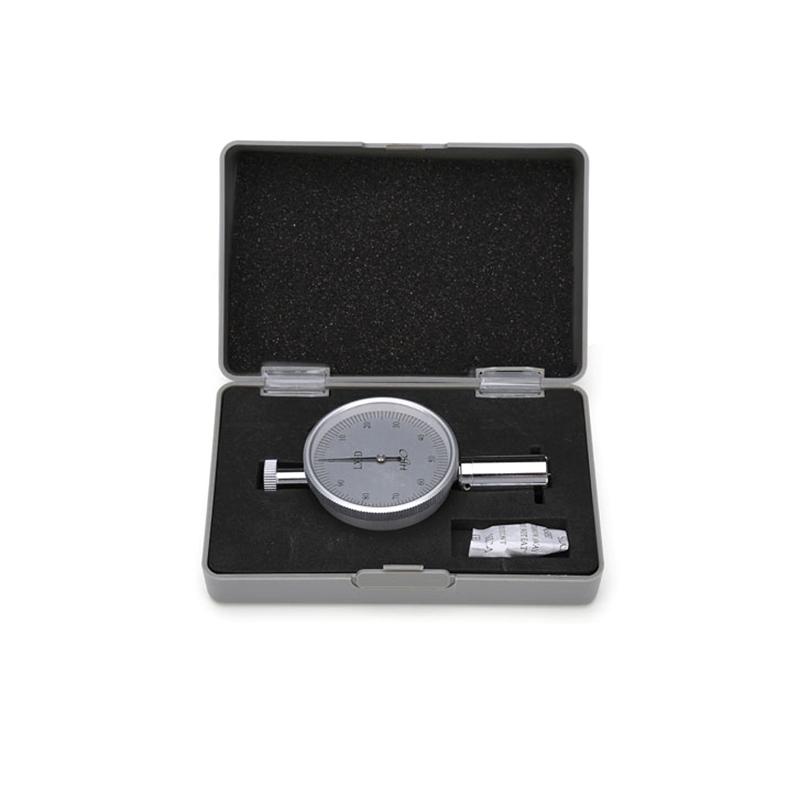

Haibao Instruments LX-D Pointer Type Shore Hardness Tester Package Accessories

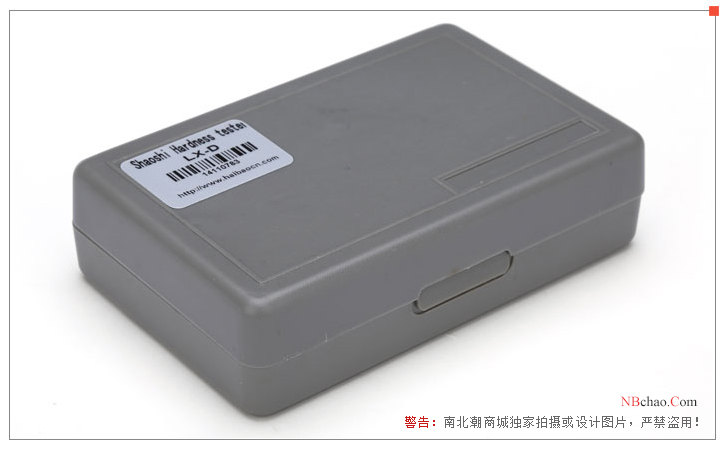

Hypertherm Instruments LX-D Pointer Shore Hardness Tester Outer Packing Box

Zeroing Instructions

When pressing the LX-D pointer Shore Hardness Tester on the glass to check the zero position or adjusting the zero position on the fixed load measuring stand, it is necessary to place a hard special gauge block under the foot of the pointer Shore Hardness Tester , otherwise , the indenter of the Hardness Tester will damage the glass plate, and it is difficult to display the value accurately. For the specific operation method, please refer to the instruction manual of the special gauge block.

FAQ
QWhich hardness gauge is suitable for hard plastics?
A Recommended Haibao LX-D Shore D hardness gauge, it is specially designed for hard plastics, acrylic and other high Hardness materials, Measurement range 20-90HD, high accuracy, in line with national standards.
QWhat is the Hardness Tester for Ash Wood?
A You can use Shore Shore Durometer.
QLX-D Shore Shore Durometer Accuracy grade?
A Accuracy is plus or minus 1.
QExcuse me, if the Shore Shore Durometer is not used with a bracket, will the handheld measurement affect the Measuring accuracy?
A The relative data of the bracket test will be more stable, and certain human errors can be avoided. Handheld measurement is also possible if the staff operates normally.
QAre all Shore hardness testers (pointers) available for inspection in the JB/T6148 standard?
A Not necessarily, but this LX-D Shore hardness tester (pointer) can be considered.
QWhat is the difference between Hypertherm's LX-D and LX-D-2 durometers?
A The LX-D Shore hardness tester is a single-needle type with only one tracking pointer, while the LX-D-2 Shore hardness tester is a double-pointer type with a red pointer for recording peaks.
