Portable Shore Durometer LX-AO Hypertherm Type AO Portable Shore Durometer Hard Rubber, Hard Resin, etc

SE
Measurement range 20-90HAO, needle stroke range 0~2.5mm, needle end pressure 0.55N-8.06N.
$136.00/set
PromotionLoading...
Coupon
Model：
Certificate
Contact
Details SPEC Con VIDEO CAT OI
Similar products

HBO LX-AO Shore AO Hardness GaugeSPEC

HBO LX-AO Shore AO Hardness GaugeDetails

HBO LX-AO Shore AO Hardness GaugePacking list

SKU
NB001386
Specification model
LX-AO
Measurement range
20-90HAO
Graduation
1HAO
error of indication
≤±1HAO
Dimension
113*60*24mm
Weight
0.2kg
LX-AO
Shore AO Hardness Gauge
Measurement range 20-90HAO, needle stroke range 0~2.5mm, needle end pressure 0.55N-8.06N.
Portable Shore Durometer LX-AO Hypertherm Type AO Portable Shore Durometer Hard Rubber, Hard Resin, etc Picture

product description

Haibao Instruments Dial-Type portable Shore Hardness Tester has three types of Shore Hardness Tester: A type, D type and AO type. For the above, the microporous material for shoes made of rubber and plastic, and the plastic contains a foaming agent is used for hardness testing. The test result value of the LX-AO portable Shore Hardness Tester is directly indicated by the pointer on the dial of the Hardness Tester, which is clear and intuitive.

Applications

LX-AO Portable Shore Hardness Tester is suitable for hardness testing of general hard rubber, hard resin, acrylic, glass, thermoplastic, printing plate, fiber, etc.

Standards

LX-AO Portable Shore Hardness Tester complies with the standards DiN53505, ASTMD2240, 1S0/R868, JISR7215, and strictly implements the relevant regulations of GB/T531-99, GB2411-80, HG/T2489-93, and JJG304-2003.

Pictures

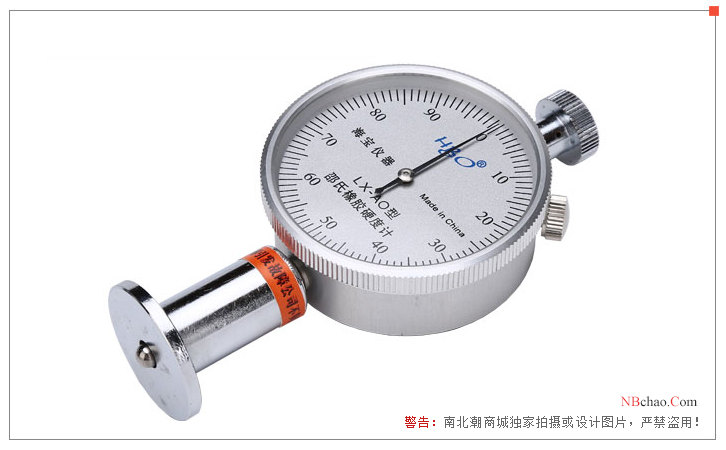

Appearance of Hypertherm Instruments LX-AO Portable Shore Hardness Tester

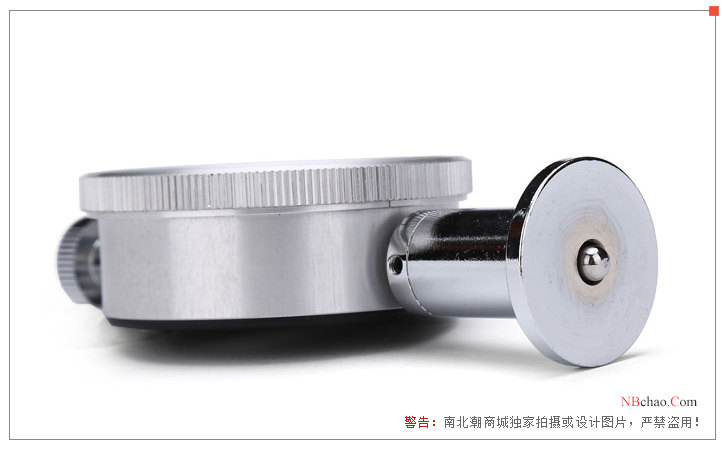

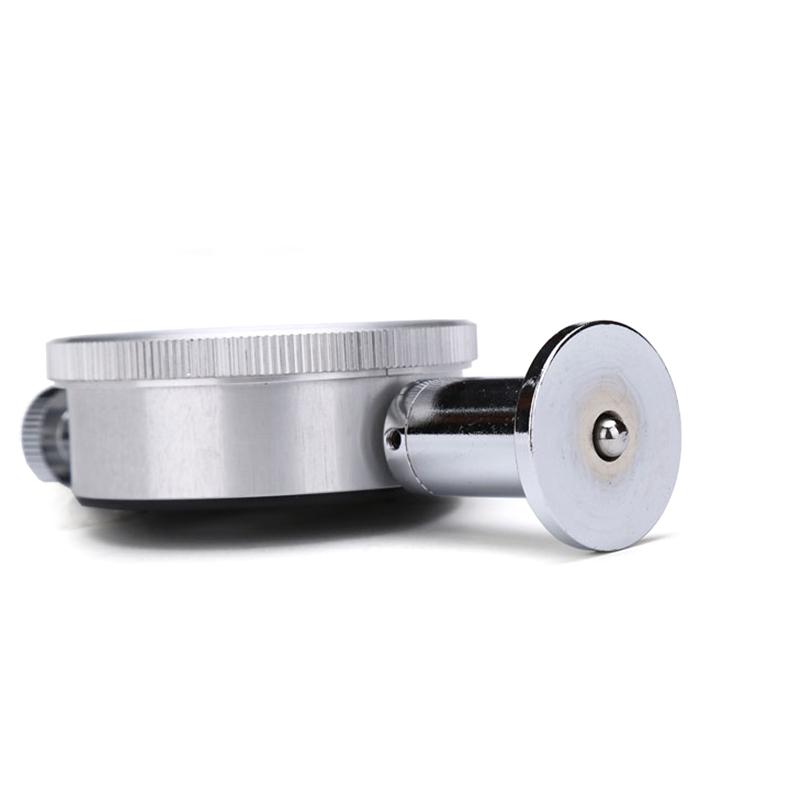

Hypertherm Instruments LX-AO Portable Shore Hardness Tester Probe Detail

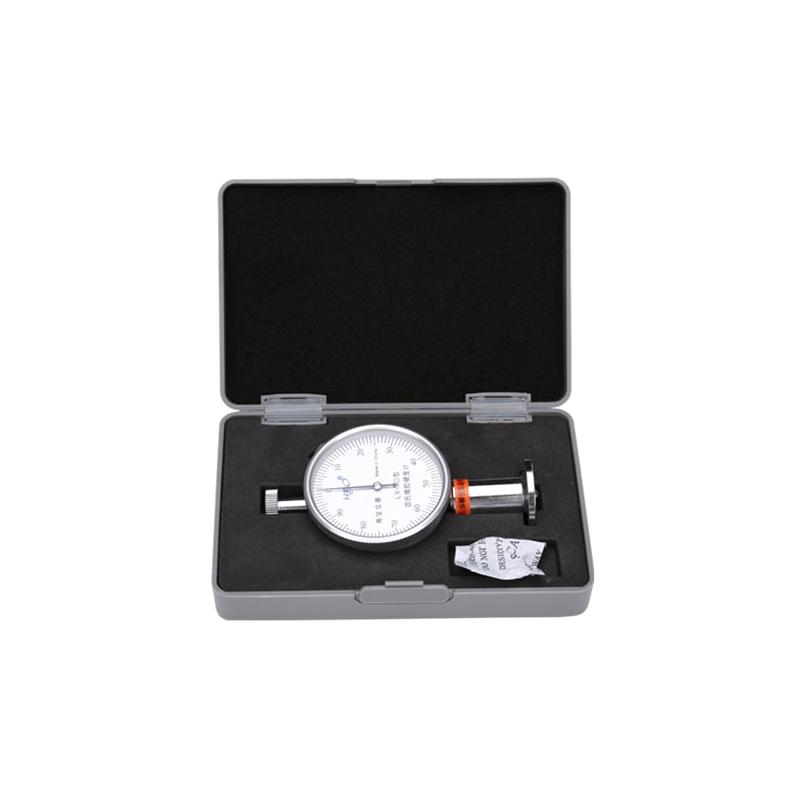

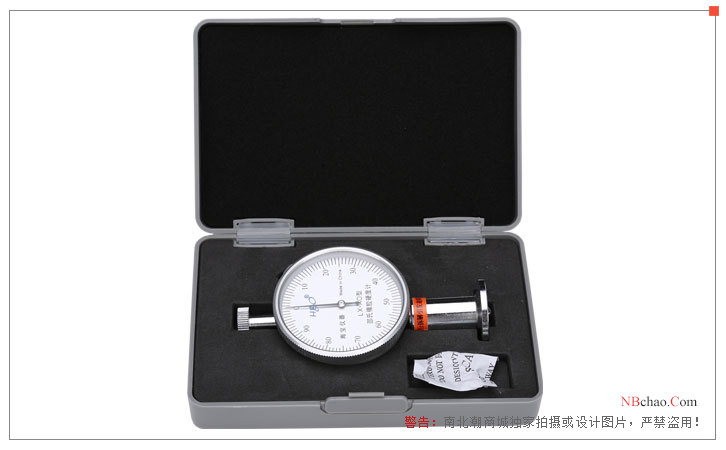

Packing box diagram of Haibao Instruments LX-AO Portable Shore Hardness Tester


Product operation method

1. Place the sample on a solid surface, hold the LX-AO Portable Shore Hardness Tester , and keep the indenter at least 12mm from the edge of the sample.

2. Press the presser foot firmly on the sample, make the presser needle vertically press into the sample, until the presser foot is in full contact with the sample, take a reading within 1s.

3. Measure the hardness value 5 times at different positions with a distance of at least 6 mm between the measuring points, and take the average value (the distance between the measuring points for microporous materials is at least 1 5 mm).

4. If it is to stabilize the test conditions and improve the test accuracy, the LX-AO portable Shore Hardness Tester can be tested on the same type of test fixture produced by the supporting production.

FAQ
QWhat is the thickness of this measurement object? Can it measure the glue Hardness of 0.1mm?
A This national standard is more than 5mm. If the sample is flat, it can stack up to 5 layers; the actual test is at least 3mm. But the one that is too thin cannot be measured, because it is too thin. For example, the Hardness of the desktop is hard, and then you put a very thin sheet on it. If it is pressed, part of it belongs to the Hardness of the desktop.
QWhat is the thickness range of LX-AO measurement?
A National standard 5mm or more, if the sample is flat, up to 5 layers can be stacked, and the actual test is at least 3mm.
QIs there any difference between AO and C type?
A AO measures low Hardness vulcanized rubber and thermal plasticity rubber and other materials, C type measures low Hardness materials such as foam, sponge, rubber microporous materials
QCan this Hypertherm Shore hardness tester measure Glass hardness?
A Hello, it's okay.
QExcuse me, if the Shore Shore Durometer is not used with a bracket, will the handheld measurement affect the Measuring accuracy?
A The relative data of the bracket test will be more stable, and certain human errors can be avoided. Handheld measurement is also possible if the staff operates normally.
QMeet JB/T6148 Shore hardness tester (pointer)
A LX-AO Shore hardness tester (pointer), please refer to it.
