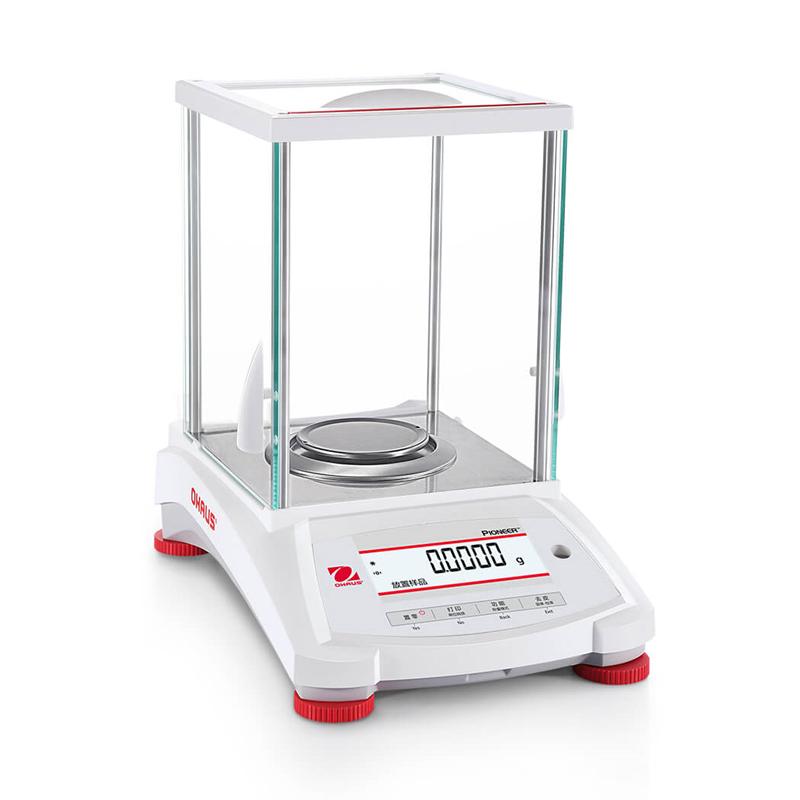

OHAUS ohaus PX223ZH 0.001g Precision Balance 220g Internal Calibration

SE
OHAUS PX223ZH Precision Balance is internally calibrated 0.001g Precision Balance with a range of 2g~ 220g, PX223ZH Precision Balance 0.001g has a full scale Tare Range, and the measurement can be stable within 2s.
Model：
Contact
Details SPEC VIDEO CAT OI
Similar products

Ohaus PX223ZH Precision BalanceSPEC

Ohaus PX223ZH Precision BalanceDetails

Ohaus PX223ZH Precision BalancePacking list

SKU
NB013891
Weighing range
2g~220g
Minimum Weight
2g
Readability
0.001g
Nonlinear error
±0.002g
Repeatability Error
0.001g
Test Weight
without
Adjustment
Internal calibrated
Stabilization time
2s
Operating Conditions
10~30 ℃, 80% RH, non-condensing
Pan Size
120mm
Power supply Voltage
AC adapter (standard)
Net Weight of instrument
4500g
Dimensions
309*321*209mm
Packaging Dimensions
507*387*531mm
Interface
RS-232、USB
monitor
Backlit dual-row LCD display
Pan Material
stainless steel
Tare Range
De-tare Weight function
Measurement unit
Carat; Custom; Grain; Gram; Two (Hong Kong, China); Kilogram; Mesghal; Milligram; Momme; Newton; Ounce; Ounce (Balanced); Bennywitt; Pound; Two (Singapore); Two (Taiwan, China, China); Tikka; Drag
temperature drift
±3PPM/K
Minimum Weight
0.82g
PX223ZH
Precision Balance
OHAUS ohaus PX223ZH 0.001g Precision Balance 220g Internal Calibration Picture

OHAUS Precision Analytical Balances are available in the full range of models

Introduction

The OHAUS PX223ZH 0.001g Precision Balance is an internally calibrated thousandth of an electronic precision balance with a draft shield and comes with a red ESR ground static elimination strip for easy static removal.PX223ZH 0.001g precision balances are widely used in laboratories, industry and education. Accurate weighing, affordable and easy to operate. PX precision analytical balances feature a two-line display for intuitive reading of weighing results, menu information and operating prompts, as well as RS232 and USB communication interfaces.

Product structure diagram

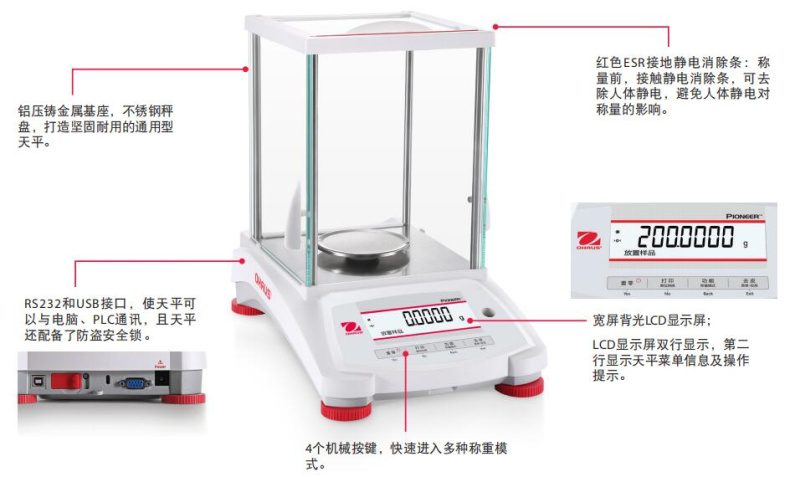

Functional structure diagram of the PX223ZH precision balance of OHAUS

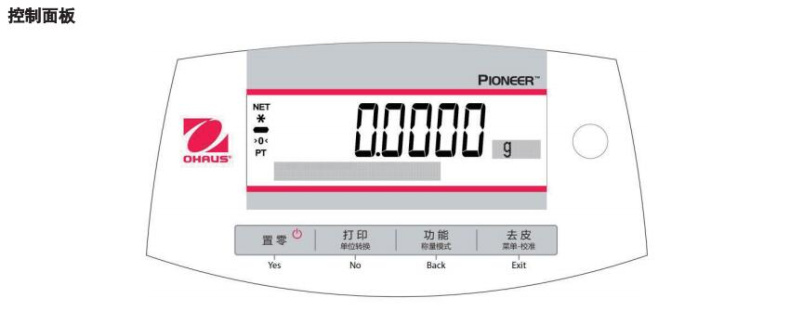

OHAUS PX223ZH precision balance button panel detail

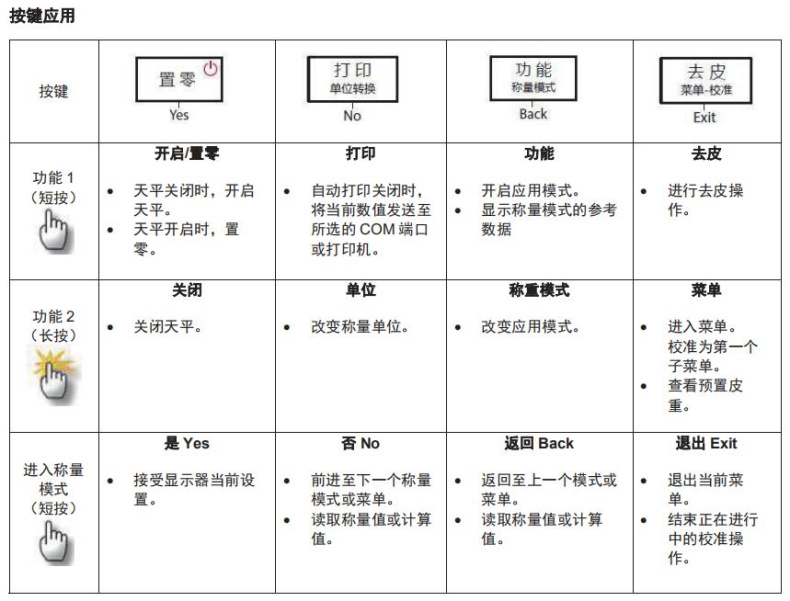

OHAUS PX223ZH Precision Balance Keys Application Notes

Features

1. Super cost-effective

PX electronic balances for accurate weighing and affordability.

2. The structure is sturdy and durable

Aluminum die-cast metal base, plastic case, detachable stainless steel weighing pan, glass Wind Shield, under-hanging scale hook, anti-theft lock, protective cover, dust cover

3. Unique design, easy to operate

The display screen is displayed in two rows, the second line can display the balance Chinese operation tips, the user can operate the balance without referring to the manual; the weighing chamber has its own red ESR static elimination strip above the weighing chamber, the unique antistatic design ensures accurate balance weighing; the balance is equipped with standard USB and RS232 interfaces, data communication is convenient.

Comparison of OHAUS PX series models

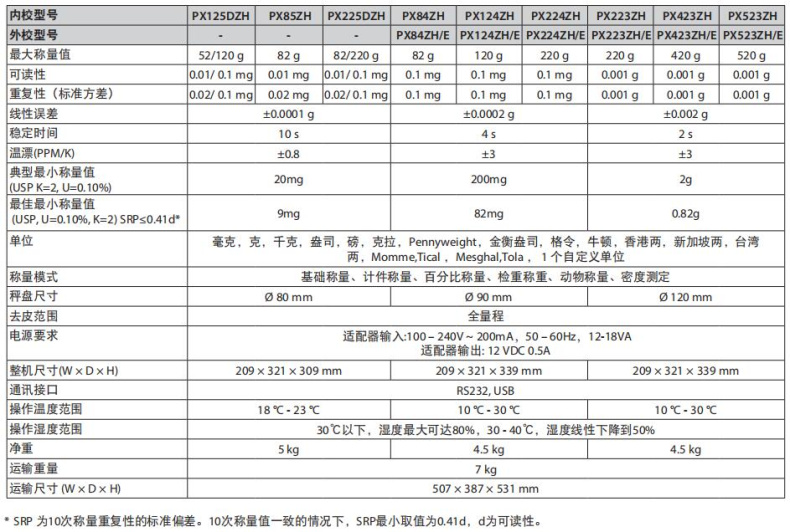

Comparison of the model parameters of OHAUS PX223ZH precision balances and those of the same series of balances

FAQ
QDoes Precision Balance meet the specifications of GB/T27596?
A Model PX223ZH Precision Balance
QWhat is the peeling range of Ohaus Precision Balance PX series?
A Hello, Balance's full scale.
QWhat is the reason why Ohaus Precision Balance shows ERR8.4?
A Hello, it may be that the weight reading is lower than the underload setting.
