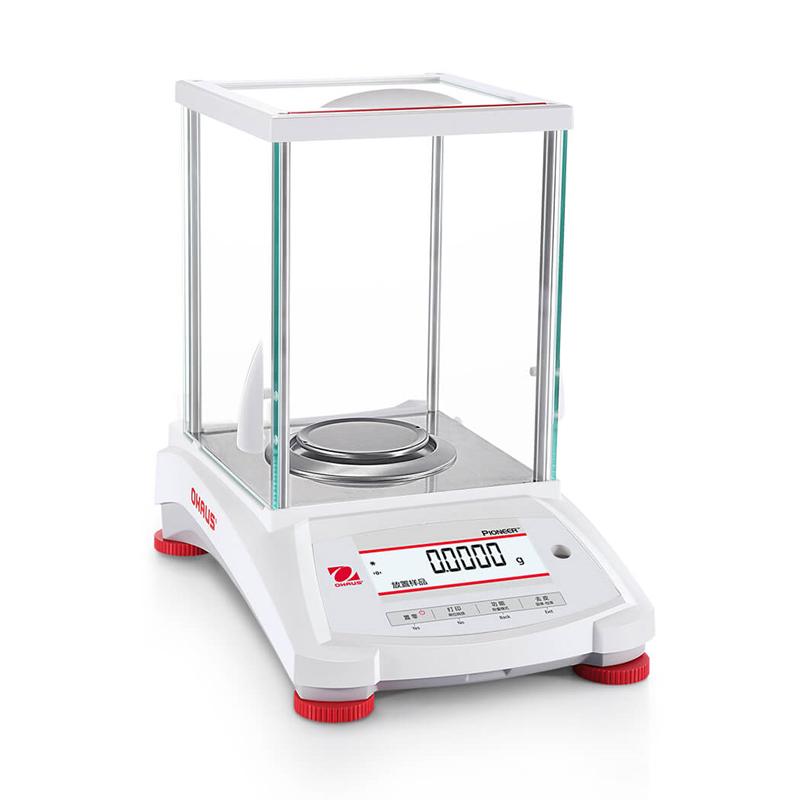

OHAUS ohaus PX223ZH/E 1mg Precision Balance 220g External Calibration

SE
The OHAUS PX223ZH/E 1mg Precision Balance is a laboratory electronic Precision Balance with a Wind Shield, featuring a stainless steel round pan. The 1mg Precision Balance PX223ZH/E has designed a unique red ESR static elimination strip with USB and RS232 interfaces.
Model：
Contact
Details SPEC VIDEO CAT OI
Similar products

Ohaus PX223ZH/E Precision BalanceSPEC

Ohaus PX223ZH/E Precision BalanceDetails

Ohaus PX223ZH/E Precision BalancePacking list

SKU
NB013894
Weighing range
2g~220g
Minimum Weight
2g
Readability
0.001g
Nonlinear error
±0.002g
Repeatability Error
0.001g
Test Weight
Standard
Adjustment
Externally calibrated
Stabilization time
2s
Operating Conditions
10~30 ℃, 80% RH, non-condensing
Pan Size
120mm
Power supply Voltage
AC adapter (standard)
Net Weight of instrument
4500g
Dimensions
309*321*209mm
Packaging Dimensions
507*387*531mm
Interface
RS-232、USB
monitor
Backlit dual-row LCD display
Pan Material
stainless steel
Tare Range
De-tare Weight function
Measurement unit
Carat; Custom; Grain; Gram; Two (Hong Kong, China); Kilogram; Mesghal; Milligram; Momme; Newton; Ounce; Ounce (Balanced); Bennywitt; Pound; Two (Singapore); Two (Taiwan, China, China); Tikka; Drag
temperature drift
±3PPM/K
Minimum Weight
0.82g
PX223ZH/E
Precision Balance
OHAUS ohaus PX223ZH/E 1mg Precision Balance 220g External Calibration Picture

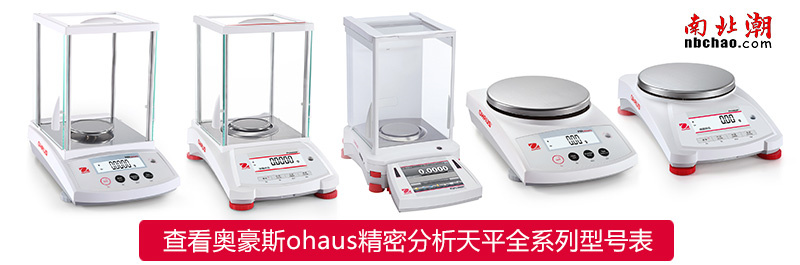

OHAUS Precision Analytical Balances are available in the full range of models

Introduction

The OHAUS PX223ZH/E 1mg Precision Balance is a thousandth of a laboratory precision balance, an external calibration series of PX Series precision balances with a unique antistatic design with a red ESR static elimination bar.The PX223ZH/E 1mg precision balance features a durable aluminum die-cast metal base and a stainless steel round weighing pan. Precision balances are used in a wide range of applications in industry, laboratories and education.

Product structure diagram

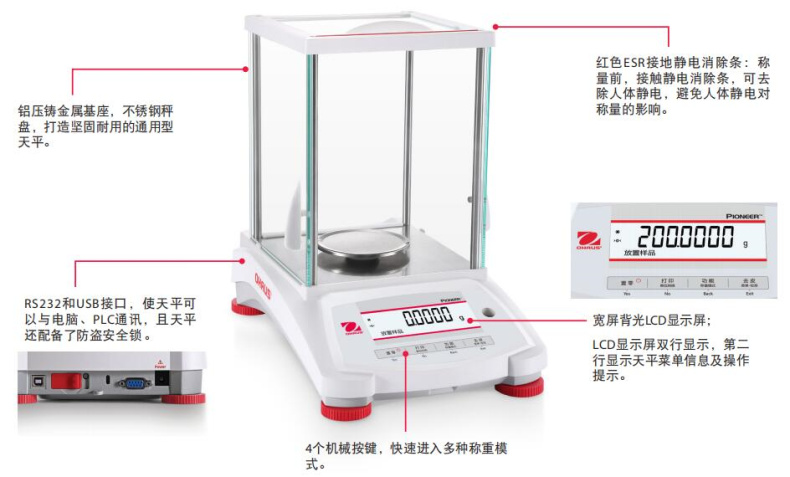

OHAUS PX223ZH/E 1mg Precision Balance Functional Structure

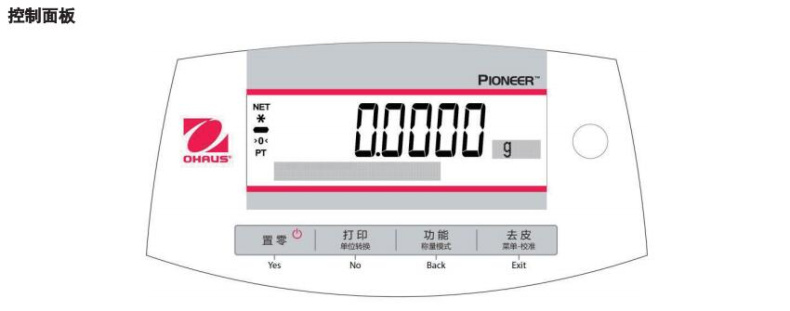

OHAUS PX223ZH/E 1mg Precision Balance Control Panel Instructions

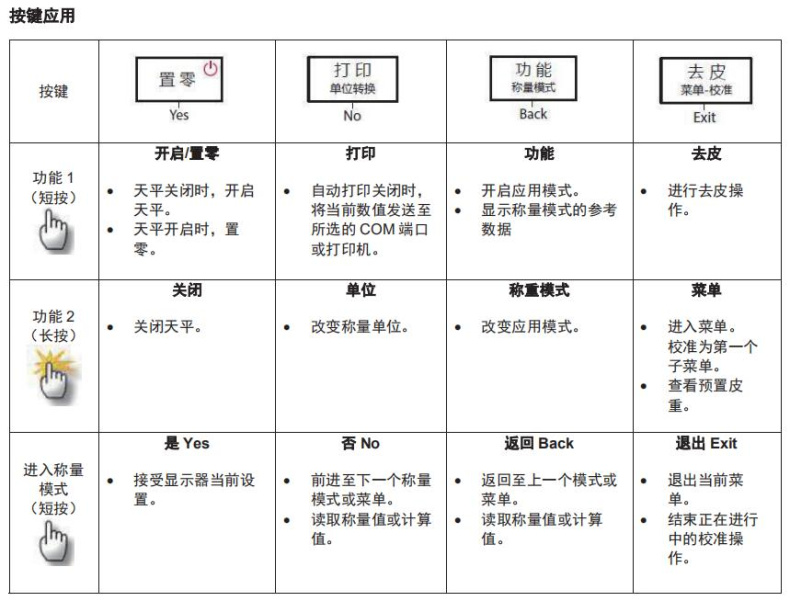

Button application instructions

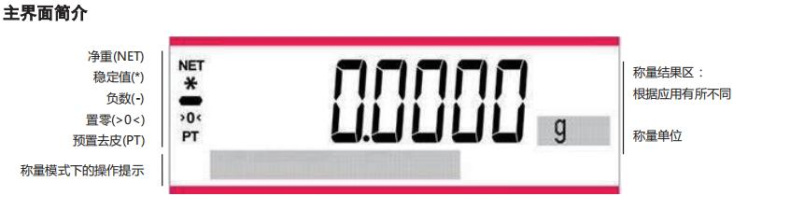

An introduction to the OHAUS PX223ZH/E 1mg precision balance note interface

Features

1. Super cost-effective

PX electronic balances for accurate weighing and affordability.

2. The structure is sturdy and durable

Aluminum die-cast metal base, plastic case, detachable stainless steel weighing pan, glass Wind Shield, under-hanging scale hook, anti-theft lock, protective cover, dust cover

3. Unique design, easy to operate

The display screen is displayed in two rows, the second line can display the balance Chinese operation tips, the user can operate the balance without referring to the manual; the weighing chamber has its own red ESR static elimination strip above the weighing chamber, the unique antistatic design ensures accurate balance weighing; the balance is equipped with standard USB and RS232 interfaces, data communication is convenient.

Comparison of OHAUS PX series models

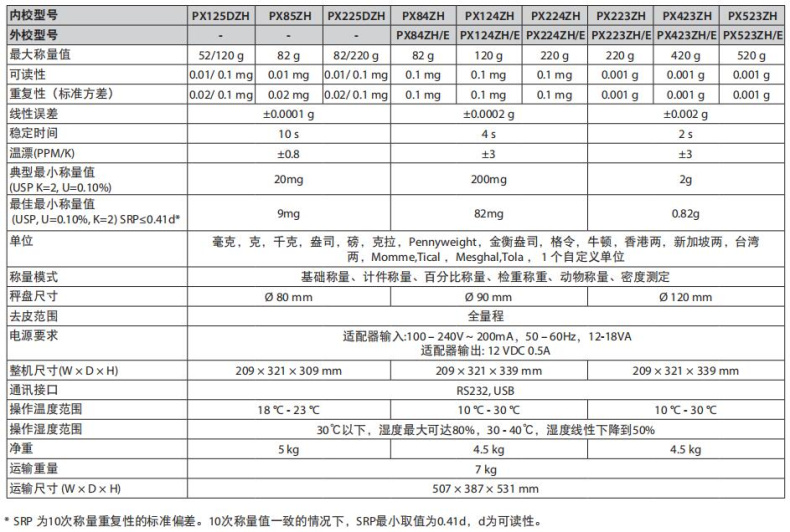

Comparison of the parameters of OHAUS PX223ZH/E 1mg precision balance with the same series of models

FAQ
QIs there a precision Balance of GB/T26497 standard?
A This OHAUS Precision Balance is fine!
QOHAUS 1mg accuracy precision Balance, which model has static elimination strip?
A Hello, Ohaus' PX series analytical balances all have red ESR static elimination strips.
QWhat is the reason why Ohaus PX223ZH/E Balance cannot modify the menu settings?
A Hello, the possible reasons are that the submenu is locked; second, the trade settlement is set to open.
QWhat is the weight of PX223ZH/E Precision Balance? Is it an internal school or an external school?
A Hello, the OHAUS PX223ZH/E has a weighing range of 220g and is an externally calibrated precision Balance.
