Digital microporous material Hardness Gauge HS-C Haibao C type digital microporous material Hardness Gauge

HS-C

Digital rubber and plastic microporous material Hardness Gauge

Measurement range 20-90HC, resolution 0.1HC, error within 20-90HC ≤ +/- 1HC

product description

Haibao HS-C digital microporous material Hardness Tester is a C-type digital display Shore Hardness Tester that displays test data through the LCD, and the measuring range is 0-100HC. HS-C digital microporous material Hardness Tester is mainly used to measure the hardness value of rubber and plastic microporous materials made of foaming agent with a pressure of 0.5kg/cm2 or more when the compression rate is 50%. The test resolution ^is 0.1HC. HS-C digital microporous material Hardness Tester has the advantages of simple operation, convenient carrying, accurate measurement, beautiful appearance, etc., and can be connected to PC through RS232 communication cable for data transmission.

Product Structure

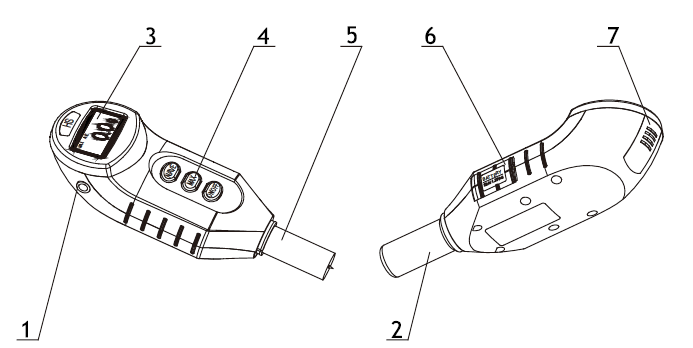

The structure of the HS-C digital microporous material Hardness Tester includes: 1. Communication interface; 2. Protective cover; 3. Display; 4. Buttons; 5. Measuring device; 6. Battery compartment; The details are as follows:

Features

1. It has the functions of peak value latch, average value calculation and underVoltage alarm;

2. Use the RS232 communication cable to communicate with the computer;

3. With automatic shutdown function;

Measurement methods

Put the sample on a solid plane, hold the HS-C digital microporous material Hardness Tester , keep the presser foot parallel to the surface of the sample, and press the indenter vertically into the sample smoothly, without any vibration during the process. When the bottom surface of the HS-C digital microporous material Hardness Tester is just in complete and stable contact with the sample surface, take a reading within 1s. At this time, the screen display value of the HS-C digital microporous material Hardness Tester is the hardness of the sample. value.

Pictures

Packing list：Hardness gauge x1, certificate x1, warranty card x1, manual x1, instrument case x1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
