Hypertherm LAC-J Hardness Gauge for type A, AO, C Shore Durometer

SE
The LAC-J Shore Durometer test stand is a test stand that can be used with Hypertherm Pointer Shore Durometer AC type. The LAC-J Shore Durometer test stand adopts a tempered Glass platform.
$158.00/set
PromotionLoading...
Coupon
Model：
Certificate
Contact
Details SPEC Con

HBO LAC-J Hardness gauge test standSPEC

HBO LAC-J Hardness gauge test standDetails

HBO LAC-J Hardness gauge test standPacking list

SKU
NB001395
Column lifting space
≤140mm
Dimension
165*145*350mm
Weight
5.2kg
LAC-J
Hardness gauge test stand
Hypertherm LAC-J Hardness Gauge for type A, AO, C Shore Durometer Picture

Introduction

LAC-J Shore Hardness Tester Test Stand is a newly developed bracket specially developed by Haibao Instruments for Shore hardness testing. It has the advantages of compact structure, scientific and reasonable design, and good stability. LAC-J Shore Hardness Tester Test Stand is specially used for Haibao A-type and C-type pointer Shore Hardness Testers, which can greatly improve the accuracy and stability of the test. The toughened glass platform used in the test platform of the LAC-J Shore Hardness Tester avoids the disadvantages of traditional metal platforms such as easy to rust.

product structure

The composition and structure of the LAC-J Shore hardness test stand includes: Bakelite star handle, hardness scale, fine-tuning handwheel, handle, azimuth adjustment knob, weight, cross arm, Hardness Tester installation rod, circular platform, handle, specifically As shown below:

Haibao Instruments LAC-J Shore Hardness Tester test frame structure diagram

Instructions

1. Put the sample on the circular platform, and loosen the star-shaped handle on the cross arm of the LAC-J Shore Hardness Tester;

2. Adjust the height of the cross arm until the bottom surface of the indenter of the Shore Hardness Tester is about 5mm away from the tested surface of the sample;

3. Tighten the star handle on the cross arm;

4. Press down the handle to make the Shore Hardness Tester read within 1 second when the presser foot and the sample are fully in contact with the weight of the fixed load. The value displayed by the Hardness Tester is the hardness value of the tested sample.

5. In order to improve the test accuracy, test about 5 times at different positions with a distance of at least 6mm between the measuring points and take the average value.

Pictures

Hypertherm LAC-J Shore Hardness Tester Test Stand Front View

Hypertherm LAC-J Shore Hardness Tester Test Stand Details

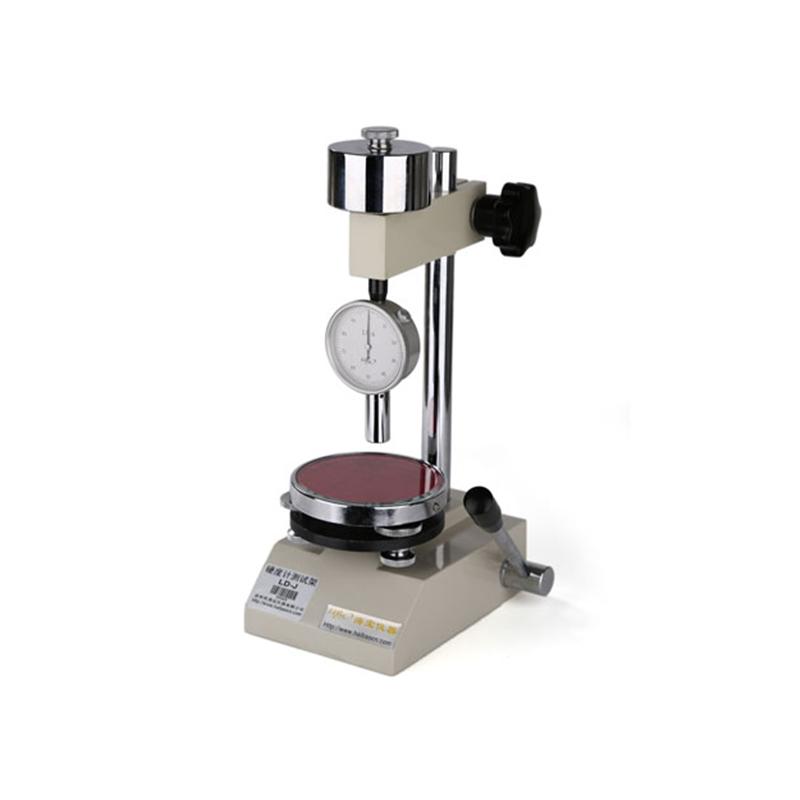

Haibao LAC-J Shore Hardness Tester supporting Shore Hardness Tester display


FAQ
QCan the Soft Sugar Hardness with an outer diameter of 23X3.5mm be measured? The test sample is EPDM, Hardness 70
A This cannot be measured. The wall thickness is 3.5mm, and the size of the sample does not meet the testing specifications. You can take the reference value for fixed-point testing. The national standard requires that the cross section and thickness of the sample be up to 5mm, but the actual test part is indeed impossible to achieve. If in this case, you can only fix the point (try to take the value of the same position angle) and take the reference value, 3.5mm is basically OK, and the accuracy error will not be very large
QExcuse me, if the Shore Shore Durometer is not used with a bracket, will the handheld measurement affect the Measuring accuracy?
A The relative data of the bracket test will be more stable, and certain human errors can be avoided. Handheld measurement is also possible if the staff operates normally.
QShore hardness tester bracket round table is what material?
A Hello, the platform of Haibao's Shore hardness tester bracket is made of tempered Glass.
