Portable Thermohygrometer HW100 Hypertherm, High Performance Humidity Sensors
SE
HW100
HBO HW100 ThermohygrometerSPEC
HBO HW100 ThermohygrometerDetails

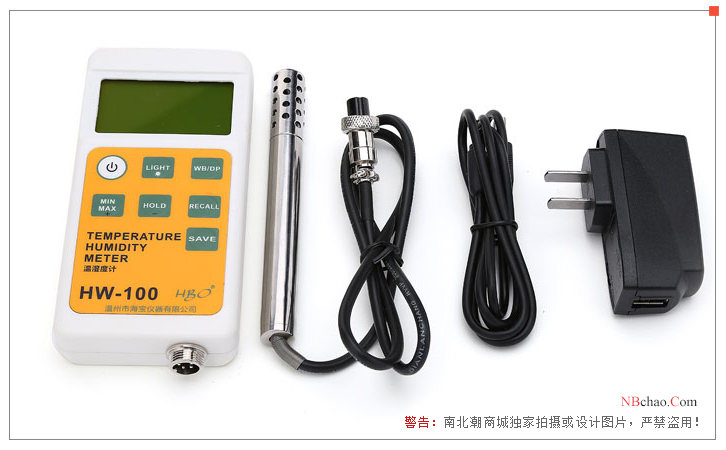

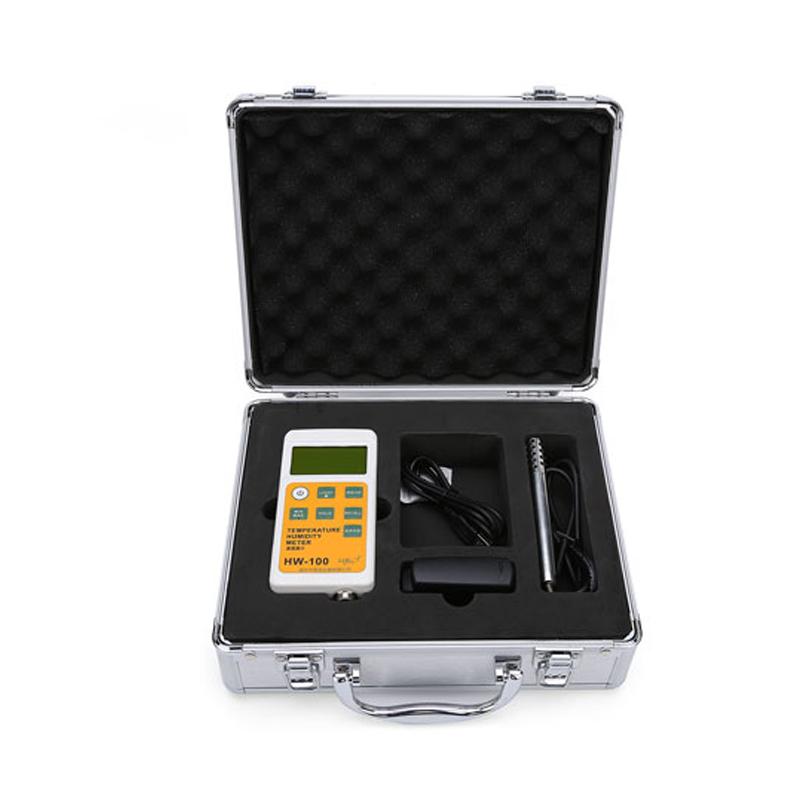

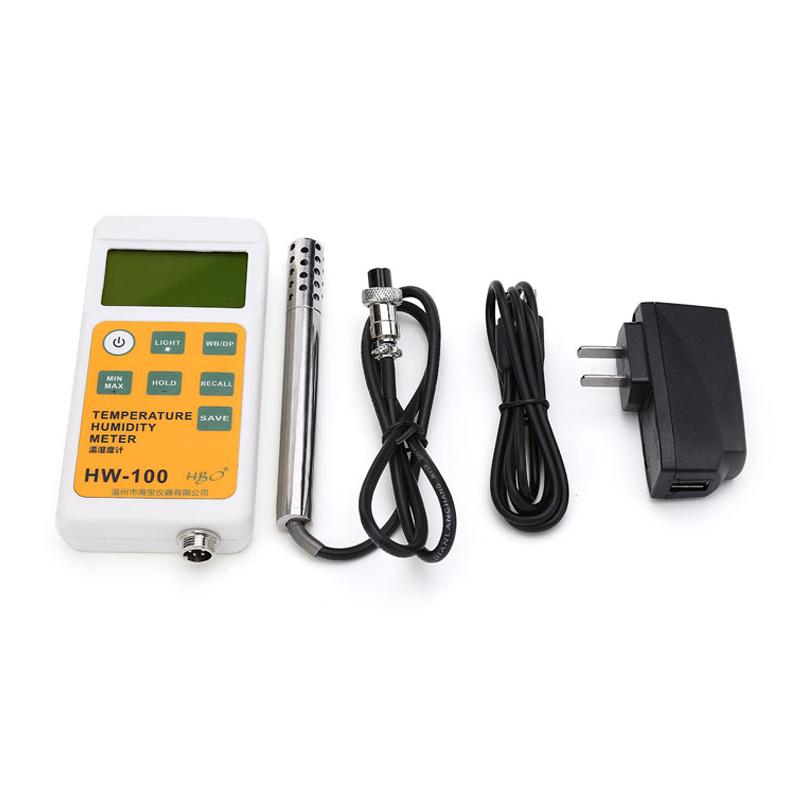

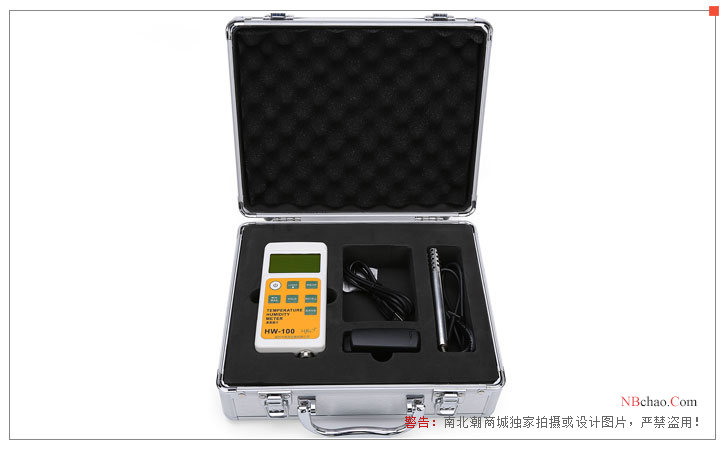

HBO HW100 ThermohygrometerPacking list
- SKU
- NB001398
- temperature range
- -40~125℃
- temperature error
- +/- 0.2 ℃ -40~125 ℃ +/- 0.4 ℃ 50~131 ° F ( +/- 0.4 ° F -40~257 ° F +/- 0.8 ° F)
- Temperature Resolution
- 0.1℃/0.2℉
- Humidity range
- 0~99.9%RH
- Humidity error
- ±2.0%(10 ~ 90%) @25℃ ±3.0% (<10，>90%) @25℃
- Humidity resolution
- 0.1%
- Sensor type
- Temperature sensor: Semiconductor; Humidity Sensors: Electronic capacitive polymer film
- Sensors location
- external
- statistical function
- MIN Minimum, MAX Maximum, Average
- Data storage
- 99 sets of data
- Interface
- USB
- unit conversion
- ℃/℉
- Power Supply
- Built-in lithium battery
- Dimension
- 130* 65*20mm
- Weight
- 190G (including battery)
- Operating temperature
- Temperature -20 to 60 ℃; Humidity 0 to 55 ℃
- companion software
- without
- Response time
- Up to 30 seconds
- Sensors lag
- ±0.3 % RH
- Humidity drift
- < 0.5%/year
- Wet-bulb temperature range
- -20 to 60 ℃ (-4 to 140 ° F)
- Dew point range
- -50~60℃
- Battery life
- 200 hours
- Storage environment
- -20 to 60 ℃ Relative Humidity (RH) below 80% (remove battery)
Introduction
Hypertherm HW100 Portable Thermohygrometer is a temperature and humidity meter that integrates temperature testing and humidity testing, using high-performance sensors, including capacitive polymer thin film humidity sensors and semiconductor temperature sensors, with high measurement accuracy, high resolution, and multiple functions.HW100Portable thermohygrometers are digital thermohygrometers with an LCD screen, white backlight and the ability to freely switch between Celsius and Fahrenheit test units.
Applications
HW100Portable thermohygrometers are used for temperature and humidity testing in various other fields, such as thermal comfort research, indoor air quality evaluation, verification of HVAC system operation in buildings, maintenance of heating and cooling systems, monitoring the operation of air conditioning systems during product production, and other fields.
Features
◆ High precision, high resolution, high stability;
◆ Dot matrix LCD display, white backlight screen;
◆ Two units, °C, °F can be switched freely, and automatically memorized after shutdown;
◆ Three kinds of temperature, wet bulb temperature, dew point temperature, dry bulb temperature (ambient temperature) can be switched freely, and it will be automatically remembered after shutdown;
◆ Min Max Record;
◆ APO function of automatic shutdown without operation (10 minutes);
◆ Manual data saving and retrieval;
◆ Store 99 test data, and automatically calculate the average, maximum and minimum value of the stored data;
◆ USB connection function, rechargeable, communication.
Keyboard instructions
1. Power button: power switch, presspower supplykeyHW100Portable thermohygrometerEnter the measurement interface.
2. HOLD: Enable/disable data holding.
3. MAX/MIN: short press - turn on minimum, maximum and average value recording, long press - exit to real-time.
4. Test mode.
5. LIGHT button: turn on/off the backlight
6. RECALL key: read the saved data
7. WB/DP: Short press to switch between wet bulb temperature, dew point temperature, dry bulb temperature (ambient temperature), long press to switch °C/°F.
8. SAVE key: save the current data

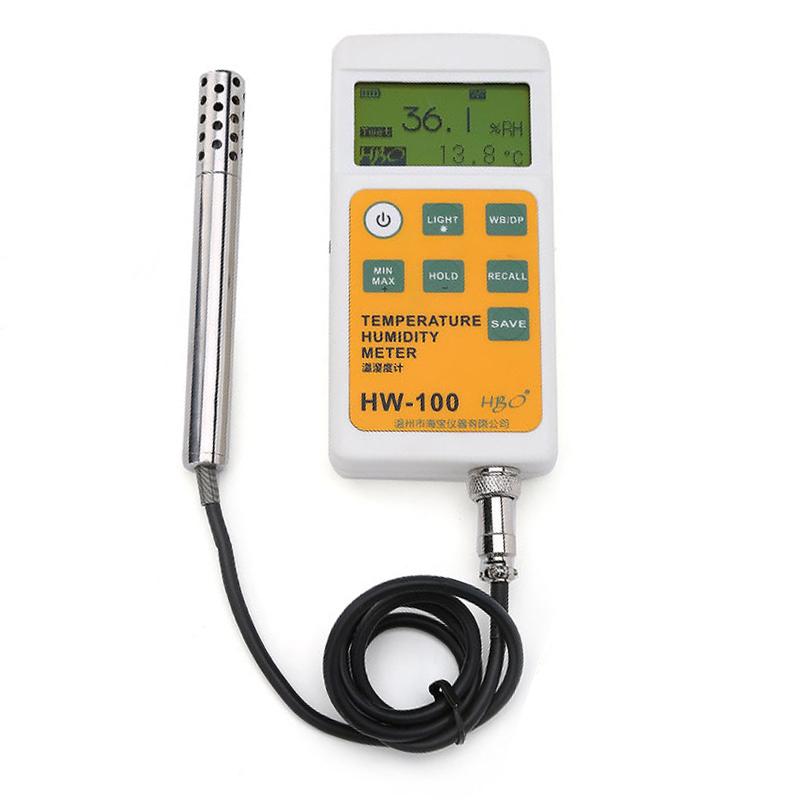

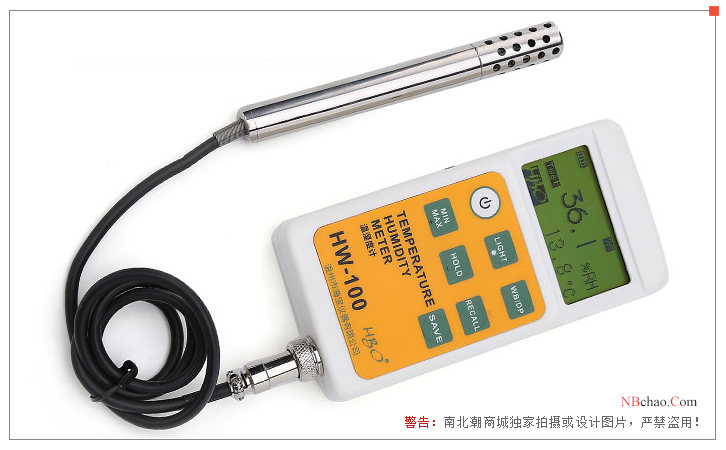

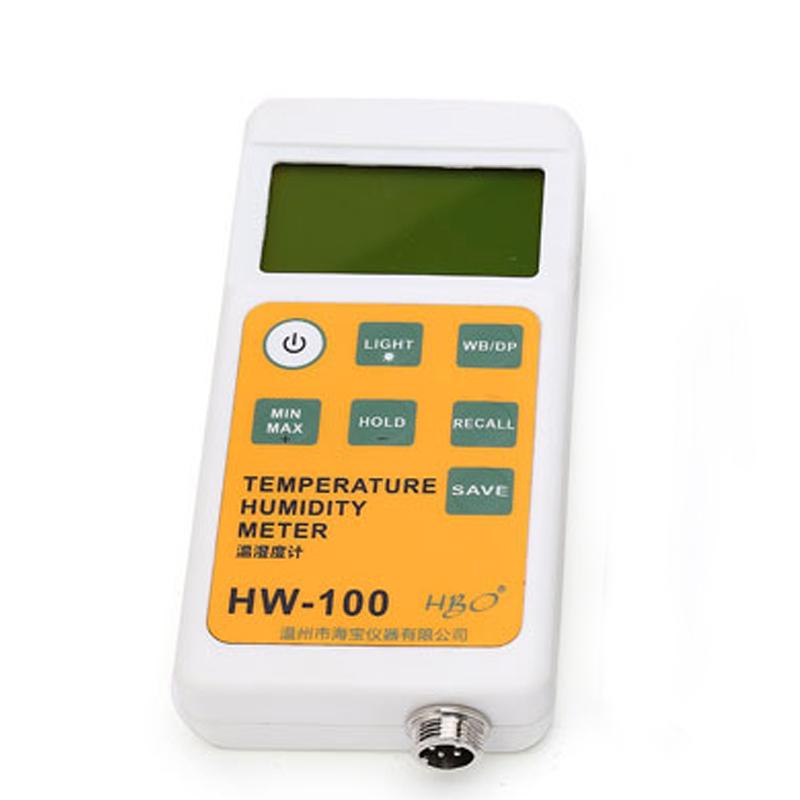

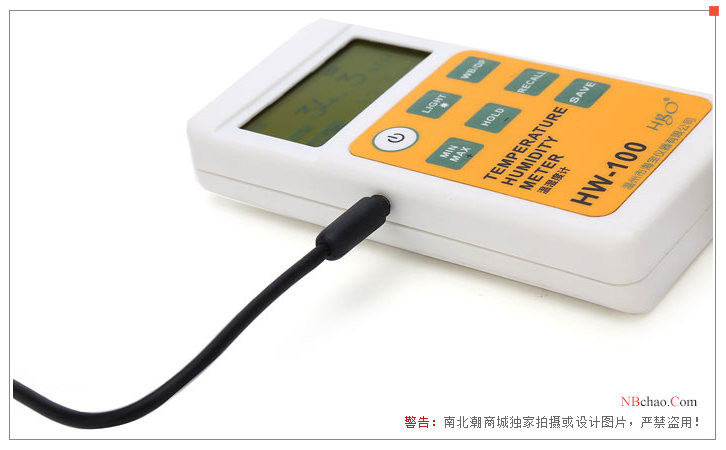

Actual picture of the product
