High-precision Humidity Recorder HW200 Hypertherm, three temperatures can be switched freely

HW200

Temperature and Humidity Recorder

Temperature range -40~125 ℃, Humidity range 0~99.9% RH, electronic capacitive polymer film, Sensors position external type, statistical functions MIN Minimum, MAX Maximum, average value, Data storage 8000 sets of data, Interface USB, unit conversion ℃/F, power supply built-in lithium battery.

product description

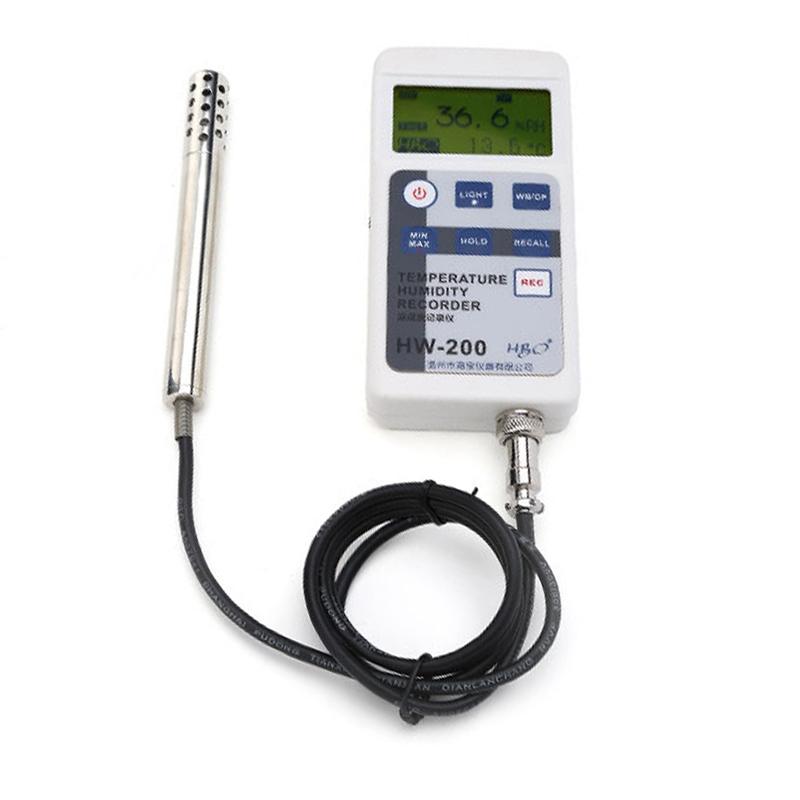

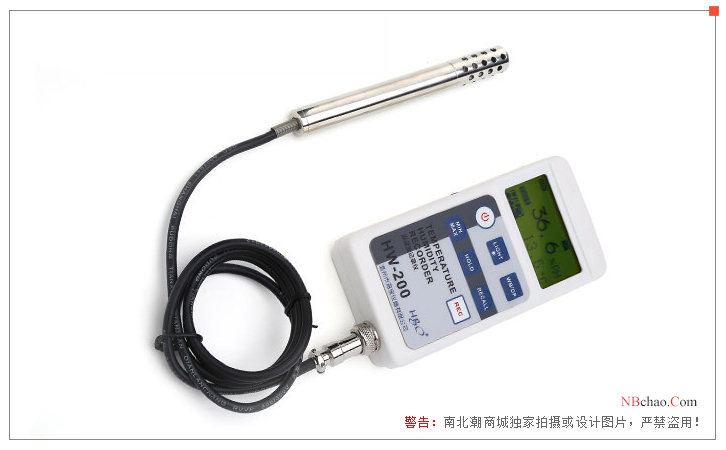

HW200 high - precision temperature and humidity Recorder is a HW series digital display temperature and humidity Recorder produced by Haibao Instruments. The capacitive polymer film humidity sensor and semiconductor temperature sensor have the functions of temperature compensation and nonlinear correction, which makes the measurement stability and accuracy of the HW200 high-precision temperature and humidity Recorder better. It has the characteristics of small size and convenient portability. It is suitable for testing temperature and humidity in various laboratories or outdoor occasions.

Features

1) It can store 8000 sets of test data, and can automatically calculate the average value, maximum value and minimum value of the stored data;

2) With USB connection function, it can be charged and communicated;

3) Connect to the host computer to perform operations such as reading, storing, analyzing, and printing real-time data.

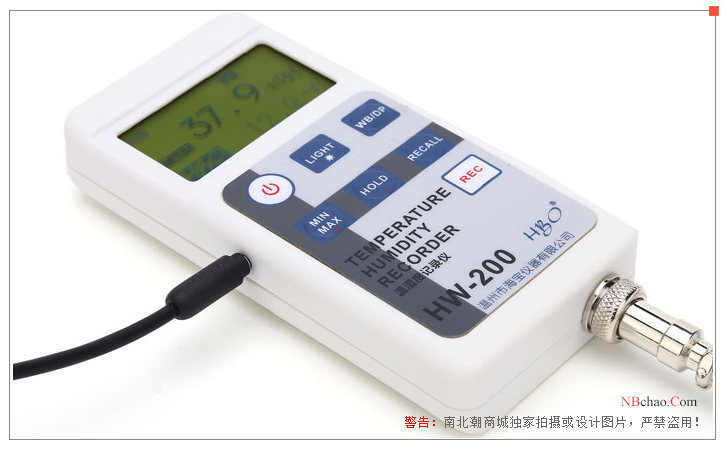

4) HW200 high-precision temperature and humidity Recorder adopts dot-matrix liquid crystal display and white backlight screen;

5) Two units, ℃ and ℉ can be switched freely, and automatically memorized after shutdown;

6) Three kinds of temperature, free switch between wet bulb temperature, dew point temperature and dry bulb temperature (environmental temperature), and automatically memorize after shutdown;

7) APO function of automatic shutdown without operation (10 minutes);

8) Min Max Record (minimum maximum value record);

9) The data is automatically saved and recalled, and the collection interval can be set;

10) High precision, high resolution, high stability.

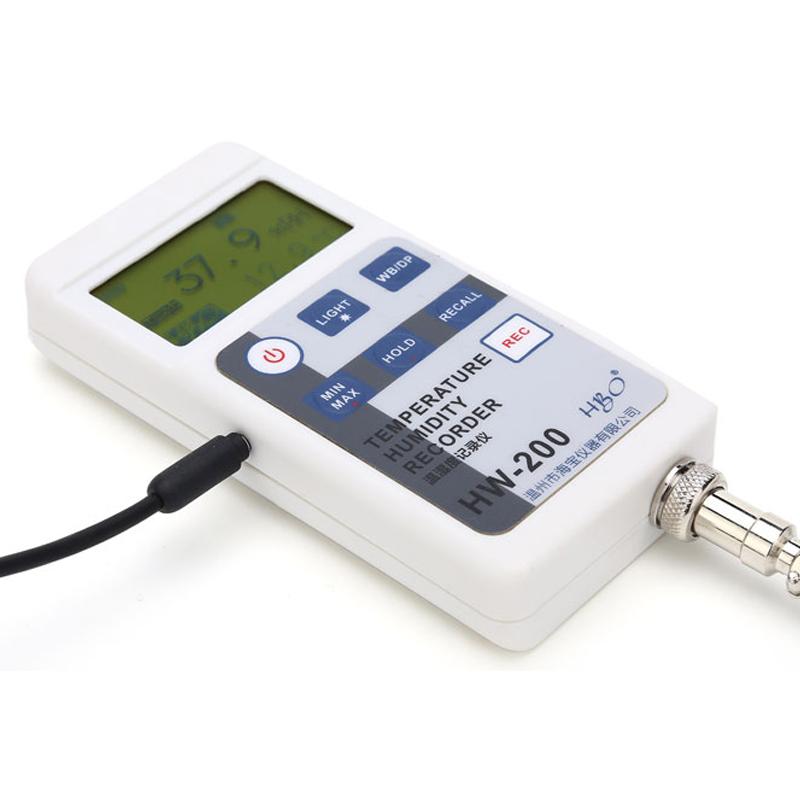

Description of function keys

● HOLD: Turn on/off data hold, and reduce the recording interval time in HW200 recording mode.

● MAX/MIN: short press - open minimum, maximum, average value records, long press - exit to real time

● Test mode: In the recording mode of the HW200 high-precision temperature and humidity Recorder , increase the recording interval.

● LIGHT key: turn on/off the backlight

● RECALL key: read saved data

● WB/DP: short press - switch between wet bulb temperature, dew point temperature, dry bulb temperature (ambient temperature), long press - switch ℃/℉

● REC key: Turn on/off the recording function

Switching method

Press the ON/OFF button, the HW200 high-precision temperature and humidity Recorder will display the instrument model and software version number after self-inspection, and then enter the normal test interface, and the instrument data will be updated every 2 seconds;

In the power-on state, press the ON/OFF button to turn off the power and stop data collection under any circumstances . If the HW200 high-precision temperature and humidity Recorder is charging, the screen can still display the charging progress.

Pictures

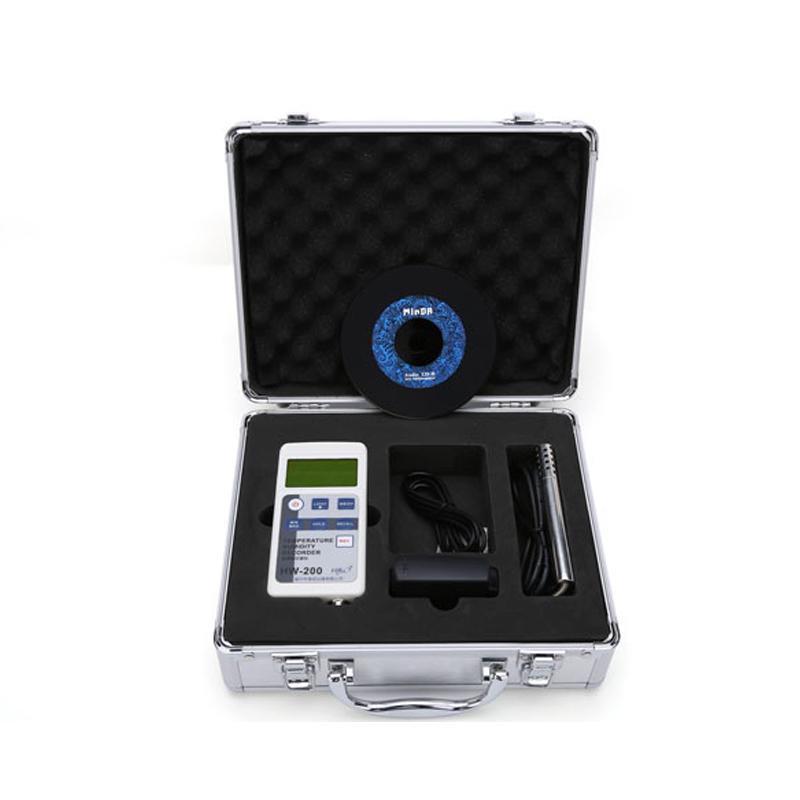

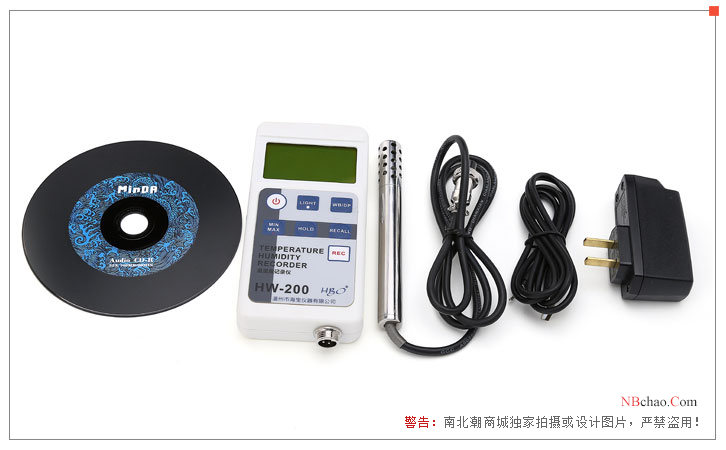

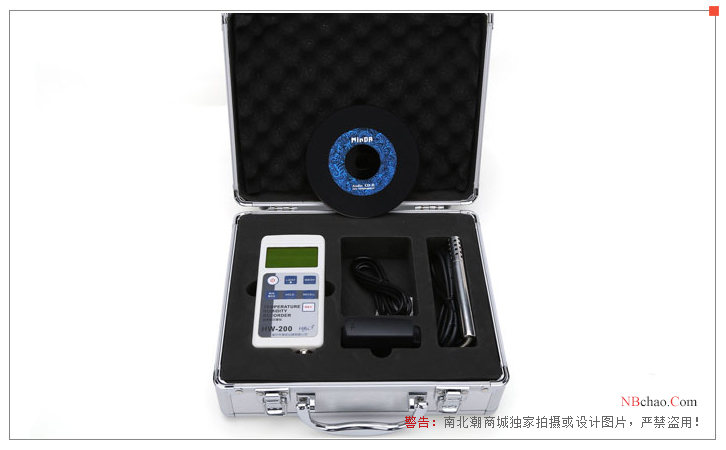

Packing list：host x1, probe x1, certificate x1, manual x1, instrument case x1.

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
