China

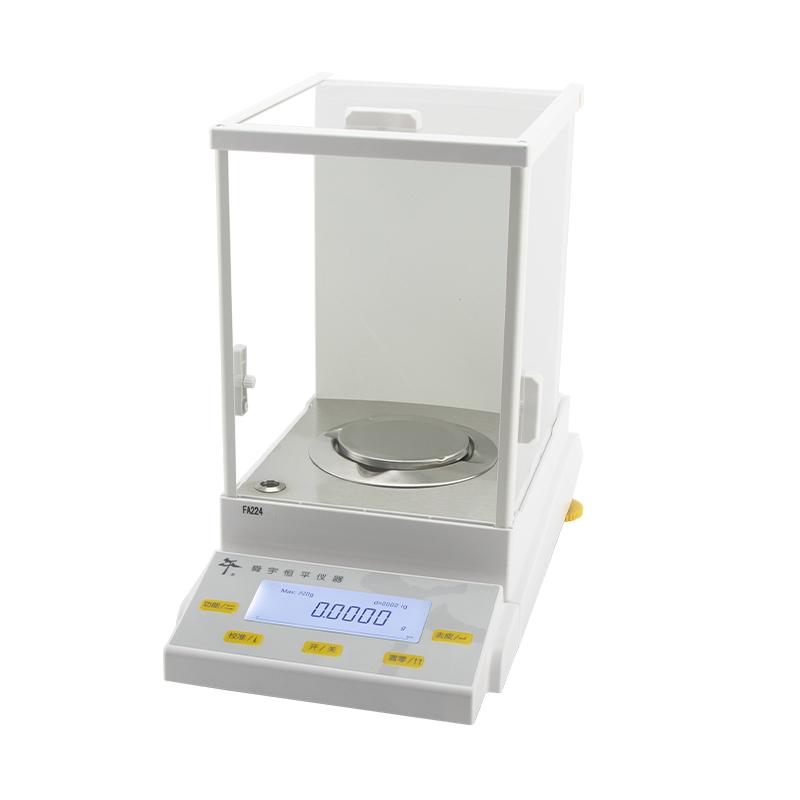

SDPTOP FA224 Electronic Analytical Balance 220g//0.1mg

SE
Weighing range 220, Readability 0.1mg, Repeatability Error +/- 0.1mg, Linearity +/- 0.2mg, test weight value 200g, Calibration method External calibrated, Pan Size φ 90mm, Output interface RS232
$556.00/set
PromotionLoading...
Coupon
Model:
Certificate

SDPTOP FA224 Electronic Analytical BalanceSPEC

SDPTOP FA224 Electronic Analytical BalanceDetails

SDPTOP FA224 Electronic Analytical BalancePacking list

SKU
NB013994
Weighing range
220
Readability
0.1mg
Repeatability Error
±0.1mg
Linearity
±0.2mg
Test Weight
200g
Calibration method
Externally calibrated
Pan Size
Φ90mm
output interface
RS232
Power Supply
220V/50Hz、110V/60Hz
power consumption
12W
Net Weight
5.5kg
Gross Weight
7.5kg
effective Volume of wind hood
165*150*200mm
Balance Dimensions
365*223*338mm
Encasement Dimensions
500*310*450mm
operating relative temperature
5℃~40℃
Relative Humidity
≤85%
FA224
Electronic Analytical Balance
Weighing range 220, Readability 0.1mg, Repeatability Error +/- 0.1mg, Linearity +/- 0.2mg, test weight value 200g, Calibration method External calibrated, Pan Size φ 90mm, Output interface RS232
SDPTOP FA224 Electronic Analytical Balance 220g//0.1mg Picture

Features

●Easy to operate, clear liquid crystal display;

●ABS engineering plastics with good corrosion resistance and impact resistance are used to ensure that the balance structure is light and strong;

●Built-in lower weighed hook, overload protection weighing pan, air flow Wind Shield and display screen protective cover under the weighing pan;

●Provides additional protection against dust and scratches to extend the life of the balance;

●It has a glass door transport protection lock, a fully transparent glass Wind Shield on all sides, and an aluminum alloy backplate;

●Full range of tareping, four-level shockproof, adjustable weighing speed;

●All-aluminum balance base prevents low-frequency vibration and makes the body more stable;

●Piecework, percentage weighing;

●Automatic zero tracking adjustable, super overload protection;

●Automatic fault diagnosis;

● Multiple unit conversions.

ModelFA1004FA1104FA124FA1604FA2004FA2104FA224FA324FA2104S
Weighing range (g)10011012016020021022032060/210
Readability (mg)0.10.1/1
Repeatability (mg)±0.1±0.1/ ±1
Linearity(mg)±0.2±0.2/ ±2
Calibrate the weight value100g200g300g200g
Calibration methodExternal calibration
Weighing pan sizeΦ90mm
Output interfaceRS232
power supply220V/50Hz、110V/60Hz
power consumption12W
Effective volume of Wind Shield165x150x200mm
